OPERATION
27
Problem
The motor has been removed when the vanes were tilted and is hard to
reattach.
Solution

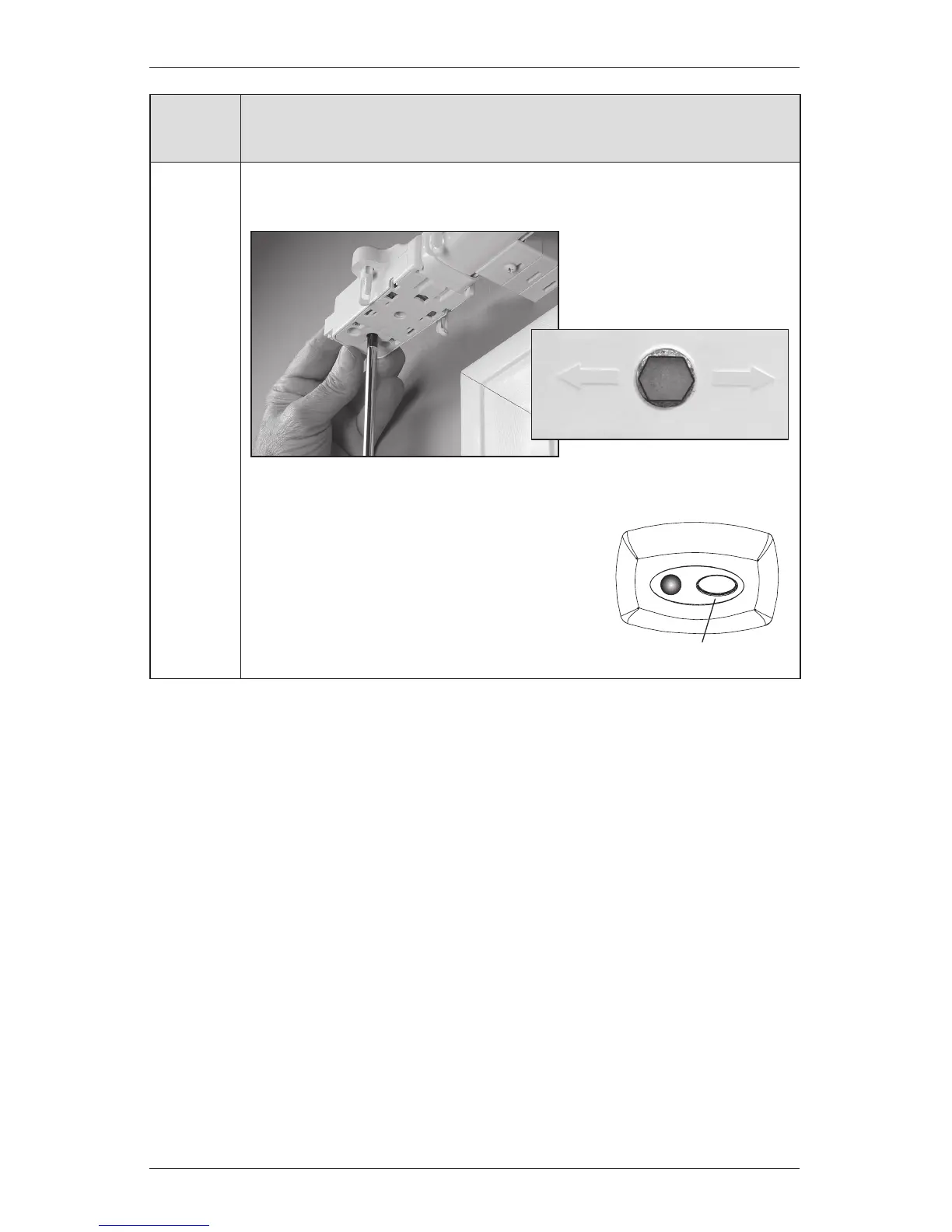

Align the tilt gear with the arrows. This will put all the vanes perpendicular to
the rail. See “Attach the Motor Assembly” on page 15.
Plug the DC power supply and the satellite eye to the motor you want to attach.
Press the manual button on the satellite eye. The
tilt gear will center and the traverse gear will spin.
Press the button again to stop the traverse gear.
Attach the motor. If there is any resistance, move
the carriers away from the motor a little. The
motor should now attach easily.
