Installation Overview
To install your blind, you will need to perform the following three steps:
STEP 1: Install the Brackets
STEP 2: Connect the Power Cable
STEP 3: Install the Blind
STEP 4: Connect the Power Source, If Applicable
STEP 1 — Install the Brackets
Two end brackets are used to mount horizontal blinds. Wider blinds also require one or
two intermediate brackets, as shown in the tables below.
PowerView Motorization Operating System
SimpleLift
™
with PowerView Motorization Operating System

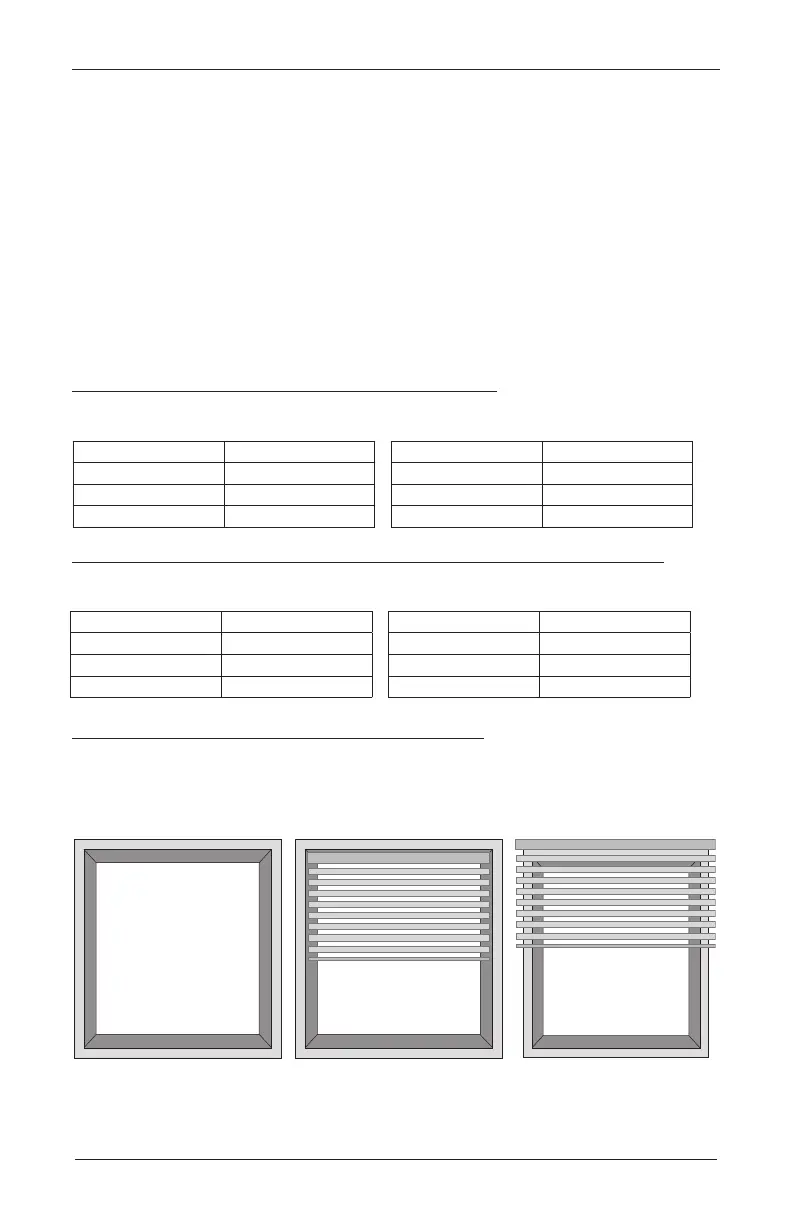

Mounting Types and Window Terminology
If the installation brackets are mounted correctly, the rest of the installation process follows
easily. To prepare for this important first step, review the mounting types and basic window
terminology illustrated below.
Refer to the appropriate page below based on your order:
Inside or Ceiling Mount — Page 5
Outside Mount — Page 7
Width of Blind Intermediate Brackets
Up to 48" 0
48
1
⁄
8
" – 60" 1
60
1
⁄
8
" – 96" 2
Width of Blind Intermediate Brackets
Up to 48" 0
48
1
⁄
8
" – 96" 1
96
1
⁄
8
" – 144" 2
2" Aluminum Blinds
1
3
⁄
8
", 2", and 2
1
⁄
2
" Wood Blinds
2" and 2
1
⁄
2
" Alternative Wood Blinds
Outside Mount
Blind mounts
outside window
opening.
Inside Mount
Blind fits within
window opening.
Collectively, the sill and
jambs are called the
“window casement.”
Head Jamb
Sill
Jamb Jamb
Width of Blind Intermediate Brackets
Up to 48" 0
48
1
⁄
8
" – 60" 1
60
1
⁄
8
" – 96" 2
Width of Blind Intermediate Brackets
Up to 48" 0
48
1
⁄
8
" – 96" 1
96
1
⁄
8
" – 120" 2
2" Aluminum Blinds
1
3
⁄
8
", 2", and 2
1
⁄
2
" Wood Blinds
2" and 2
1
⁄
2
" Alternative Wood Blinds
To Next Page
