INSTALLATION
10
STEP 2 — Connect the Power Cable
NOTE: When power is connected to the motor, a green LED inside the programming button
housing will flash to indicate the blind is ready for operation.
Refer to the appropriate page based on your order.
For a battery wand, see below.
For a satellite battery wand, see page 15.
For an optional 18V DC power supply, see page 16.
For an optional 18V DC power supply with daisy-chain connections, see page 17.
For an optional Large DC power supply, see the instructions that came with the power
supply.
For an optional C-size satellite battery wand, see the instructions that came with
the wand.
Plug the Power Cable into the Battery Wand
Inside of the headrail: Connect the power cable (coming from the motor) into the socket
on the battery wand.
Place the Battery Wand Inside the Headrail
From the top of the headrail: Place the battery wand inside the headrail in a location
where it will not interfere with the operation of the blind. Position its smooth, curved side
toward the tiltrod.
Carefully tuck excess wire into the headrail. Be sure to avoid interference with internal
headrail mechanisms.
Proceed to “STEP 3 — Install the Blind” on page 11.

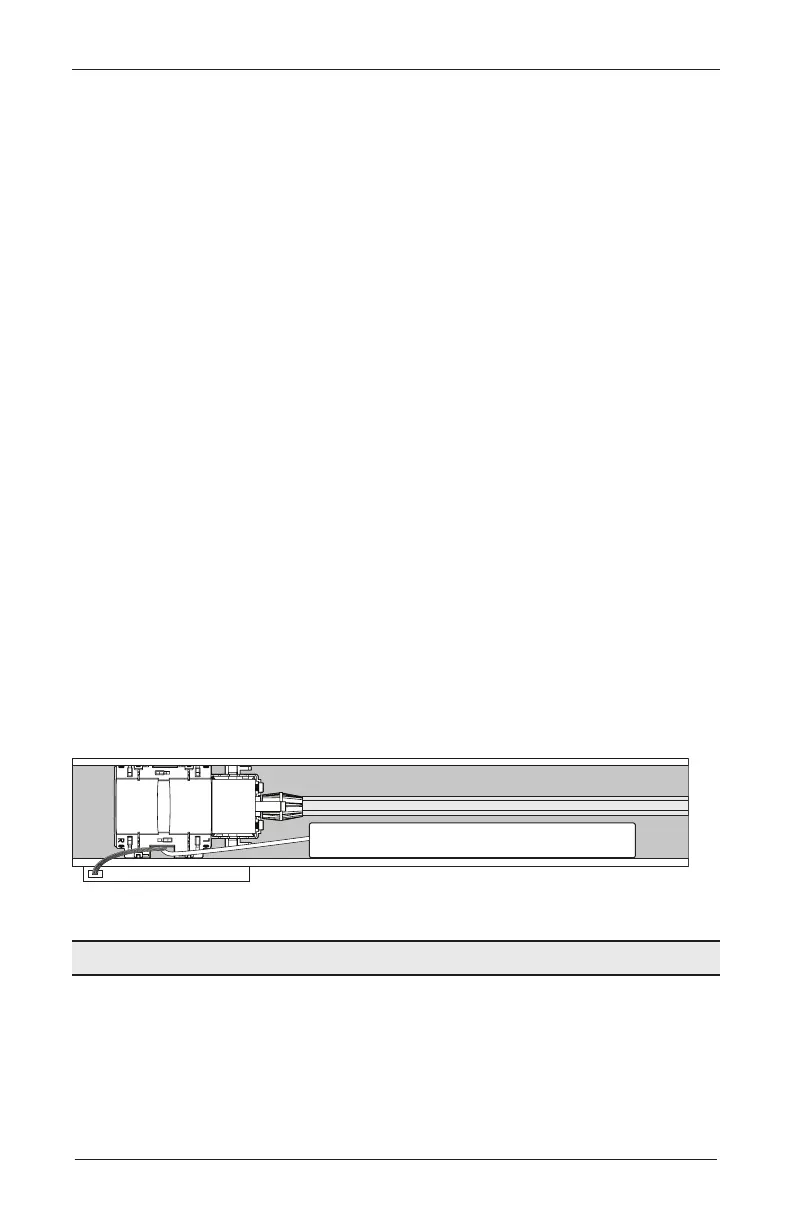

Tiltrod
Back of Headrail – Overhead View
Transceiver
Assembly
Battery Wand
