UPPER SNAPRING REMOVAL  G900 SERIES
Prior to removal of the upper snap-ring assembly, the rubberized logo cap must be removed and
the riser assembly must be pressed below the snap-ring’s rubberized seal. If the procedure below
is not followed, the upper snap-ring assembly cannot be removed from the G900 Series rotors:

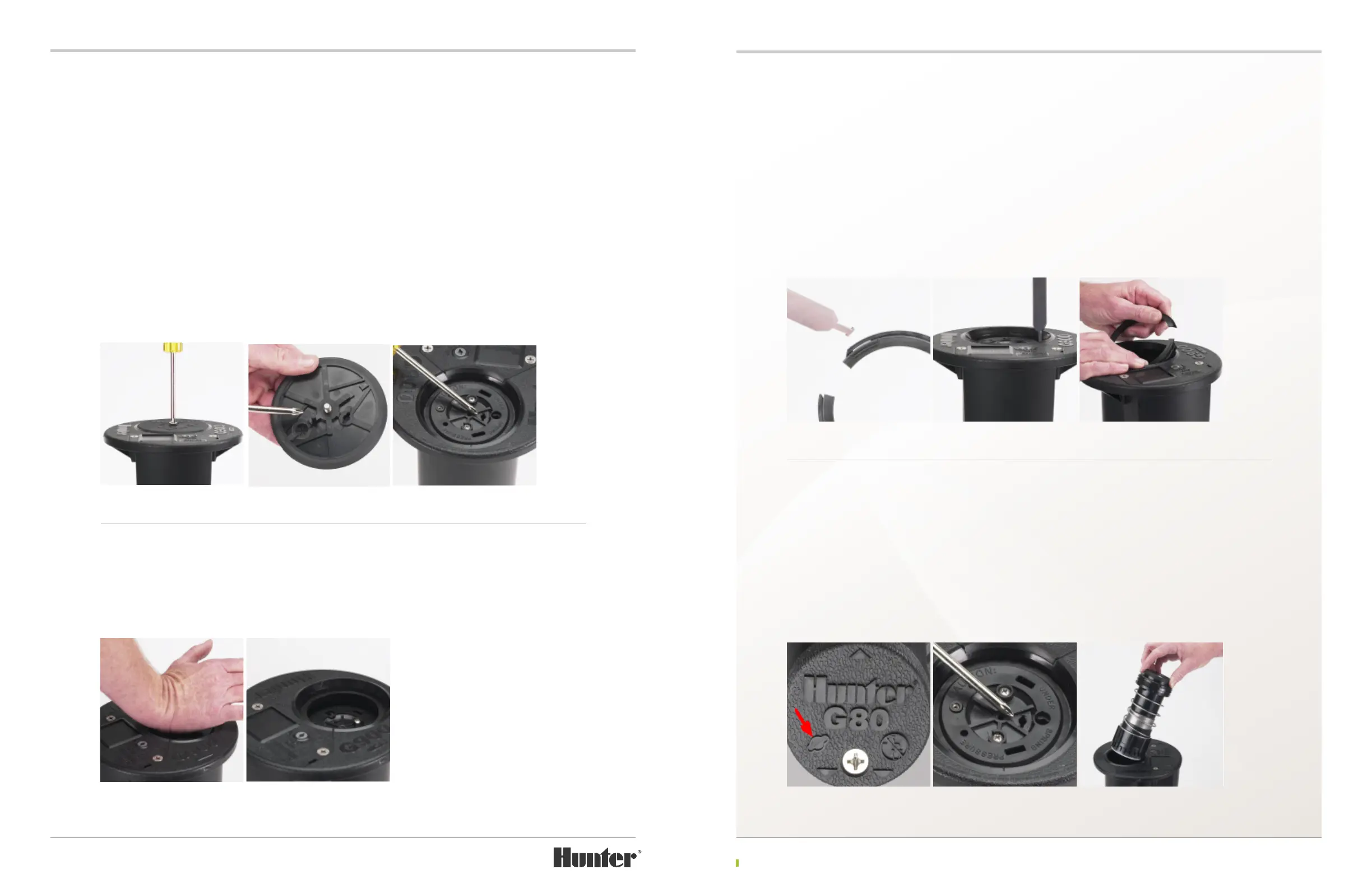

Remove the stainless screw from the center of the rubberized logo cap using a Phillips screwdriver
(FIGURE 10). Prior to removing the rubberized logo cap, note that the arrows on the logo indicate
the position of the nozzles on the riser assembly. As the rubberized logo cap is removed, note
there is a protruding pin on the underside of the logo cap (FIGURE 11). This pin is the alignment
feature on the rubberized logo cap that must be inserted correctly during assembly in order for
the arrows on the rubberized logo cap to be positioned over the nozzles below. Note which hole
the pin ts into on top of the riser (FIGURE 12). Also note that the pin and hole locations are
dierent for the G90 and G95 risers.
Once the rubberized logo cap is removed, use the heel on the palm of your hand to forcefully press
the riser assembly down (FIGURE 13) and below the rubberized wiper seal on the snap-ring assembly
(FIGURE 14). When the rotor is dry (without water within) more force is required. If sprinkler is
installed and has been activated, the water acts to lubricate the wiper, making the procedure
much easier.
Learn more. Visit hunterindustries.com/golf
UPPER SNAPRING REMOVAL I TABLE OF CONTENTS
To remove the snap-ring assembly, hold Snap-
ring Tool vertical over the rotor’s upper snap-
ring area. Align the metal end of the snap-ring
tool to the indicator on the snap-ring’s rubberized
wiper seal (FIGURE 15). Use the palm of the
other hand to drive the tool downward &
through the rubberized membrane (FIGURE 16).
Tool should penetrate about ¼ inch into the snap-
ring assembly. While holding the tool within the
snap-ring, press the tool’s handle downward and
away from the center of the rotor. As the tool is
pressed downward, the snap-ring will li from
the rotor. While using the tool to hold the snap-
ring in this elevated position, use the other hand
to pull the snap-ring from the rotor (FIGURE 17).
If the snap-ring’s rubberized wiper seal appears
to be the only part that is liing, the tool has not
penetrated into the snap-ring far enough.




