Hunter SRR - Extending Wiring on SmartPort Harness

10
Use shielded cable to connect the SmartPort to the
controller if installing the connector more than 2
meters of wiring length from the controller. The
use of shielded cable will eliminate the potential for
radio interference by preventing the wire as acting
as an antenna. At no time should the SmartPort
be installed more than 15 meters away from the
controller.
For easiest installation, order a Hunter SRS-SCWH
SmartPort wiring harness with a full 7.6 meters of
shielded cable.

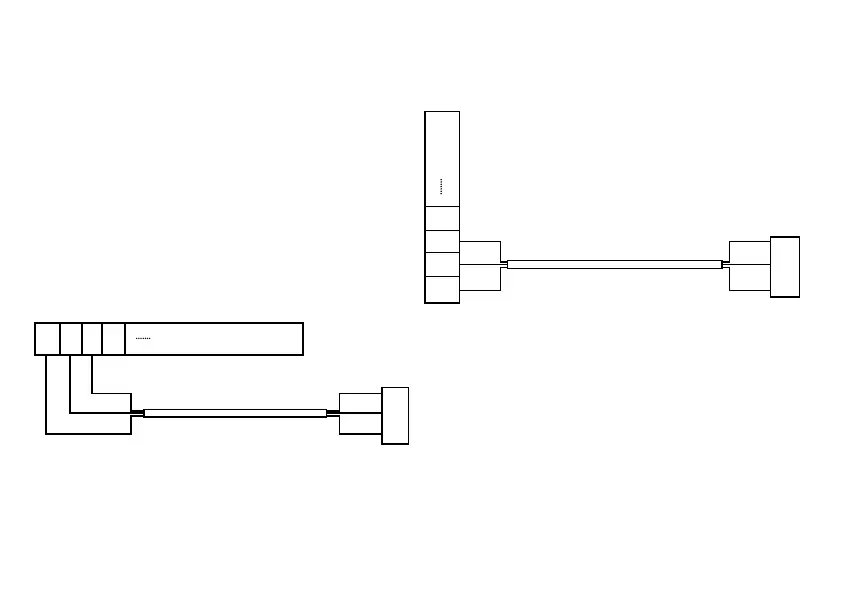

HUNTER SRR-SCWH
WIRING HARNESS
SRC TERMINAL BLOCK
BLUE
WHITE
RED
BLUE
WHITE
RED
AC AC R RS
HUNTER SRR-SCWH WIRING HARNESS
BLUE
WHITE
RED
ICC TERMINAL BLOCK
BLUE
WHITE
RED
AC
AC
R
RS
EXTENDING WIRING ON SmartPort
®
HARNESS .........................
