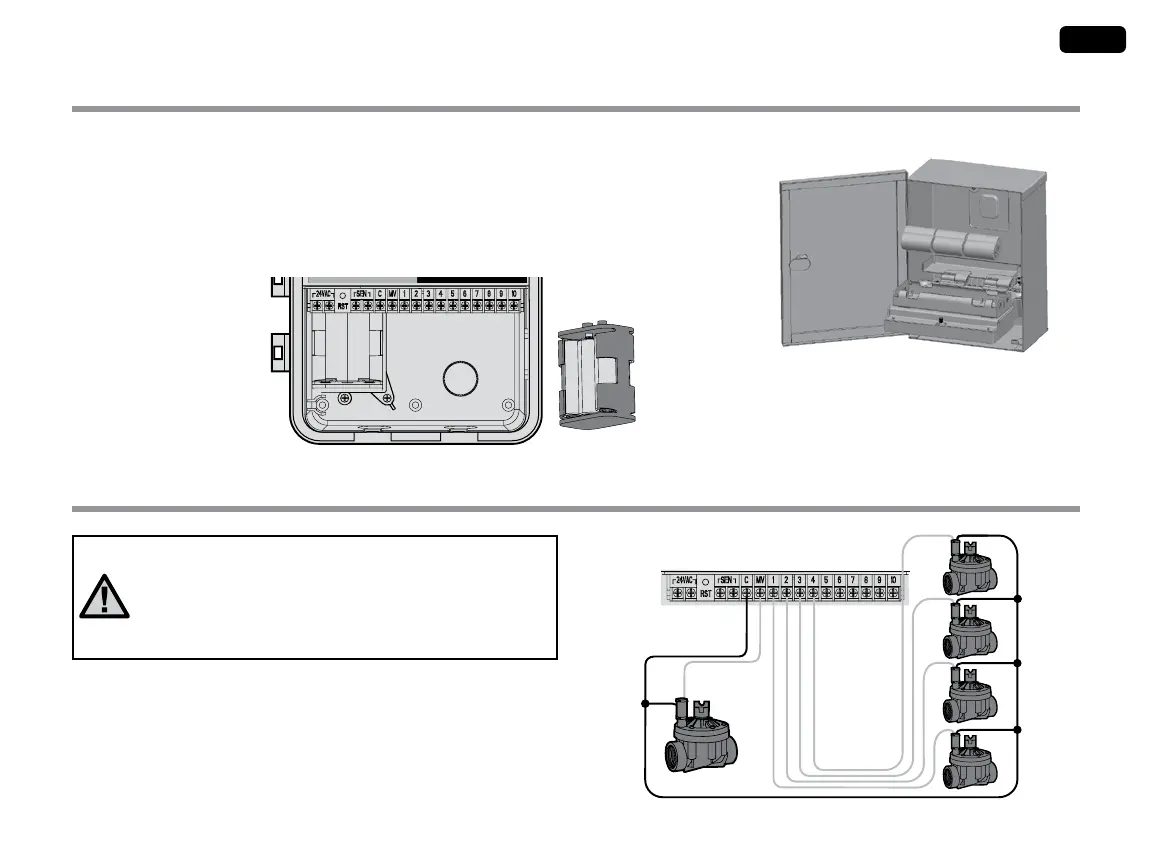

Battery Install
The XC Hybrid operates on six AA alkaline batteries, and the XC Hybrid Stainless uses
six C batteries. A battery carrier is supplied with your controller. Insert the batteries
as indicated on the battery carrier. Connect that battery connector inside the access
compartment to the battery carrier and insert the carrier into the lower left side of the
controller as shown. To access battery carrier on the XC Hybrid Stainless, remove the
screw in the top center of the controller and swing the facepack down as shown.
CONNECTING A MASTER VALVE
NOTE: Complete this section only if you have a
master valve installed in your irrigation system. A
master valve is a “normally closed” valve installed
at the supply point of the main line "that" opens
only when the controller initiates a watering
program.
1. At the Master Valve, attach the common wire to the black
solenoid wire of the valve. Attach a separate control wire to
the remaining red solenoid wire.
2. The common wire should be attached to the C terminal
inside the controller. The other wire coming from the master
valve should be attached to the MV terminal inside the
controller. Tighten each terminal screw.
V alve Common Wire
V alve 1
Va l ve 2
V alve 3
V alve 4
V alve
Wire s
Master V alve
Master Valve Wire
(Black Lead)
(Red Lead)
To Next Page
