INSTALLATION
10
➤ For extension bracket installation, you may cut off any unneeded length (before
mounting) at indentations stamped into the brackets between each set of holes. Each
two-hole section is
1
/ 2 " in length.
IMPORTANT: For proper operation, the SofTrak
™
headrail must be mounted level. Use
a laser level to check that the spacer blocks or extension brackets are level and aligned.
Shim the brackets if necessary. The brackets may also need to be shimmed if the mounting
surface is heavily textured.
To Shim the Brackets:
➤ Loosen the installation screws securing
the spacer block or extension bracket.
➤ Insert one or more shims between the
spacer block or extension bracket and
the mounting surface. Tighten the
installation screws.
Finish Bracket Assembly
Spacer Blocks
■ Add any additional spacer blocks required.
IMPORTANT: A maximum of four spacer blocks
can be used.
■ Hook the top of the faceplate to the front spacer
block and snap it into place.
Level and Aligned
Level and Aligned
Loosen
Mounting
Screws
Insert
Shim(s)
1
2
1
2

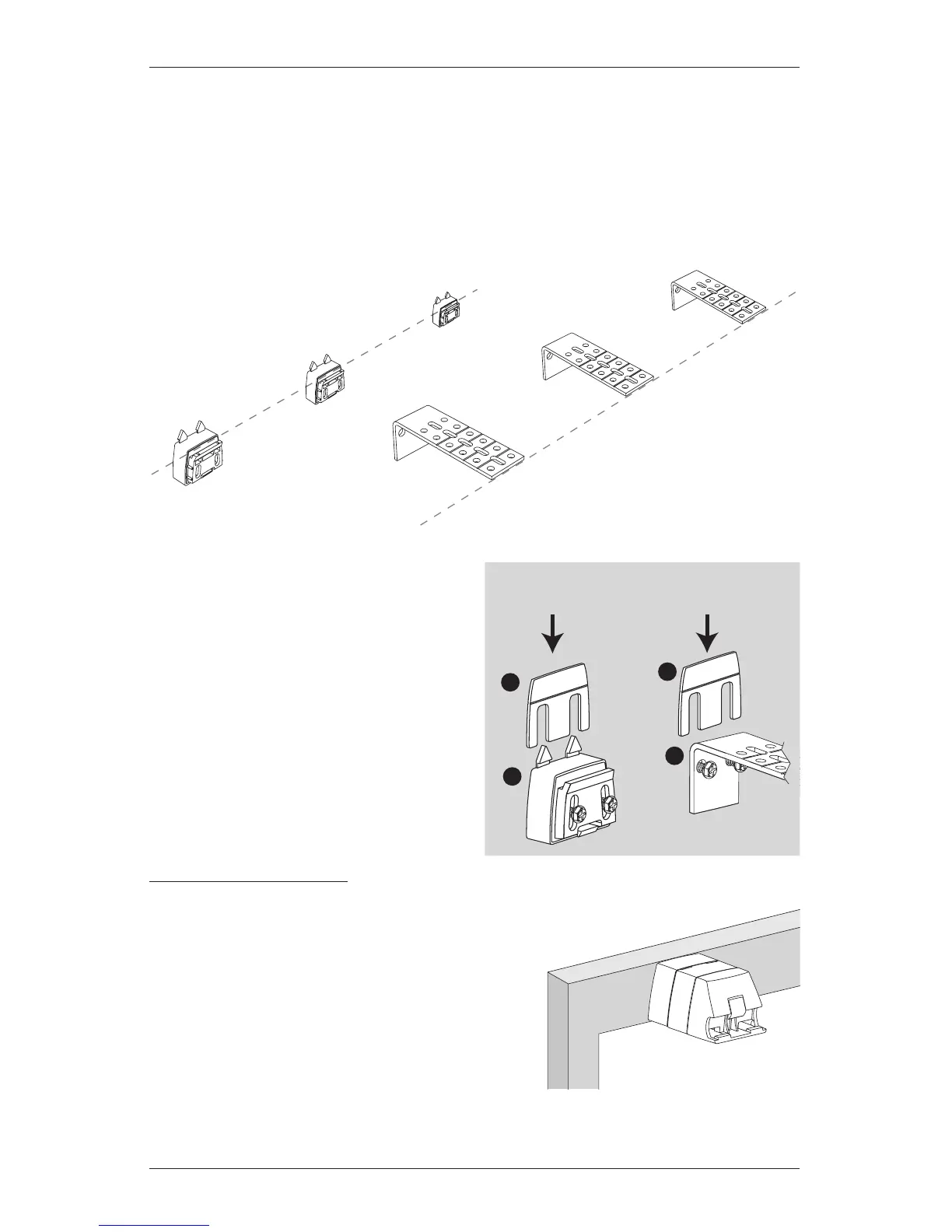

To Shim
Installation Bracket
To Shim
Extension Bracket
Faceplate
