INSTALLATION
14
Connect PowerView
™
Components

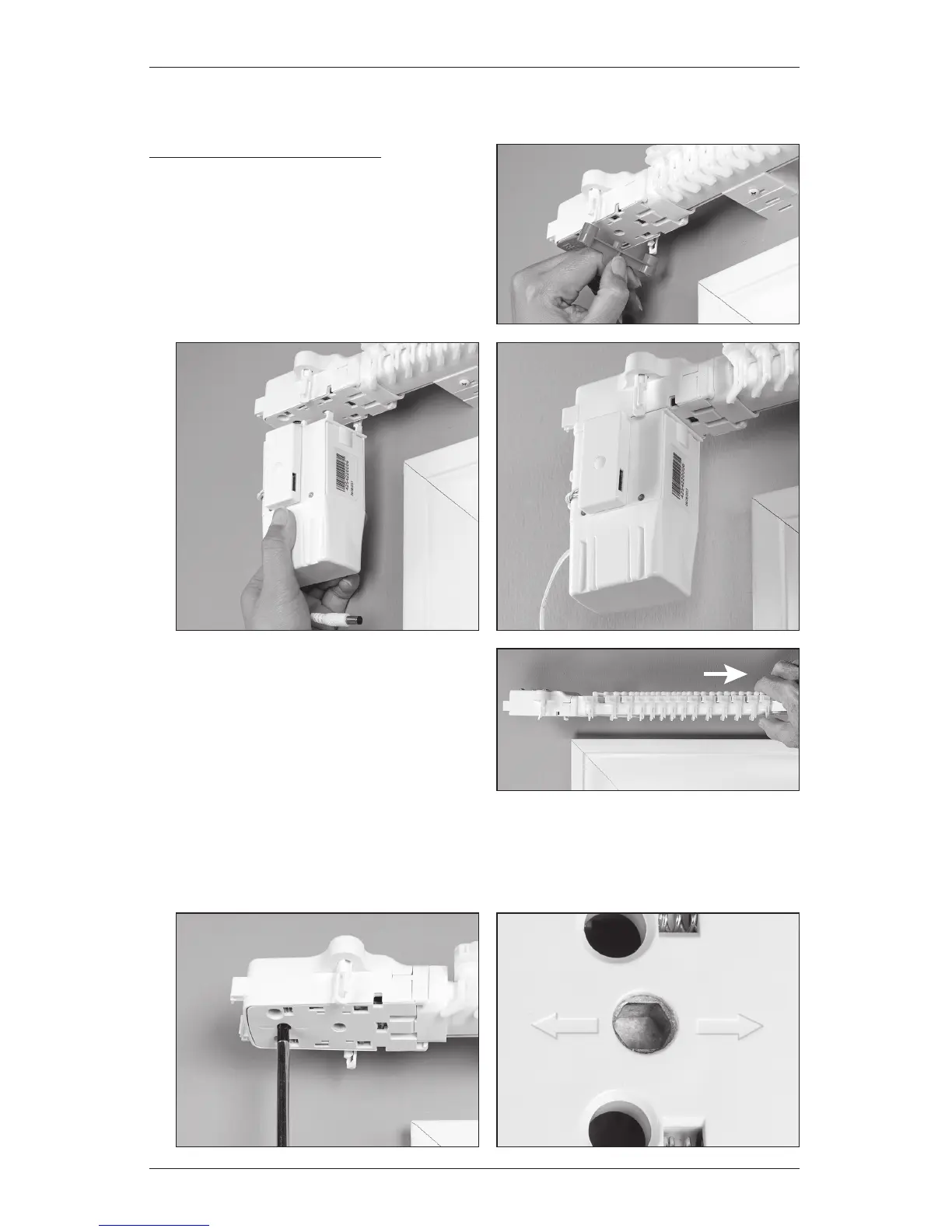

Connect the Motor Assembly
■ Remove the orange cover from the drive
assembly, as shown to the right.
■ Align the pins with the holes in the drive
assembly, as shown below. Press the motor
up into the drive assembly until it clicks into
place.
IMPORTANT: If snapping the motor onto
the drive assembly seems difficult, grasp
the lead carrier and pull the carriers slightly
away from the motor, as shown at right.
The motor should now snap in easily.
■ If you remove the motor and need to reinstall it, check the drive assembly and make sure
the tilt gear aligns with the arrows.
➤ If necessary, use a screwdriver to turn the tilt gear until it is aligned.
Aligned Tilt Gear
To Next Page
