HunterDouglas Provenance - Outside Mount

INSTALLATION
6
Outside Mount
The number of installation brackets required varies with the
headrail width, as shown in the table on page 2.
IMPORTANT: The top of the installation brackets must be
mounted at the ordered height minus
7
⁄ 8 ". If the ordered height
does not allow for floor clearance, subtract only
3
⁄ 8 " for
1
⁄ 2 " of
floor clearance.

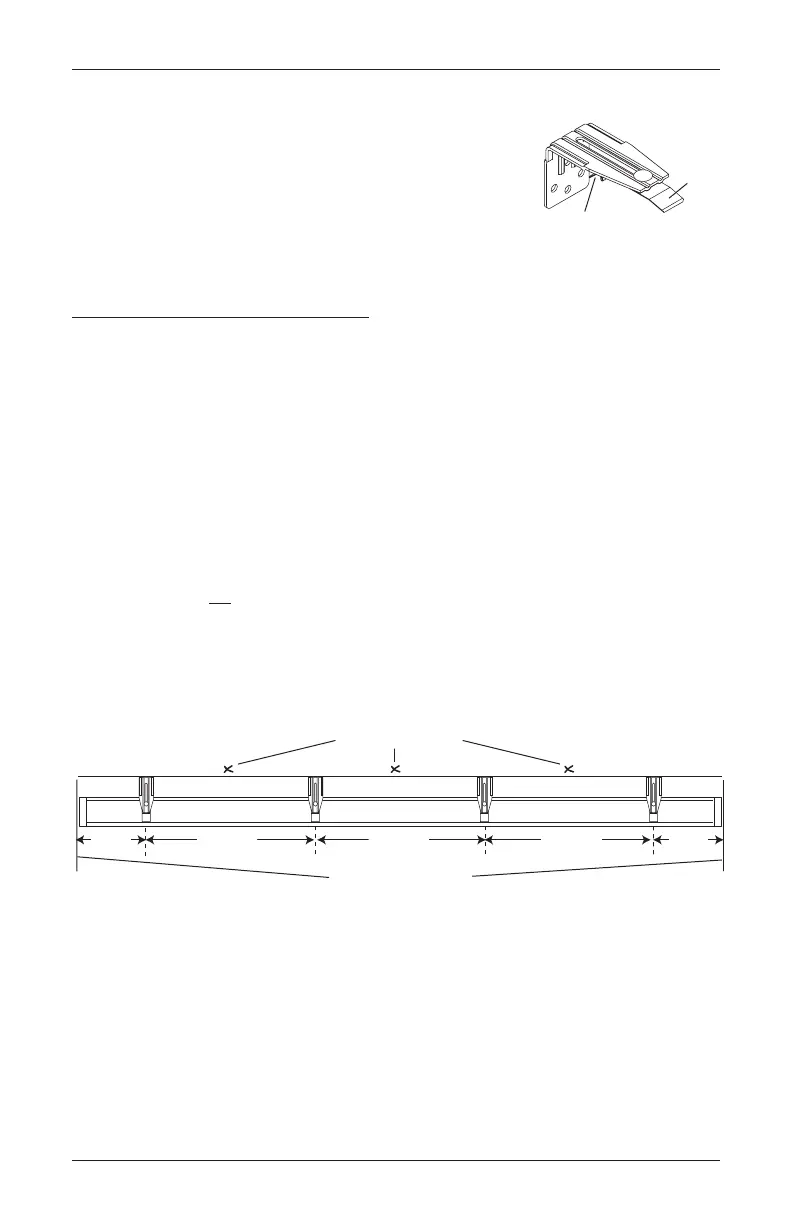

Installation Bracket Placement
■ Center the standard valance above the window opening at the desired height.
➤ If a side stack drapery was measured for stackback, offset the valance the appropriate
amount.
■ Using the valance as a template, mark the wall with the locations of the mounting clips
attached to the underside of the standard valance.
■ Center (or offset) the headrail above the window opening.
■ Mark the location of the ends of the headrail.
■ Mark installation bracket locations 2" to 4" from each end of the headrail
➤ Evenly space and mark additional installation brackets at 18" to 24" intervals along the
headrail. Do not exceed 24" between installation brackets.
➤ A minimum flat vertical surface of 3" is required to mount the brackets.
IMPORTANT: Your installation bracket marks must be no closer than 1
1
⁄ 2 " from the
mounting clip marks. Otherwise, the installation brackets will interfere with valance
mounting.
Attached
Mounting
Clip
Hook
(Front)
Release Tab
(Back)
2"− 4"
18"– 24"
18"– 24"
18"– 24"
Wall
Headrail
End of Headrail Marks
Valance Clip Marks
2"– 4"
