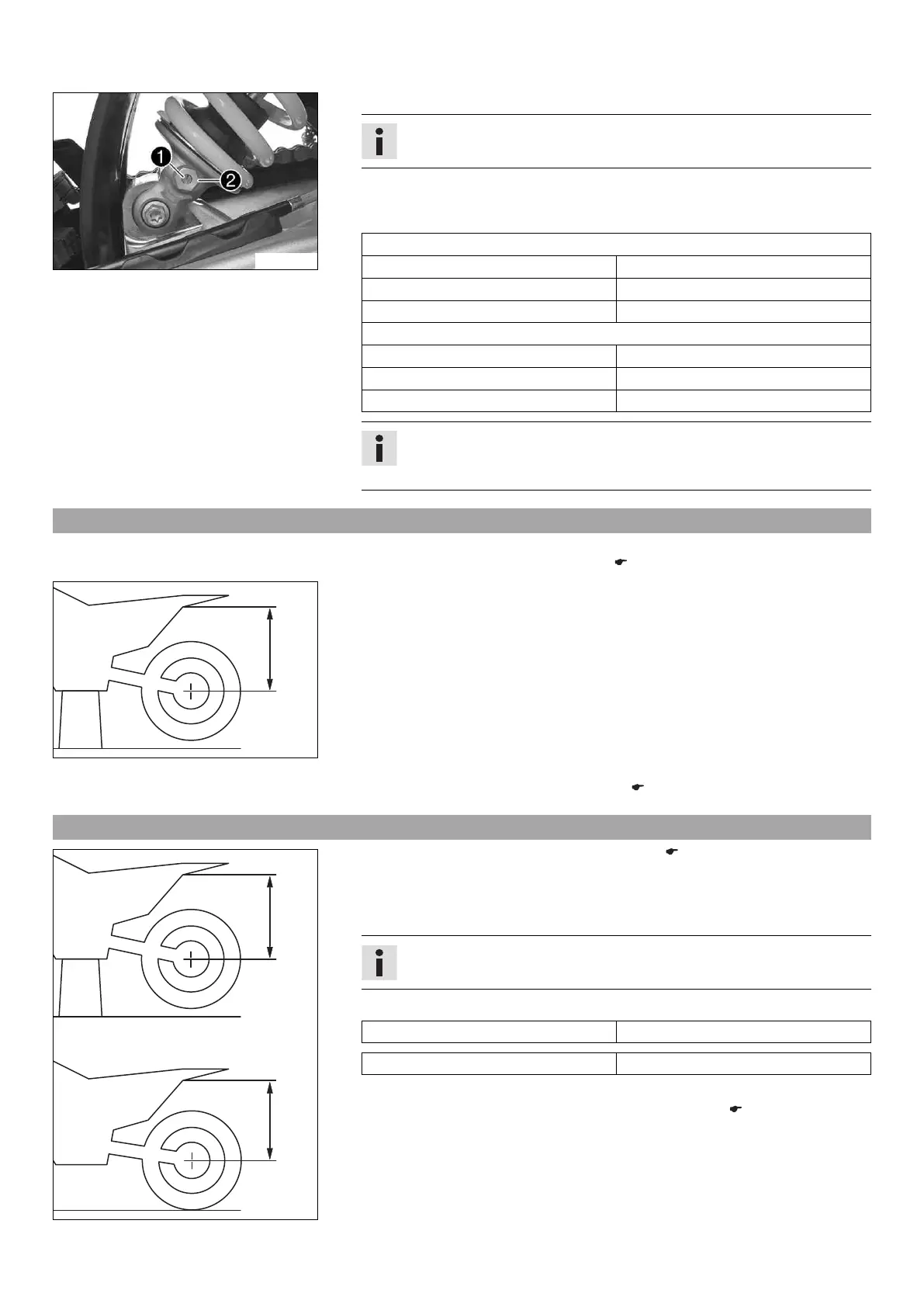

HUSABERG TE 250 EU - 10.6 Measuring the Sag of the Unloaded Rear Wheel; 10.7 Checking the Static Sag of the Shock Absorber

10 TUNING THE CHASSIS 39
L00191-10
– Turn adjusting screw 1 clockwise up to the last perceptible click.
Info
Do not loosen nut 2!
– Turn back counterclockwise by the number of clicks corresponding to the shock
absorber type.
Guideline
Rebound damping (TE 125)
Comfort 28 clicks
Standard 24 clicks
Sport 22 clicks
Rebound damping (TE 250/300)
Comfort 28 clicks
Standard 24 clicks
Sport 22 clicks
Info
Turn clockwise to increase damping; turn counterclockwise to reduce damp-
ing.
10.6 Measuring the sag of the unloaded rear wheel
Preparatory work
– Raise the motorcycle with the lift stand. ( p. 44)
0
0
AA
400988-10
Main work
– Measure the distance – as vertical as possible – between the rear axle and a fixed
point, for example, a mark on the side cover.
– Note down the value as dimension A.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 44)
10.7 Checking the static sag of the shock absorber
0
0
AA
0
0
BB
400989-10
– Measure distance A of the unloaded rear wheel. ( p. 39)
– Hold the motorcycle upright with the aid of an assistant.
– Measure the distance between the rear axle and the fixed point again.
– Note down the value as dimension B.
Info
The static sag is the difference between measurements A and B.
– Check the static sag.
Static sag (TE 125) 33… 35 mm (1.3… 1.38 in)
Static sag (TE 250/300) 33… 35 mm (1.3… 1.38 in)
» If the static sag is less or more than the specified value:
–
Adjust the spring preload of the shock absorber. x ( p. 40)
