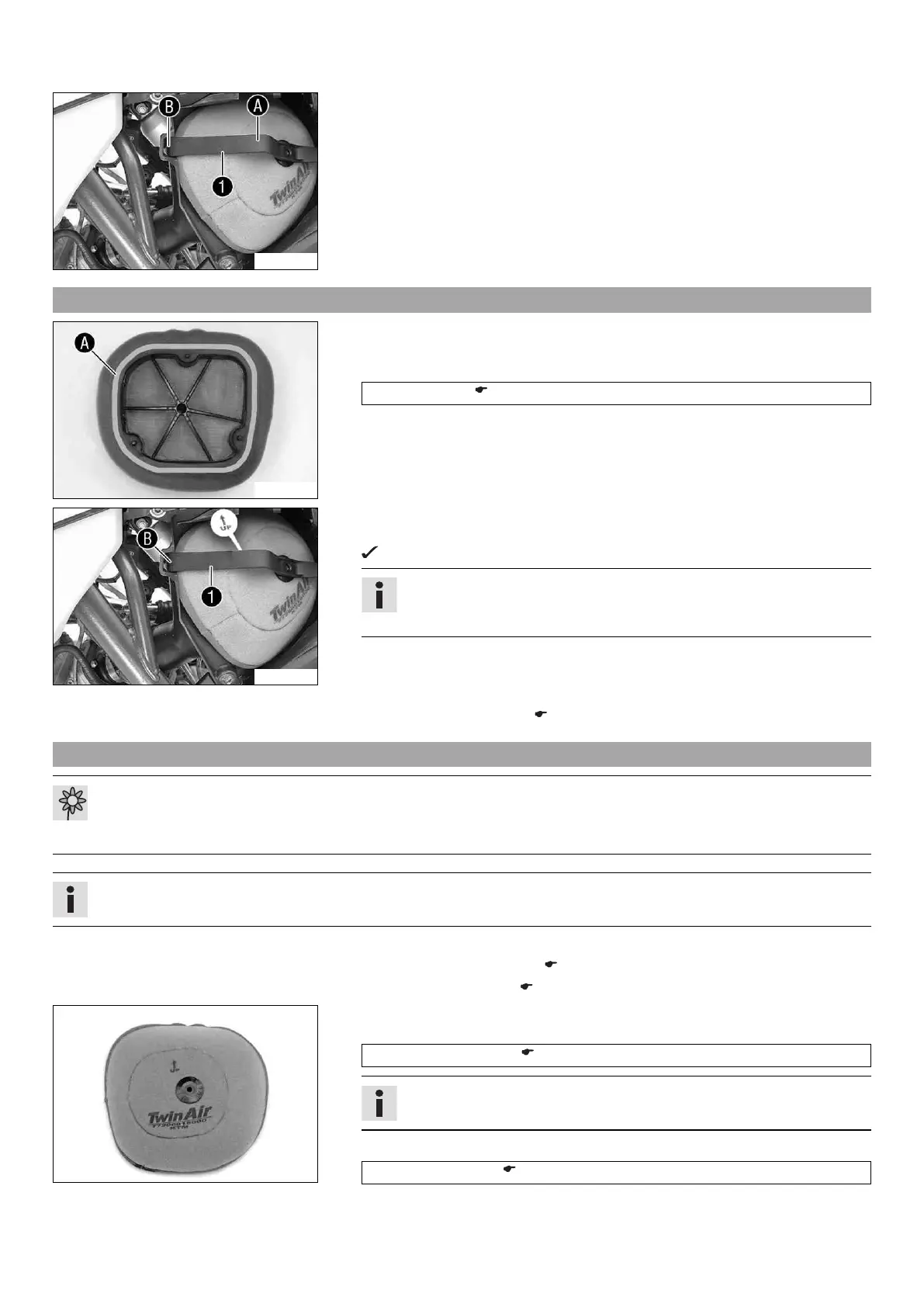

11 SERVICE WORK ON THE CHASSIS 54
602513-10
Main work
– Push air filter holder 1 toward the air filter at position A and detach it at end B.
Swing the air filter holder to one side and remove the air filter with the air filter
support.
– Remove the air filter from the air filter support.
11.25 Installing the air filter x
101351-10
Main work
– Mount the clean air filter on the air filter support.
– Grease the air filter in area A.
Long-life grease ( p. 121)
602513-11
– Insert both parts together, position them, and fasten them using air filter holder 1
in area B.
The arrow of marking UP faces up.
Info
If the air filter is not correctly mounted, dust and dirt can enter the engine
and cause damage.
Finishing work
– Install the air filter box lid. ( p. 53)
11.26 Cleaning the air filter and air filter box x
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Info
Do not clean the air filter with fuel or petroleum since these substances attack the foam.
Preparatory work
– Remove the air filter box lid. ( p. 53)
–
Remove the air filter. x ( p. 53)
L00189-10
Main work
– Wash the air filter thoroughly in special cleaning liquid and allow it to dry properly.
Air filter cleaning agent ( p. 121)
Info
Only press the air filter to dry it; never wring it out.
– Oil the dry air filter with a high quality filter oil.
Oil for foam air filter ( p. 121)
– Clean the air filter box.
