14 ELECTRICAL SYSTEM 84
L00248-10

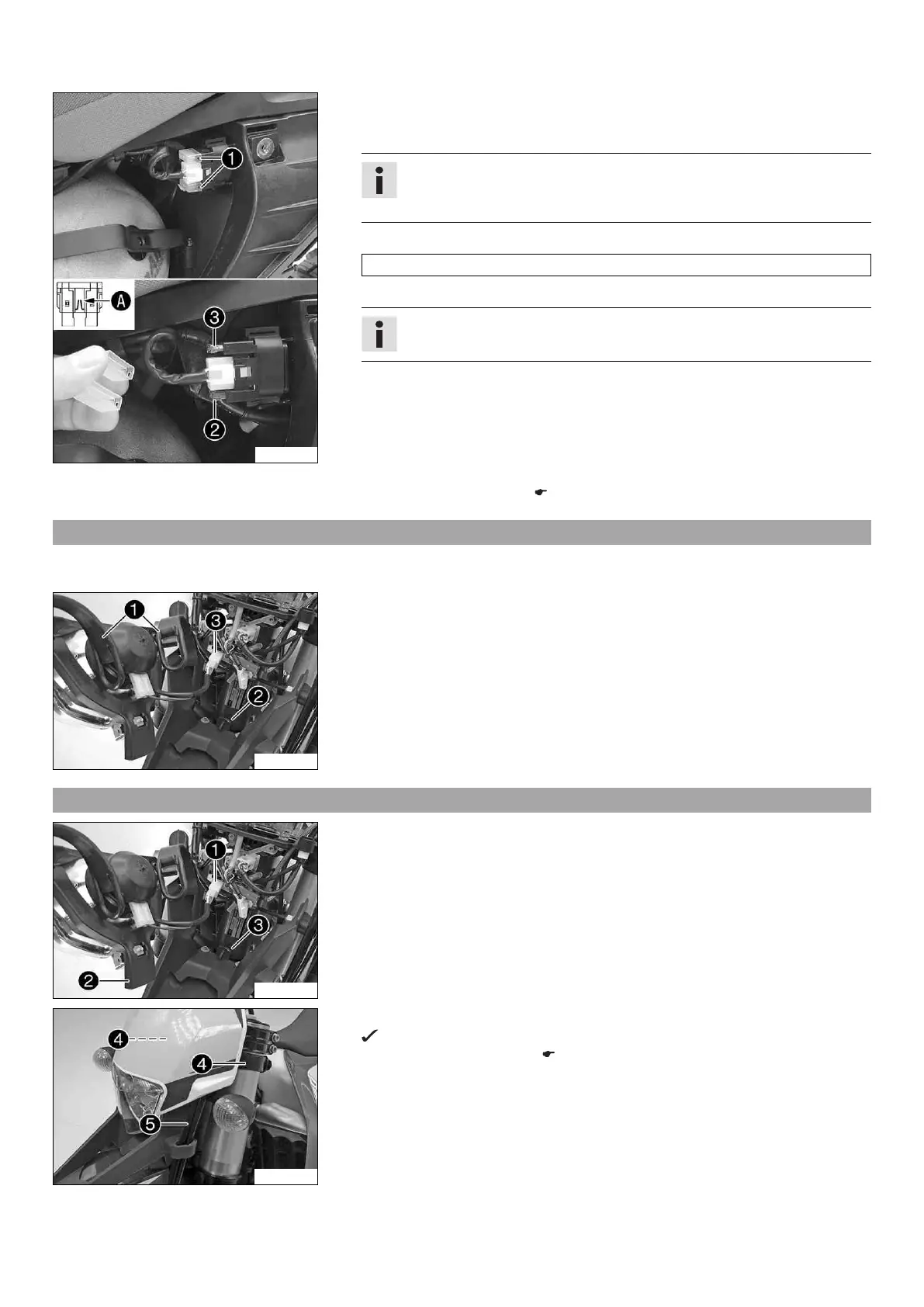

Main work
– Remove protection caps 1.
– Remove the faulty main fuse 2.
Info
A defective fuse can be identified by the burned-out fuse wire A.
A reserve fuse 3 is located in the starter relay.
– Install a new main fuse.
Fuse (58011109110)
– Check that the electrical equipment is functioning properly.
Tip
Insert the spare fuse so that it is available if needed.
– Mount the protection caps.
– Mount the starter relay onto the holder and lay the cable.
Finishing work
– Install the air filter box lid. ( p. 53)
14.5 Removing the headlight mask with the headlight
Preparatory work
– Switch off all power consumers and switch off the engine.
602527-11
Main work
– Open rubber bands 1 on the fork legs.
– Tilt the headlight mask forward and detach at catch 2.
– Disconnect connector 3.
– Take off the headlight mask with headlight.
14.6 Installing the headlight mask with the headlight
602527-10
– Plug in connector 1.
– Check that the lighting is functioning properly.
– Attach headlight holder 2 at catch 3 and position the headlight mask.
602528-10
– Position rubber bands 4 around the fork legs and close them.
The wiring harness and brake line 5 are routed in front of the headlight mask.
– Check the headlight setting. ( p. 86)
