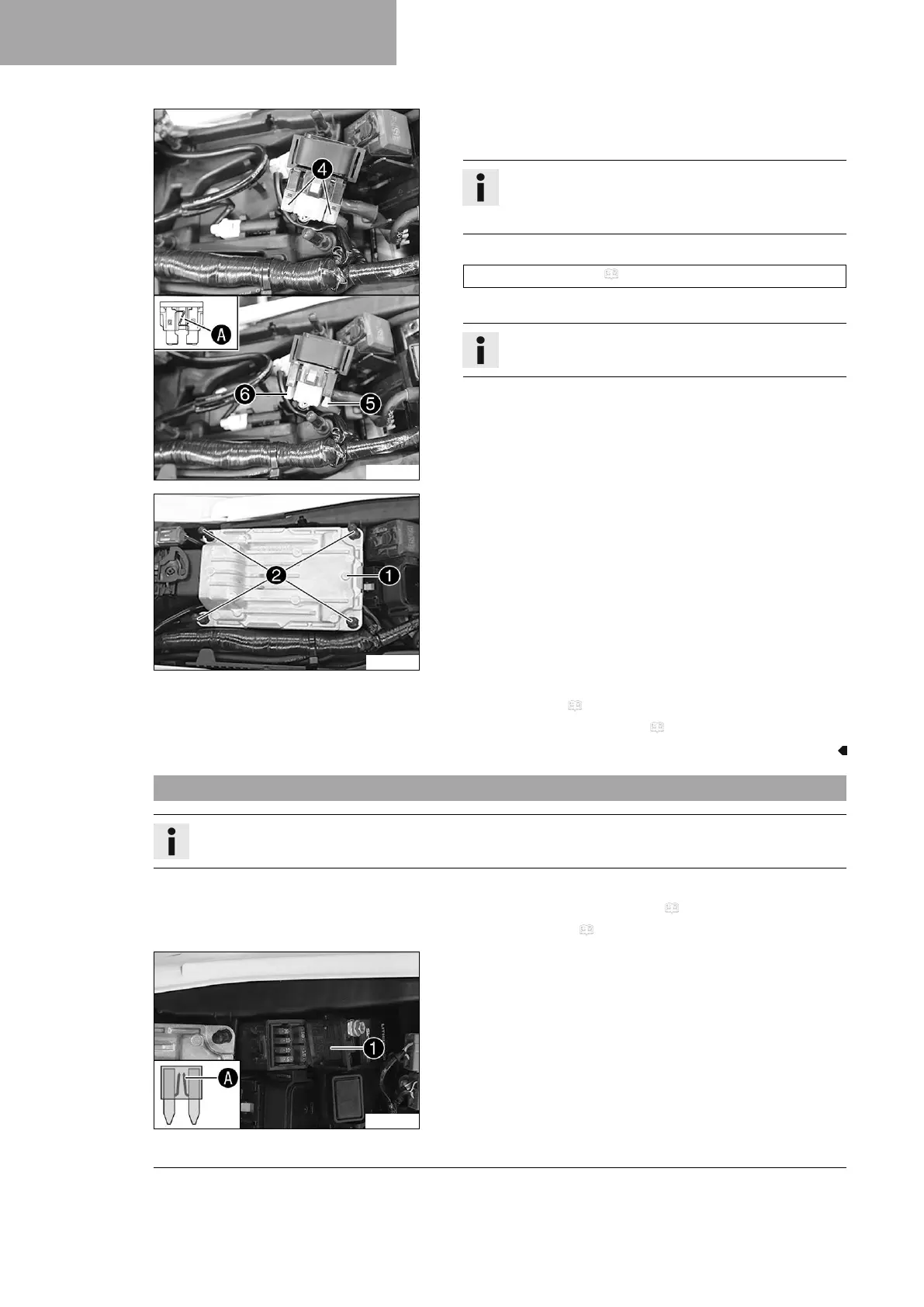

15 ELECTRICAL SYSTEM
124
S04852-10
–
Take off protection caps
4
.
–
Remove faulty main fuse
5
.
Info
A faulty fuse has a burned-out fuse wire
A
.
A spare fuse
6
is located in the starter relay.
– Insert a new main fuse.
Fuse (58011109120) ( p. 165)
– Check that the electrical system is functioning properly.
Tip
Insert a spare fuse so that it is available if needed.
–
Attach the protection caps
4
.
–
Mount starter relay
3
onto the holder and route the cable.
S04846-12
–
Mount the EFI control unit
1
on the rubber lugs
2
.
Finishing work
– Mount the seat. ( p. 73)
– Install the air filter box cover. ( p. 74)
15.5 Changing the fuses of individual electrical power consumers
Info
The fuse box containing the fuses of individual electrical power consumers is located under the seat.
Preparatory work
– Remove the air filter box cover. ( p. 73)
– Remove the seat. ( p. 72)
H03747-10
Main work
–
Open fuse box cover
1
.
– Remove the faulty fuse.
