SERVICE WORK ON THE CHASSIS 12

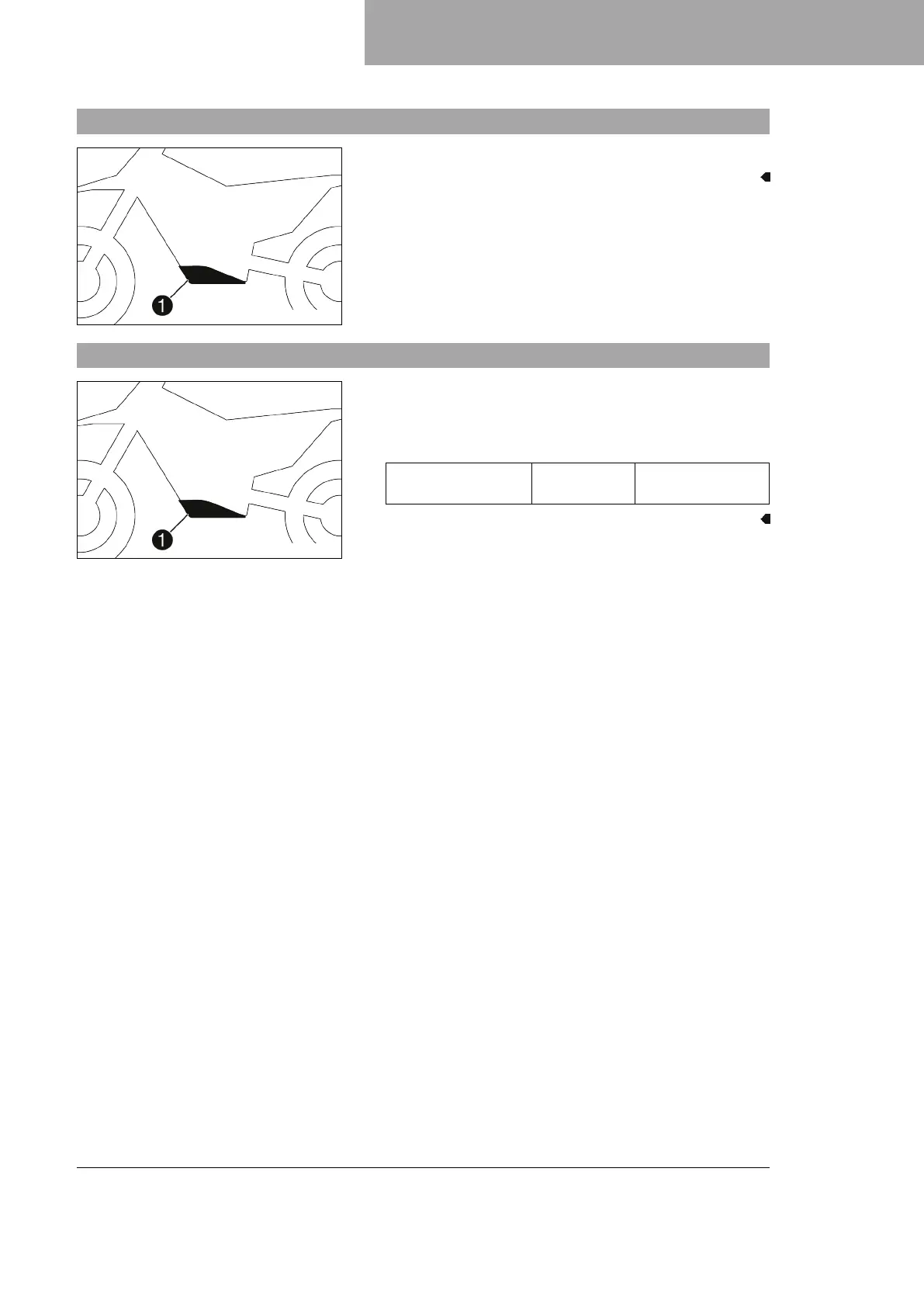

12.44 Removing the engine guard

H01655-01

–

Remove screws

and engine guard.

12.45 Installing the engine guard

H01655-01

– Attach the engine guard on the frame at the rear and swing

up at the front.

–

Mount and tighten screws

Guideline

Remaining screws,

chassis

M6 10 Nm (7.4 lbf ft)
