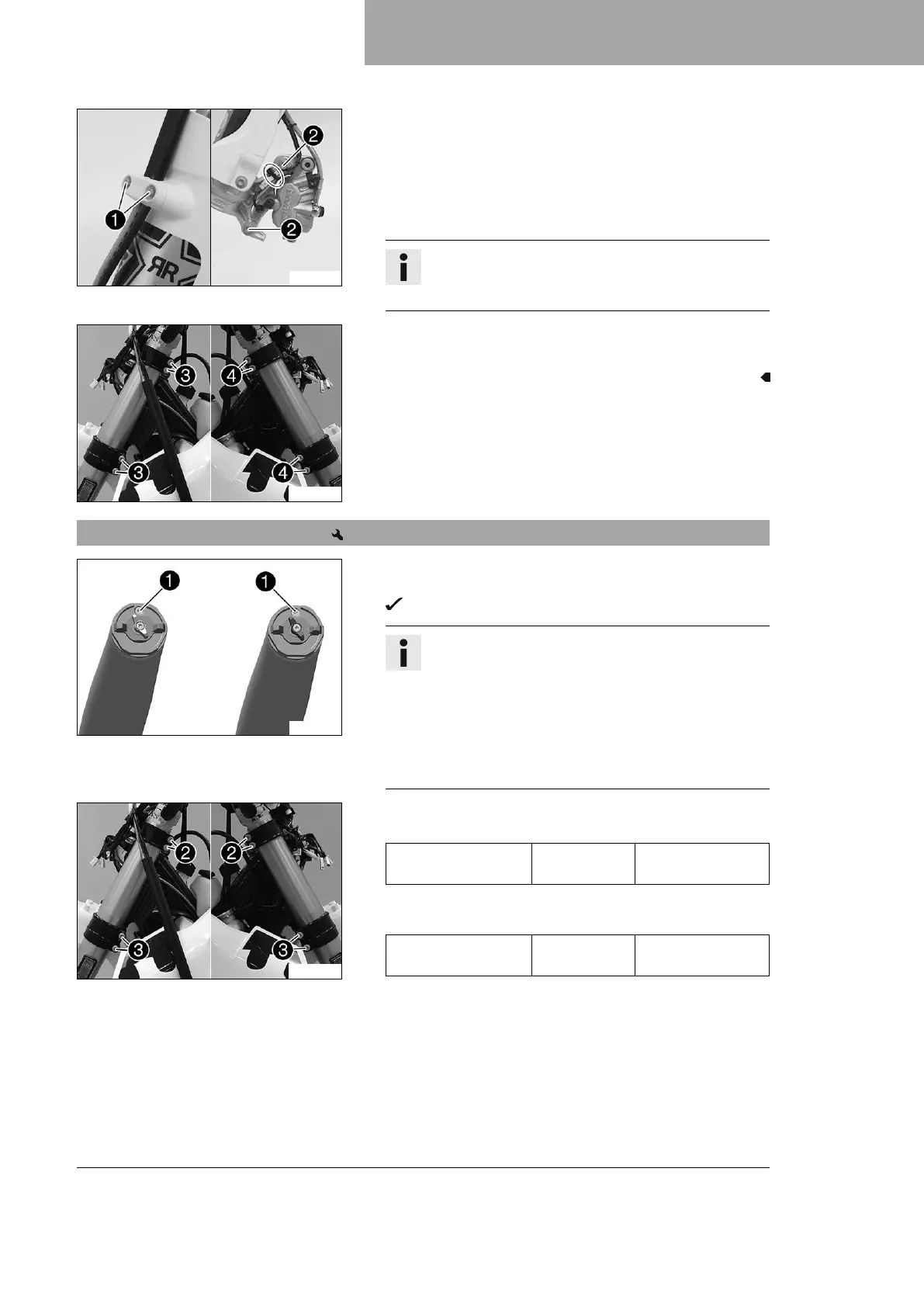

SERVICE WORK ON THE CHASSIS 12
61
S04968-10
(All TE special models)
–
Remove screws
1
and take off the clamp.
– Remove the cable tie.
–
Remove screws
2
and take off the brake caliper.
– Allow the brake caliper and the brake line to hang loosely to
the side.
Info
Do not actuate the hand brake lever when the front
wheel is removed.
H03680-10
–
Loosen screws
3
. Remove the left fork leg.
–
Loosen screws
4
. Remove the right fork leg.
12.6 Installing the fork legs
S04824-13
Main work
– Position the fork legs.
Bleeder screws
1
are positioned toward the front.
Info
The compression damping is located in left fork
leg COMP (white adjuster). The rebound damping is
located in right fork leg REB (red adjuster).
Grooves are milled into the side of the upper end of
the fork legs. The second milled groove (from the top)
must be flush with the upper edge of the upper triple
clamp.
H03680-11
–
Tighten screws
2
.
Guideline
Screw, top triple
clamp
M8 17 Nm (12.5 lbf ft)
–
Tighten screws
3
.
Guideline
Screw, bottom triple
clamp
M8 15 Nm (11.1 lbf ft)
