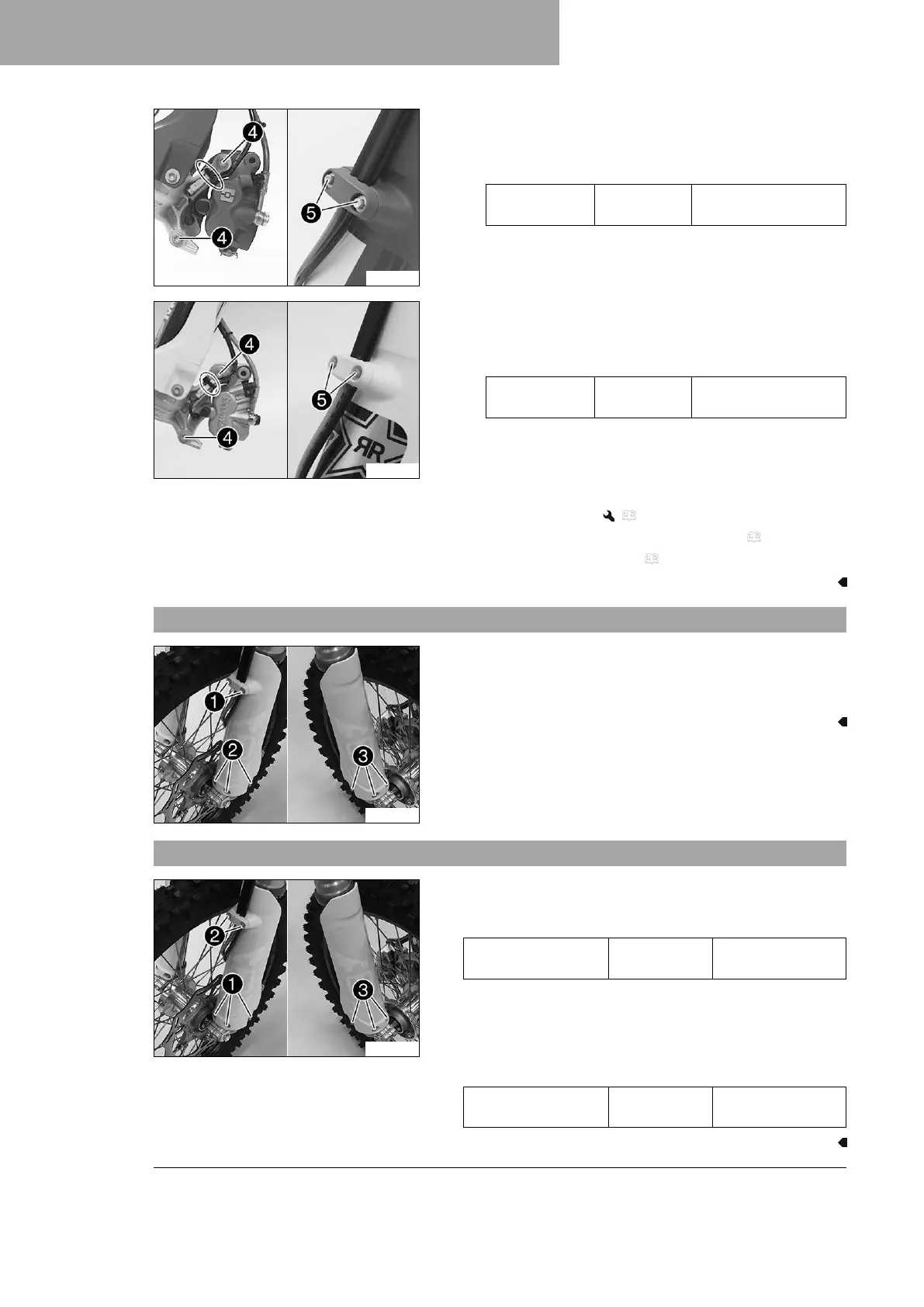

12 SERVICE WORK ON THE CHASSIS
62
S04826-10
(All TE standard models)
– Position the brake caliper, and mount and tighten
screws
4
.
Guideline
Screw, front
brake caliper
M8 25 Nm (18.4 lbf ft)
Loctite
®
243™
– Mount the cable ties.
–
Position the brake line, the wiring harness, and the clamp.
Mount and tighten screws
5
.
S04969-10
(All TE special models)
– Position the brake caliper, and mount and tighten
screws
4
.
Guideline
Screw, front
brake caliper
M8 25 Nm (18.4 lbf ft)
Loctite
®
243™
– Mount the cable ties.
– Position the brake line, the wiring harness, and the clamp.
Mount and tighten screws
5
.
Finishing work
– Install the front wheel. ( p. 111)
– Install the headlight mask with the headlight. ( p. 126)
– Check the headlight setting. ( p. 129)
12.7 Removing the fork protector
H03681-10
–
Remove screws
1
and take off the clamp.
–
Remove screws
2
and take off the left fork protector.
–
Remove screws
3
and take off the right fork protector.
12.8 Installing the fork protector
H03681-11
– Position the fork protector on the left fork leg. Mount and
tighten screws
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
– Position the brake line, wiring harness, and clamp. Mount and
tighten screws
2
.
– Position the fork protector on the right fork leg. Mount and
tighten screws
3
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
