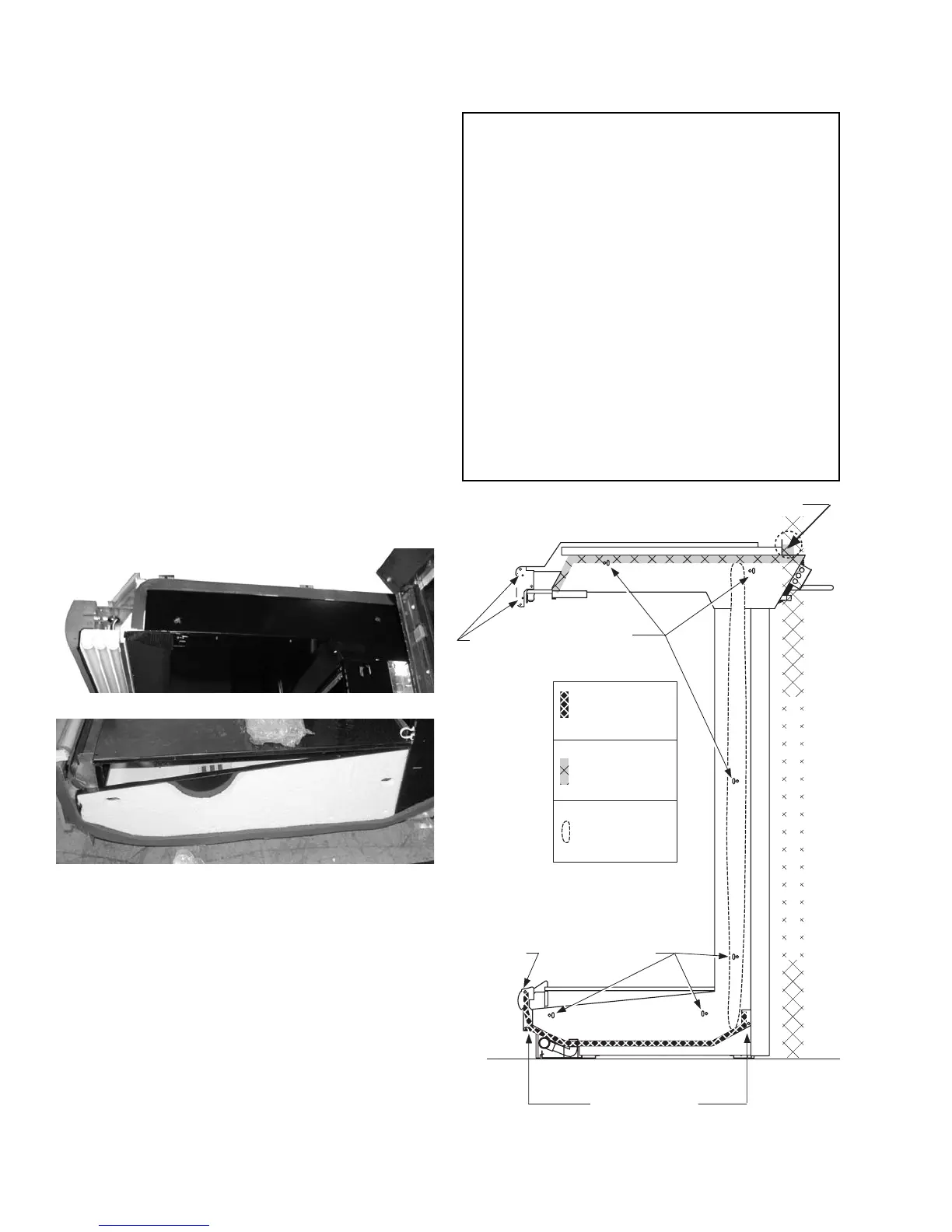

Apply Gaskets as Follows:
Right End ONLY
1. Apply the 1
5
/8-inch gasket around the top of
the case as shown. It must be at the edge. Check
to be sure that there are no gaps between gasket
and merchandiser.
2. Apply the 1 inch (25 mm) gasket on the
metal case frame as shown across the bottom.
Check to be sure that there are no gaps between
merchandiser and gaskets.
3. Apply 1
5
/8
-inch gasket across the top, from
one end of the case to the other, where the case
meets the cooler wall. Lap gasket if necessary
— do not butt ends. The lengthwise gasket must
lap the front-to-back gasket to fill any gap at the
cooler wall.
Apply Silicone Sealant to Right End ONLY
from the top gasket to the bottom gasket as
shown in the illustration.
IMPORTANT
• Do not stretch gasket,
especially around corners.
• Do not butt gaskets;
always overlap them as shown.
• Remove paper backing
after gasket has been applied.
• Perimeter gasket required by NSF.
• End caps required for rail light.
C
O
O
L
E
R
W
A
L
L
First Gasket
1
in. Gasket
(24 mm)
Second
Gasket
1
5
/
8
in. (41 mm)
Silicone
Sealant
Apply Gaskets to
RIGHT END
Insert
Alignment
Screws
Insert
Alignment Pins
Insert
Alignment
Rod
Apply Gasket Along Full Length
of Case at Cooler Wall
S
I
L
I
C
O
N
E
S
E
A
L
A
N
T
Remove
Nut Retainers
Remove
Nut Retainers
