Re-install bumpers as described beginning on
Page 1-10.
Note: Optional end bumpers are factory-
installed only.
OPTIONAL
FRONT RAIL LIGHT
Every lineup with optional front rail light
assemblies must have an end cap installed at
each end of the lineup before ends are installed.
Caps snap on without tools or fasteners.
For reference, additional wiring detail is shown
on the next page.

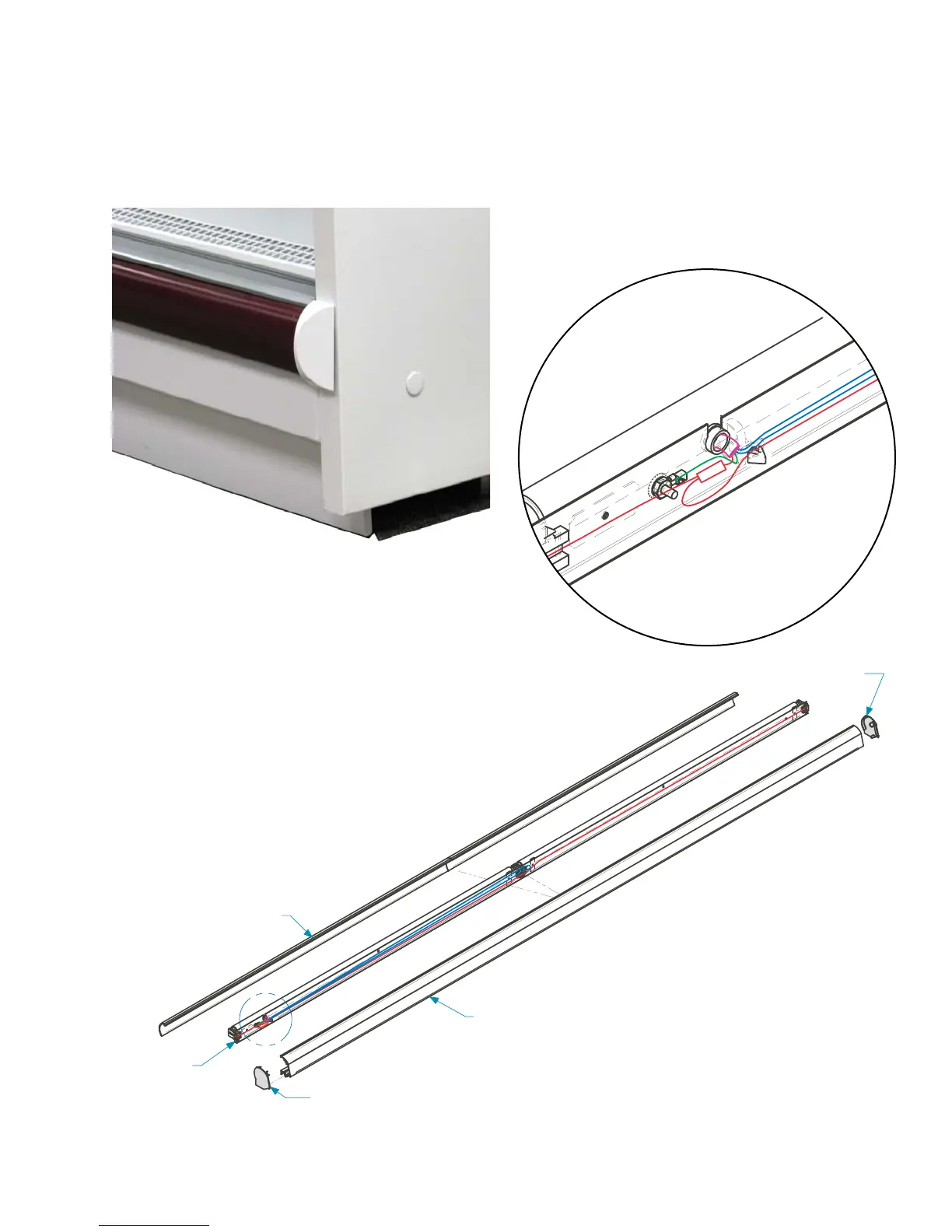

Ultra Low Front
Rear Load Excel
Front Rail Light Shield
Front Rail Light
Extrusion
Rail Light RH End Cap
Rail Light LH End Cap
Front Rail
Light Channel
Assembly
A
Installing End Caps for
Optional Front Rail Lights
DETAIL A
