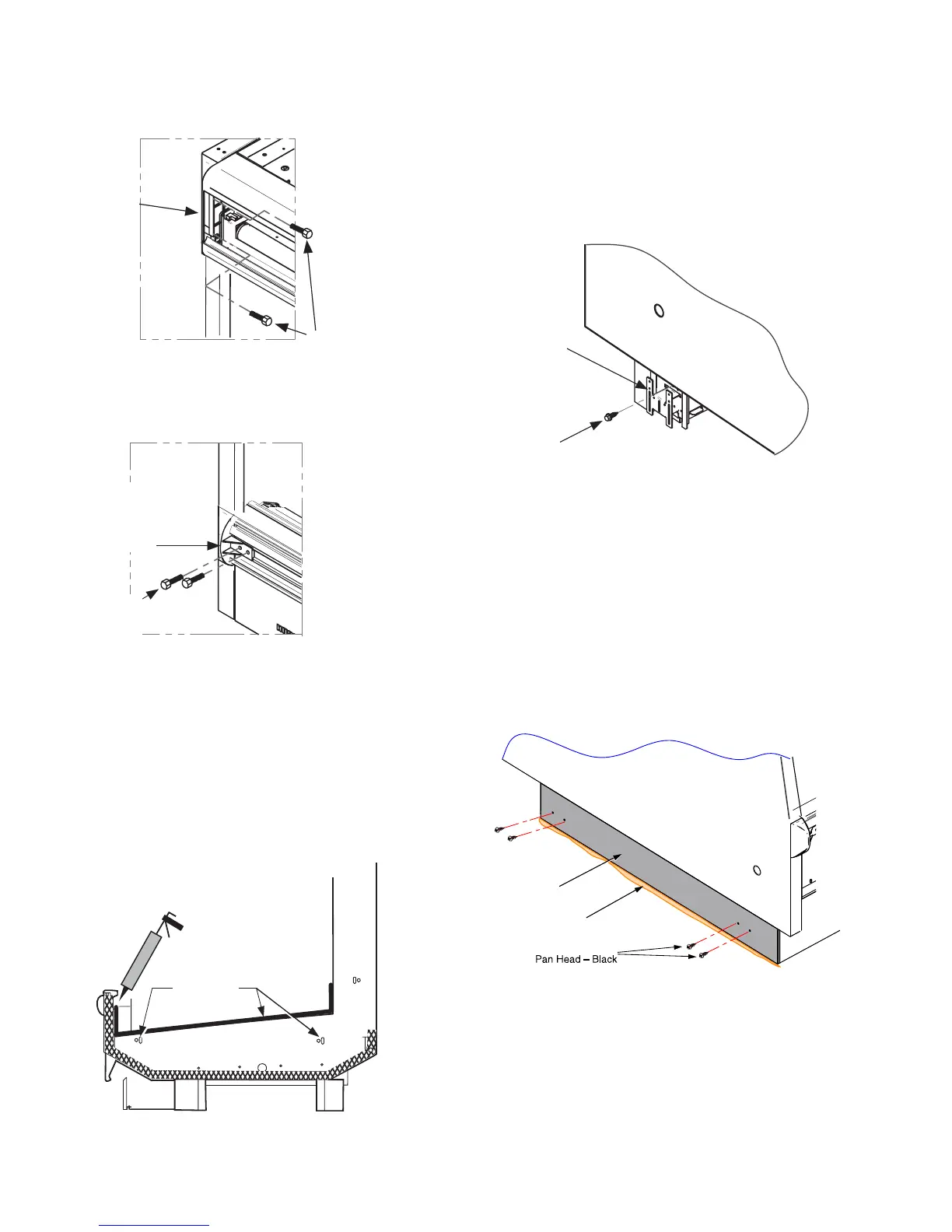

5. Seal End to End Frame
Remove front shelf and shelf support bracket.
Apply a
1
/
2 in. bead of Silicone at the back of
the case, starting at the first slot. Continue
across the bottom and up the front as shown
below. Use field-supplied silicone in any gap
between front support bracket and end assembly.
6. Install End Splashguard
a. Insert back of bracket through slot in leg.
Use Screws to attach End Splashguard
Retainers to end frame.
b. Align forward edge of End Splashguard
with front splashguard, with lower edge
resting on floor. Fasten End Splashguard to
bracket with Screws.
c. Seal splashguard to floor with silicone.
Apply
Silicone
Sealant
Screws
SM 8-18x
1
/2
Hex Head
Detail A
Solid End
Top Corner
Casting
Detail B
Solid
Corner
Bumper
Casting
Screw
SM 8-18x
1
/2
Hex Head
Screw
SM 8-18x
1
/2
Hex Head
End
Splashguard
Brackets
End
Splashguard
Screw #8x
1
/2
Apply Silicone
