Seal Merchandisers

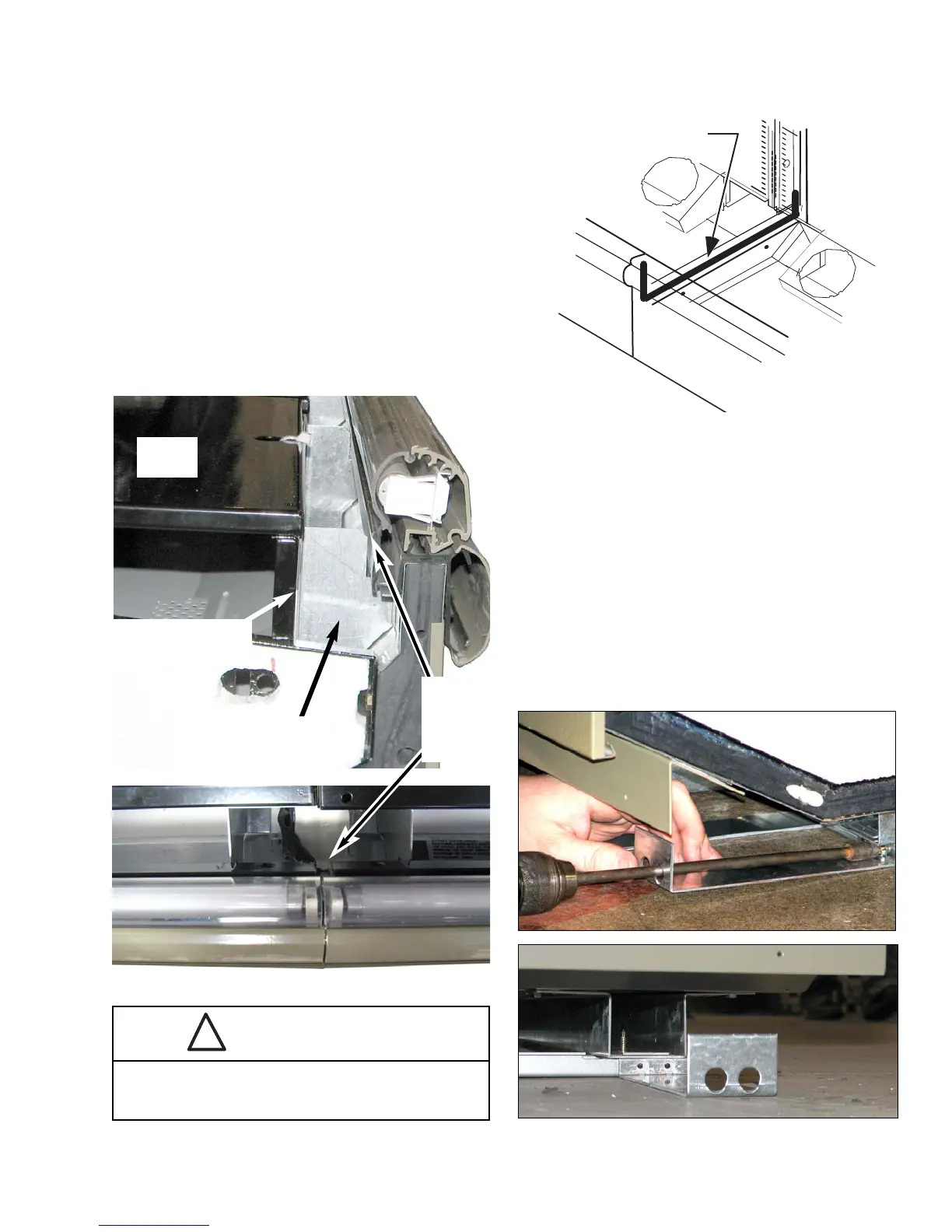

1. Remove interior front panel and interior
panel support bracket to apply butyl tape.
(Display pans were removed in earlier step.)
2. Apply butyl tape across the end shoe joint.
Be sure to extend the tape up the back and front
of the case.
Silicone sealer may be applied around joining
bolts on both sides in bottom shoe but isn’t
necessary if neoprene washers are used.
INSTALL SPLASHGUARD BRACKETS
Position splashguard brackets at the front of the
merchandiser, on the floor, at 4 foot intervals.
Each bracket has a
3
/8 in. (10 mm) slot at the rear
of the bracket to allow some adjustment where it
attaches to the merchandiser. Use a driver exten-
sion to tighten screws that secure the brackets.
Once drip piping is complete, install splashguards
as described in Section 3.
P/N 0501930_A 1-9
