Hussmann D5X-ULEP - Installing Splashguards

Ultra Low Front Rear Load Excel
P/N 0501930_A 3-3
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
INSTALLING SPLASHGUARDS
The splashguard is shipped inside each
merchandiser. AFTER merchandisers have
been leveled and joined, and all drip pip-
ing, electrical and refrigeration work has
been completed, install the splashguard.
To Install Splashguards:
1. Check to be sure that all splashguard
retainers are level with the floor and
fastened to the rail.
2. Align the tabs in the upper splash-
guard support with the slots extending
out from the front color panel, then slide
the upper splashguard into place. The
upper splashguard support should be
level

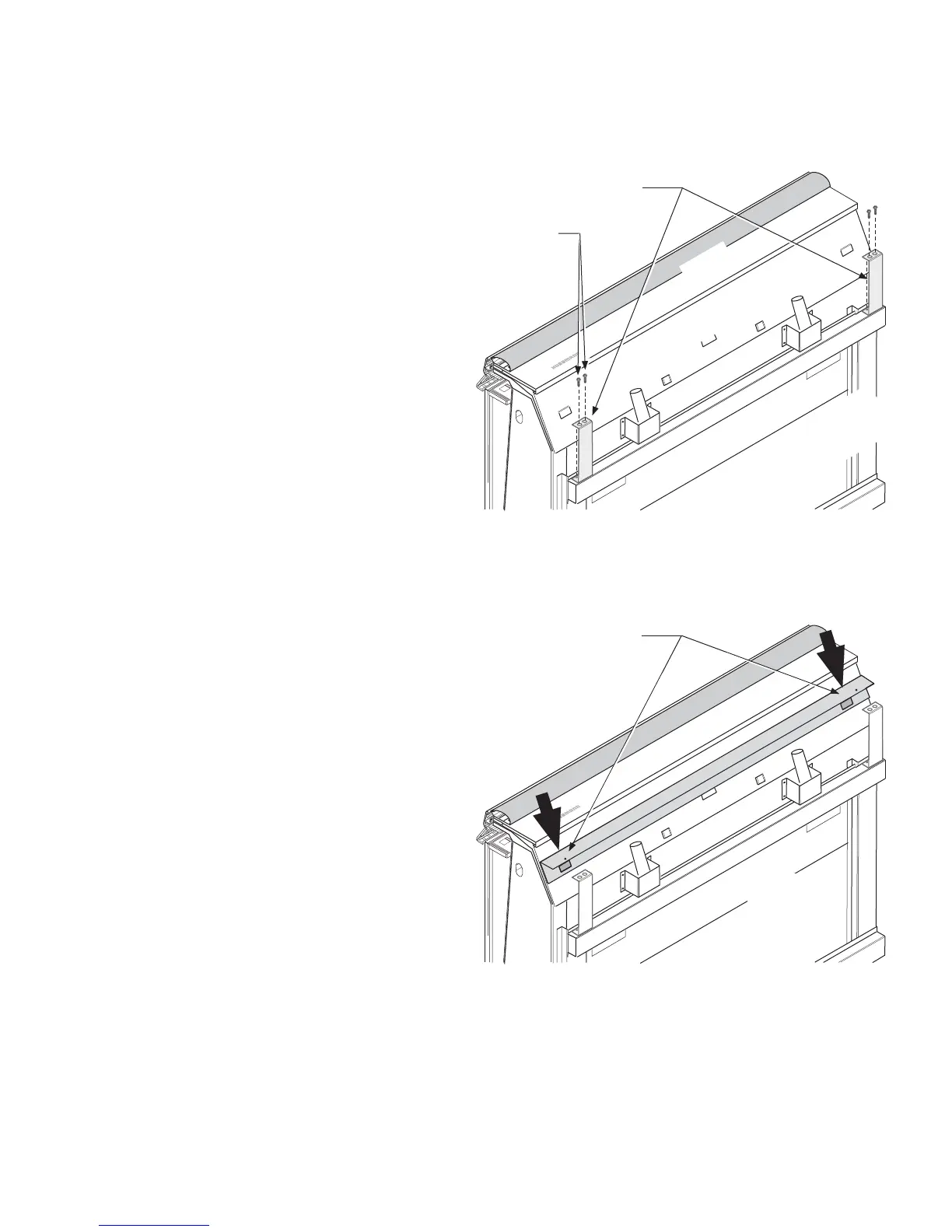

Use Extension to
Insert Screws
Splashguard Brackets
Front
Bottom
of Case
1.
Slide Upper
Splashguard Retainer
Over Slots
Upper Splashguard Retainer Slots
2.
