Hussmann D5X-ULEP - Fastening End Frames

7. Draw canopies of multi-deck wall cases
together by using a bolt, flat washers, lockwash-
er and nut in the joining brackets atop the
canopy. See detail below. Tighten only until
canopies touch.
Fasten End Frames
1. Begin at lower back to draw end frames
tight.
2. Tighten joints in the order shown (A, B,
C, D) until the gaskets are compressed, and
cases join smoothly.
3. Tighten screws in canopy end cap ( E ) to
complete smooth fit.
1-8 I
NSTALLATION
P/N 0501930_A WWW
.HUSSMANN.COM
D
4
A
1
Alignment order
1, 2, 3, 4, 5
Tightening order
A, B, D, C, E
E
5
B
2
C
3
C
O
O
L
E
R
W
A
L
L
Tighten in Order Shown
Rear Load
Ultra Low Front
Bolt
Metal
Washer
Neoprene Washer
Lock
Washer
Nut
Neoprene Washer
Metal
Washer
Case
End
Frames
Lock Washer
Metal Washer
Neoprene
Washer
Nut
Machine
Screw
#10 x 1
1
/4
Joining
Bracket
Bolt
Flat Washer
Hex Nut
Lockwasher
Joining
Bracket
Hex Nut
Hex Nut

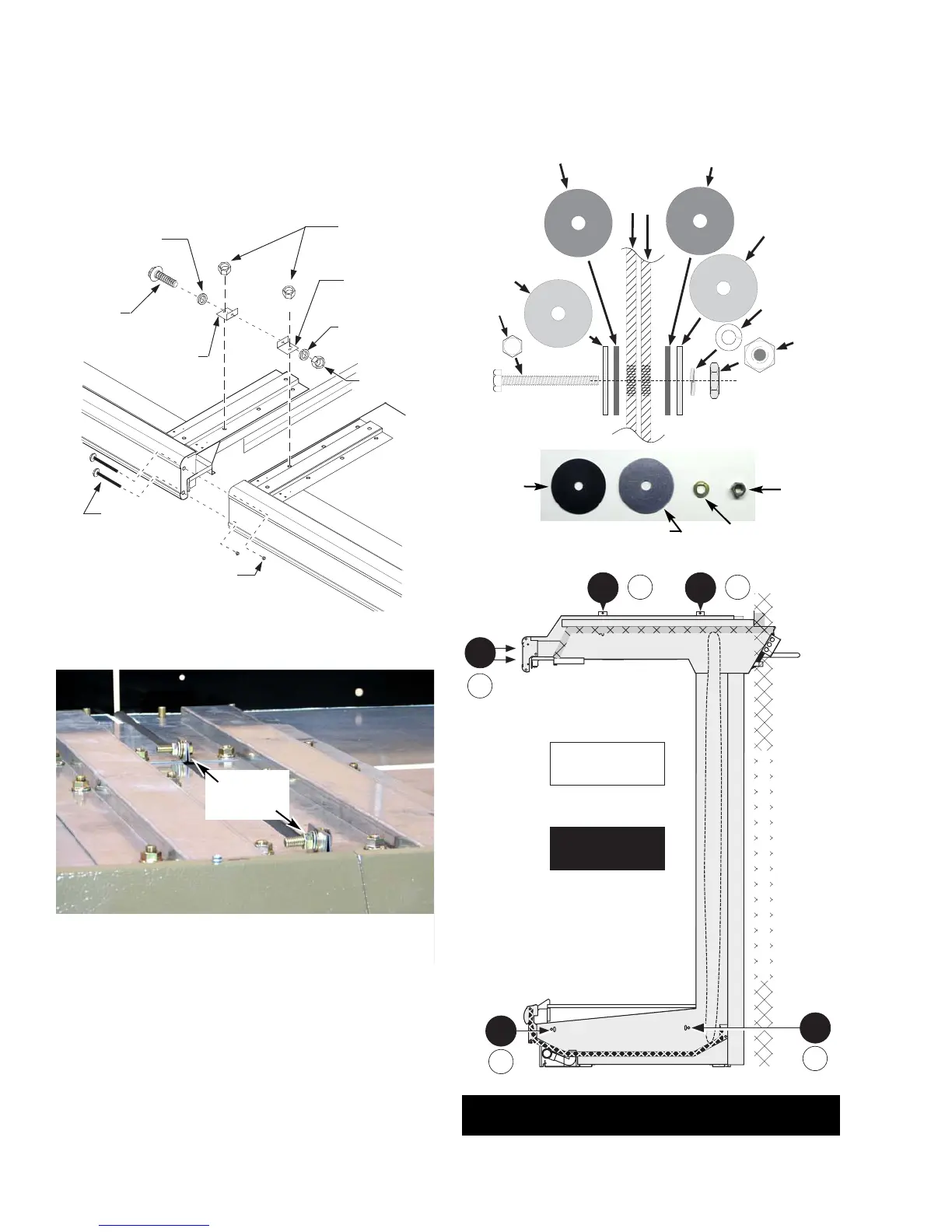

Detail for Connecting Canopies
of Multi-deck Wall Cases
Joining
Brackets
Detail for Connecting Canopies
of Rear Load Ultra Low Front Cases
