SETTING REAR LOAD CASE
The rear load case is installed in a cooler wall.

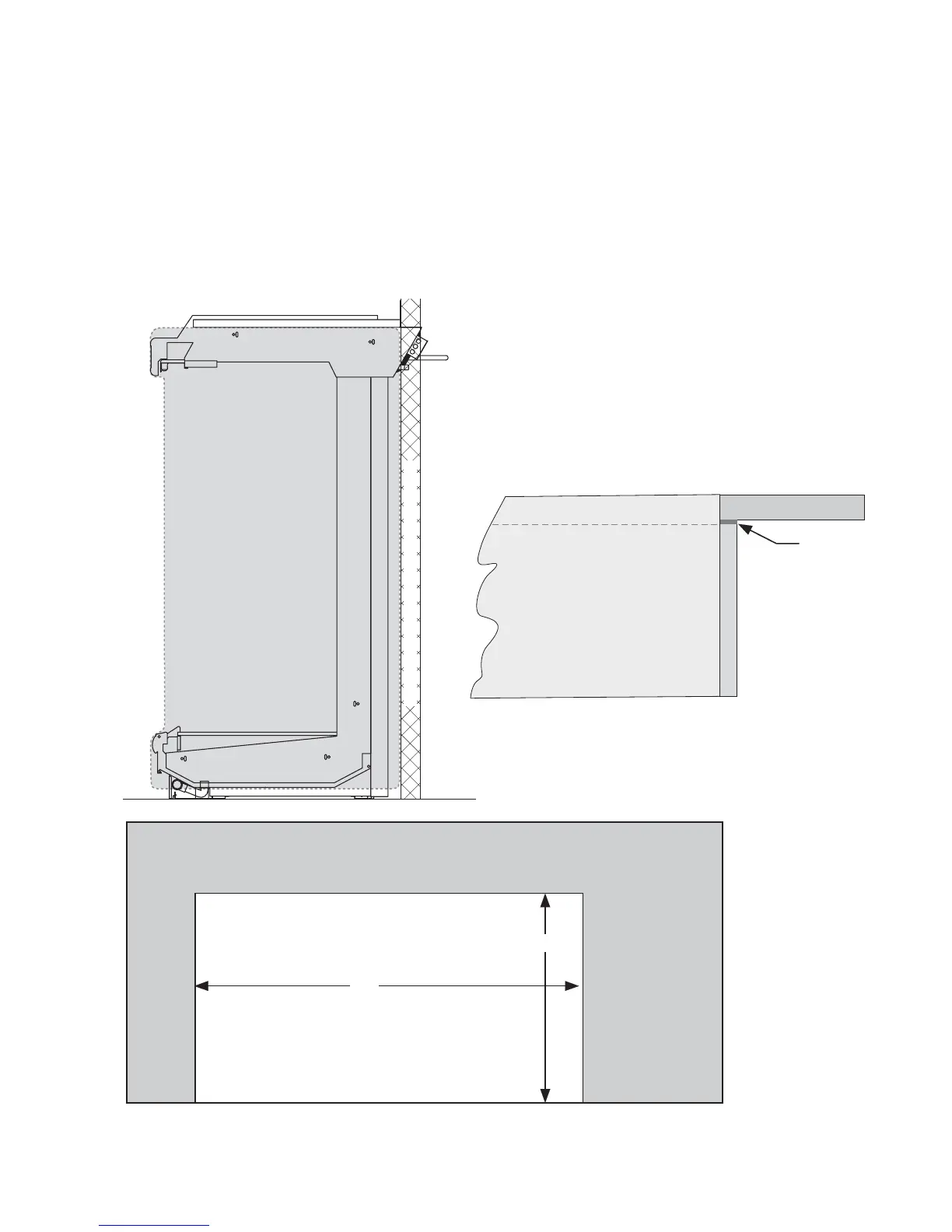

The illustrations below show the relationship
between the wall and the case. The rear of the
canopy extends through the cooler wall. Note that
the uprights are forward of the wall with the case
end closing the gap.
CASE LEVELING
Merchandisers must be installed level to ensure
proper operation of the refrigeration system and
to ensure proper drainage of defrost water.
During all steps of setting, joining and leveling
cases, close attention to position and operation
must be maintained.
NOTE: B
EGIN LINEUP LEVELING FROM THE HIGHEST
POINT OF THE STORE FLOOR
.
P/N 0501930_A 1-3
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
Ultra Low Front Rear Load Excel
C
O
O
L
E
R
W
A
L
L
W = Total Length of lineup without ends +
3
/4 inch
90
1
/2
W
Cooler Opening
Cooler Wall
Front View
D6X-12URLE = 144
1
/2 in. (3670 mm)
D6X-8URLE = 96
3
/8 in. (2448 mm)
Top View of D6X-URLE
Cooler Wall
End Assembly
1-in. Gasket
(apply top to
bottom of
end assembly)
Top View
Side View
