Installation (Cont'd)

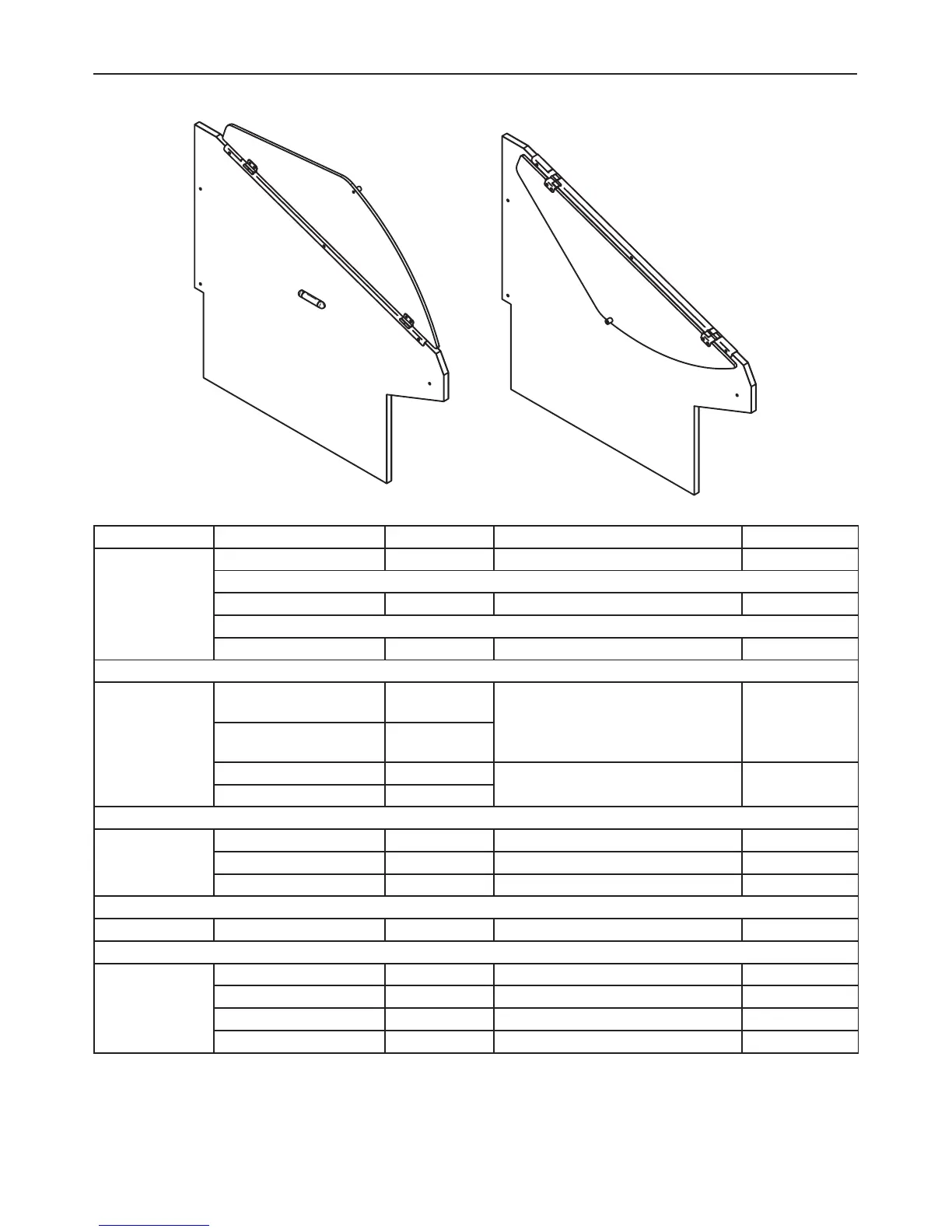

DSF End Wing Assembly Instructions
Parts and Components List
Part Total Quantity Description Sheet Number
Wing
1H12007300 2 Curved Plex Wing 10
OR
1H16223300 2 Curved Plex Wing, 54" FLAT TOP 10
OR
1H12008300 2 Straight Plex Wing 10
Weldments
Left Wing Channel
Weldment
1 Female Hinges + Wing Channel 10
Right Wing Channel
Weldment
1
Left Hinge Weldment 2 Male Hinge + Plex Holder 10
Right Hinge Weldment 2
Bumper
Boston NE 50 End Cap 4 Bumper End Cap 11
Boston NE 50 Section 2 Bumper 11
Bumper Channel 2 Bumper Channel (Length = 3.75") 11
Post 025880 2 Plex Spacer Tube (1 Per Wing) 11
Fasteners
175-01-0369 10 Binding Post Cap 1/2" 11
300-03-0610 8 Phillips Stainless Screw 8-32 x 1/2" 11
300-03-0641 6 Phillips Stainless Screw 10-24 x 1" 11
300-03-0620 2 Phillips Stainless Screw 8-32 x 1" 11
