Installation (Cont'd)

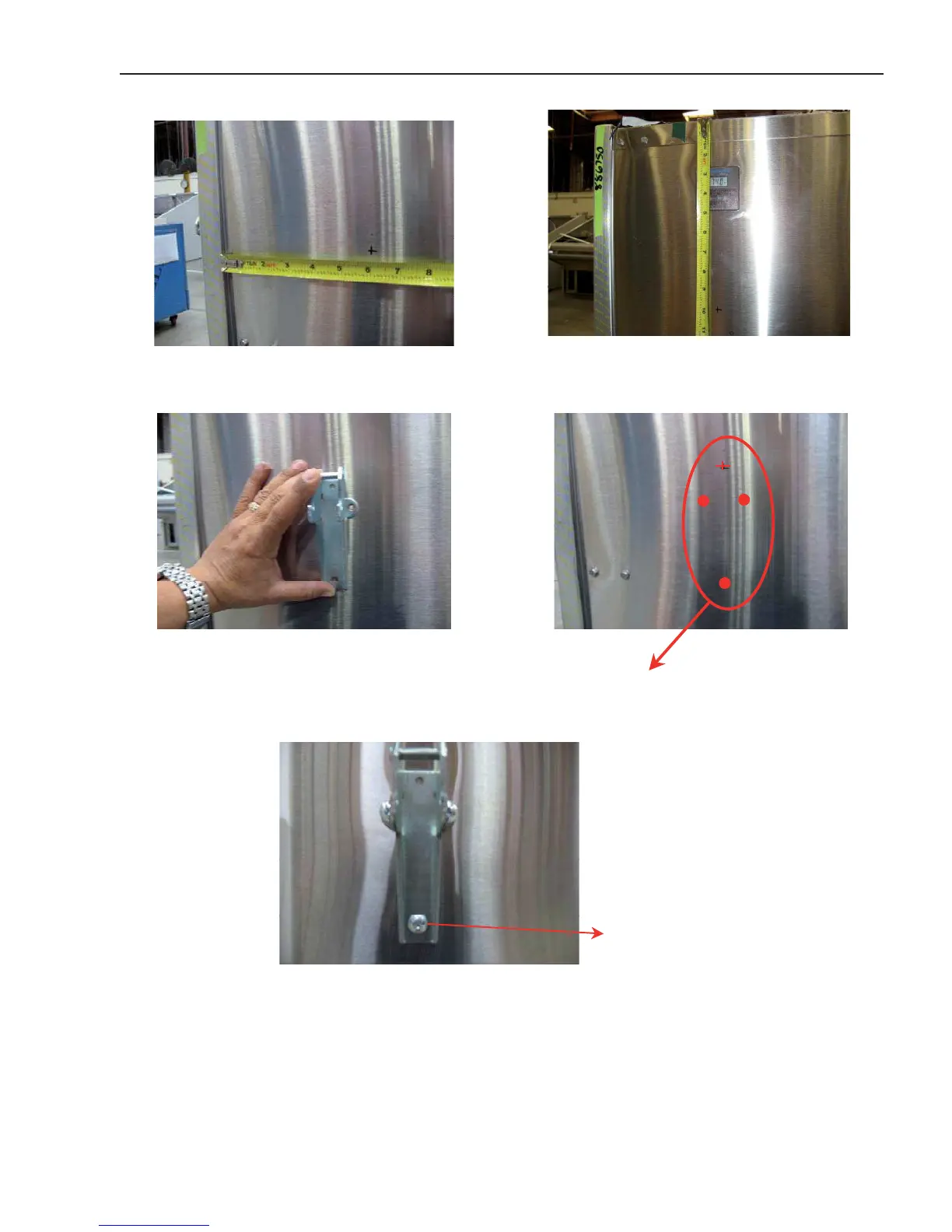

Wrapping Boards Installation Instructions
Step 1: Measure 6 inches from wrapping board end.
Step 2: Measure 10 inches from top of the case.
Note: Line up 6 inch mark with 10 inch mark.
Step 3: Use bracket center hole to align with cross mark.
Note: Use pencil/marker to mark hole pattern.
Step 5: Install bracket with screws (provided)
Note: Repeat Steps 1 Thru 5 for Second Bracket Installation.
