Hussmann DSF - Bumper Installation; Operation Notes

16
Installation (Cont'd)

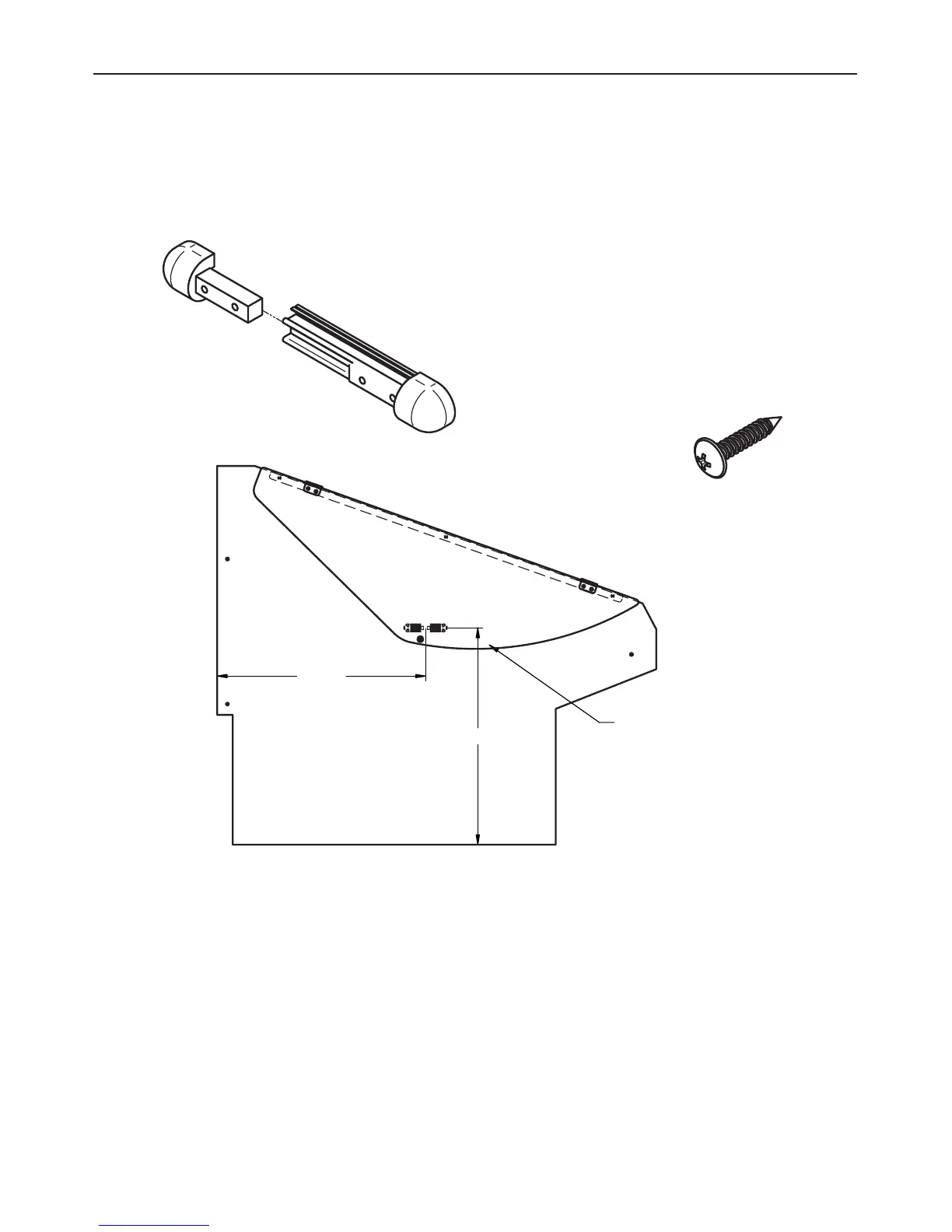

Bumper Installation
1) Locate the Bumper as Indicated Below
2) Mark this Location
3) Positiion Bumper Channel on End
• Install Both End caps on Aluminum Channel
4) Use 300-03-0641 x 4 to Fasten to End Panel
5) Press Bumper over Exposed Screws and Ends Caps
With wing folded down,
Locate the Bumper so that
the Lowest Edge of the End
Wing will not Crash
27.438
26.375
Operation Notes
• Always place both wings in the Down position before attempting to open and/or close the front glass.
• Securely close the front glass, then close side wings.
• Use care when placing wings in the Down position.
• The bumpers offer a reasonable amount of protection from impact, but will not endure excessive abuse.
• The wing is designed to accept pressure from the weight of the glass.
• Be sure that the glass seats properly on the Plexiglas stops to prevent the wings from falling over.
• Fine Tuning and adjustment of the Front Glass may be necessary to ! t glass pro! le.
Front Glass can be adjusted per the recommendations on the following pages. Professional installation and
adjustment is recommended.
