Hussmann DSF - Glass Stop and End Wing Final Position Notes

19
Installation (Cont'd)

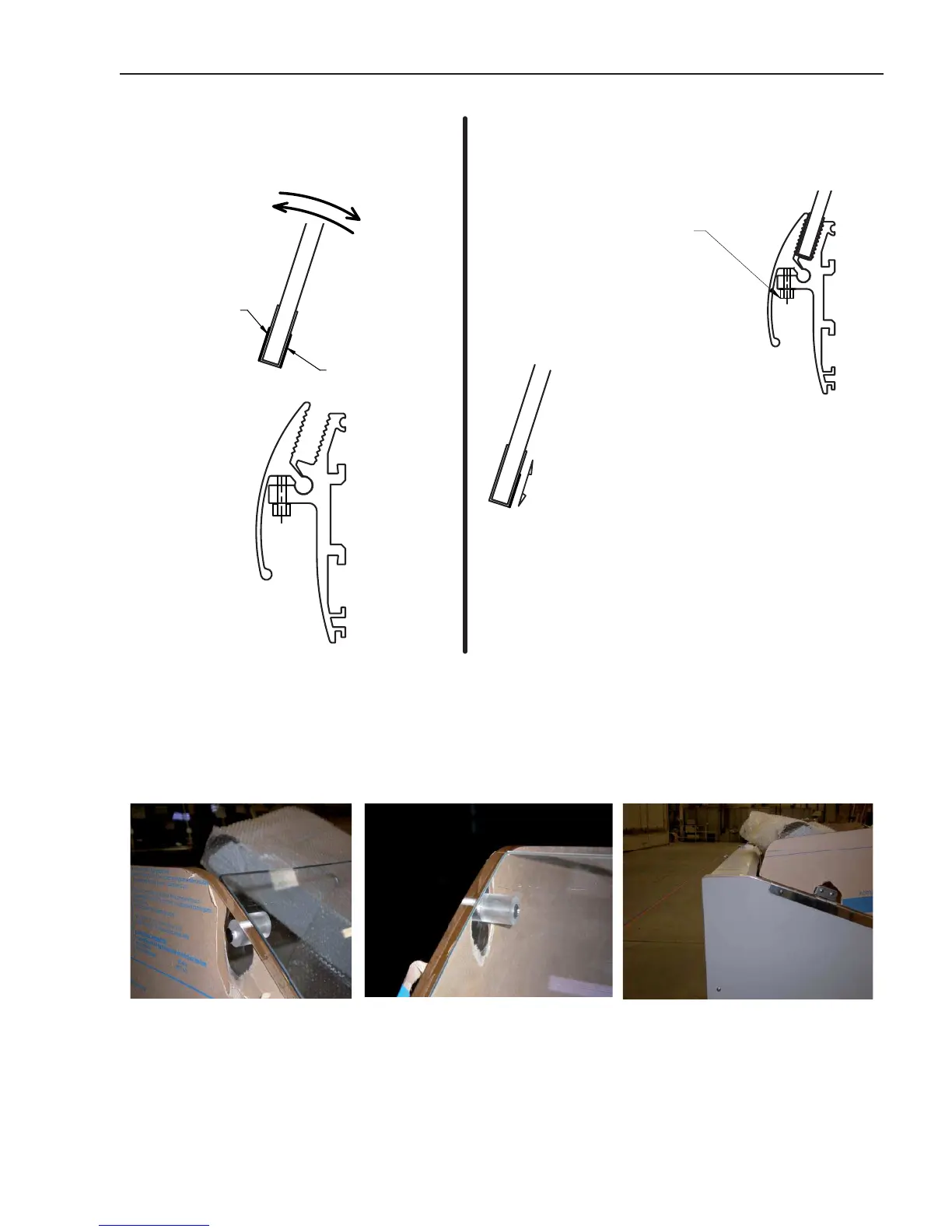

STEP 4:
ATTACH SHIM TO GASKET IN DESIRED
POSITION USING CLEAR 3/8" DOUBLE
SIDED TAPE
PLACE SHIM
HERE TO ROTATE
GLASS UPWARD
STEP 5:
REPLACE SHIMMED
GLASS AND TIGHTEN
ALL CLAMP SCREWS
EVENLY AND SECURELY
CASE
INTERIOR
STEP 6:
CHECK GLASS HEIGHT
AGAINST SPECIFICATIONS(PAGE 13).
REPEAT SHIM PROCEDURE IF MEASURED
HEIGHT IS NOT WITHIN SPECIFICATIONS
ALTER THE SHIM LOCATION ON THE GASKET
TO CHANGE THE DEGREE OF SHIM
PLACE SHIM
HERE TO ROTATE
GLASS DOWNWARD
NOTE: Place shims along the length of the glass in order to evenly distribute clamping forces.
Glass Stop and End Wing Final Position Notes
End Wings and End panels from the factory should have pre-drilled holes for the plex post and wing channel
respectively.
If a hole has not been pre-drilled into the side plex and end panels, observe the following notes:
1) The glass stop post must be precisely located on the end wing. Refer to dimensions G and H on page 16.
2) The wing channel must be located and mounted precisely on top of the end panel. Refer to dimension F on page 16.
