Installation (Cont'd)

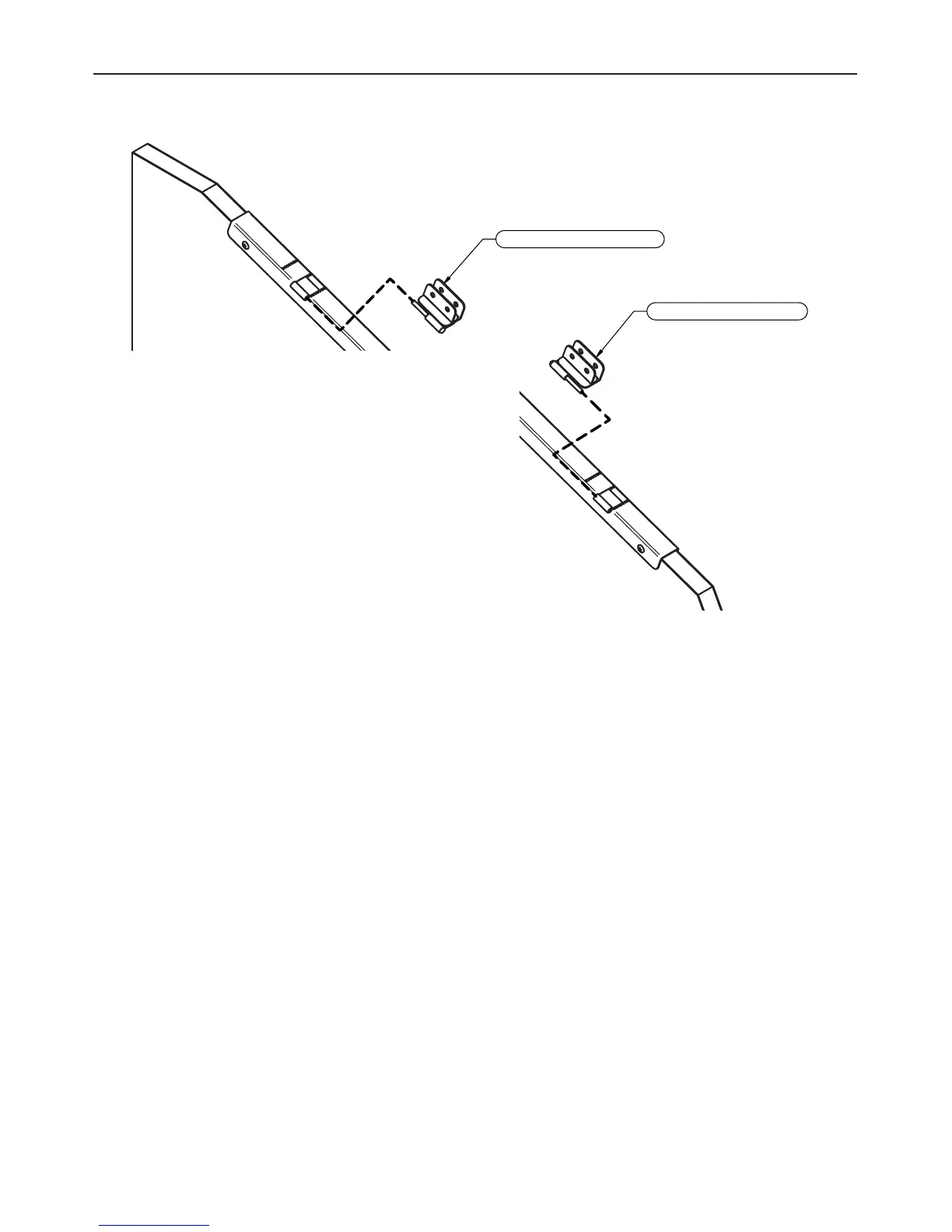

Place Hinges
(Left Wing Assembly Shown)
Outer side of DSF
Case
Inner side of DSF Case
Assemble Right Wing in a Mirrored Configuration
RIGHT HINGE WELDMENT
LEFT HINGE WELDMENT
NOTES:
1) Pins will face in opposite directions, away from the center of the channel.
2) One "Left" and one "Right" Hinge weldment is required for each wing, regardless of which side is being installed.
3) Use tape to hold the upper hinge so that the plex wing can be installed in the next step.
