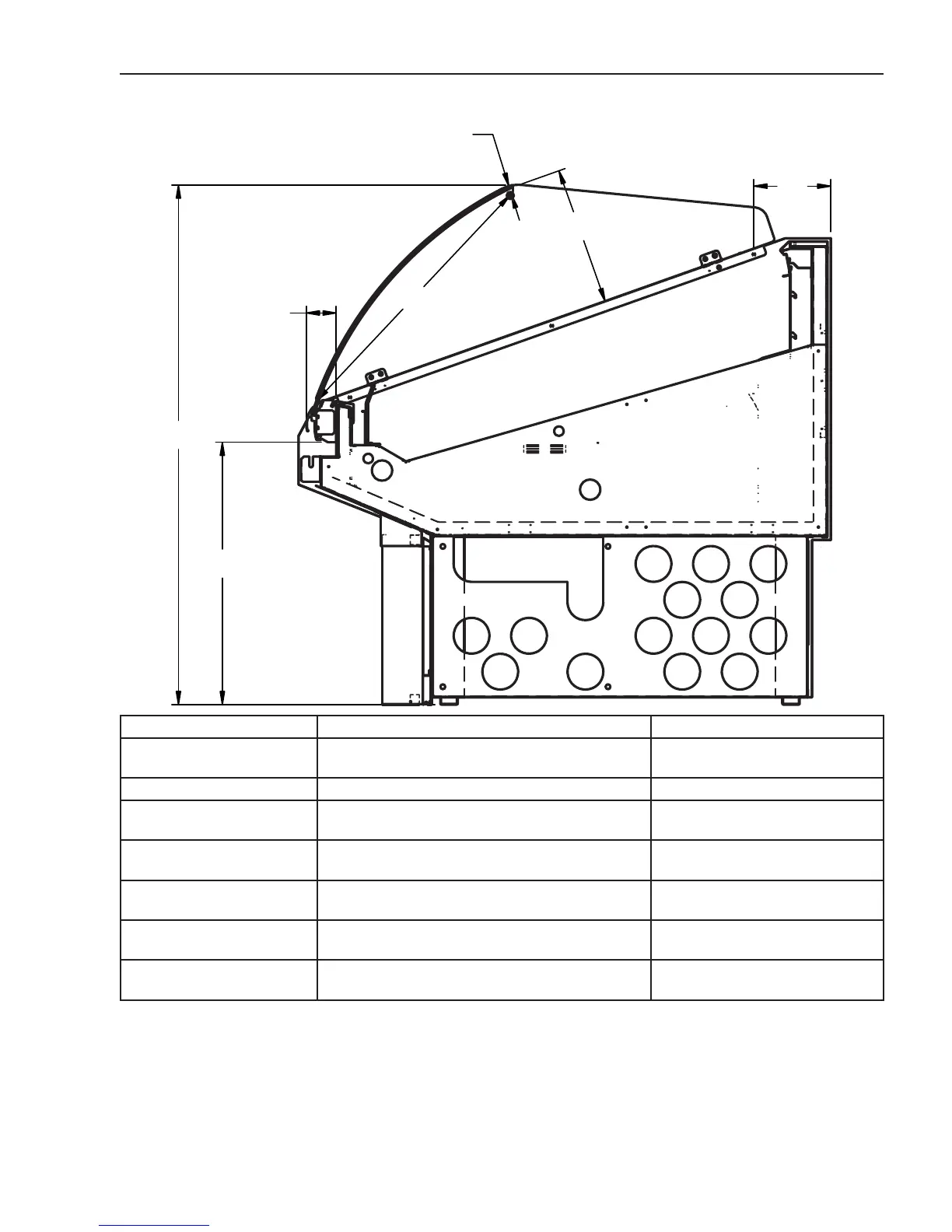

CALLOUT DESCRIPTION MODEL VALUE (Inches)
A Normal Distance from the ground to the bottom of
the hardware (Sampled at the ends)
27-1/4 ~ 27-3/8
B Overall Hardware depth (Hardware fully closed) 3-5/16 ~ 3-7/16
C Overall Distance from the ground to the highest
point on glass (Wings Up)
54-3/8 ~ 54-1/2
D Normal Distance from Wing Channel to highest
point on glass (Wings Down)
14-3/8 ~ 14-7/16
E Distance from the back of the end panel to the
! rst hole in the Wing Channel
8 ~ 8-1/16
F Distance from the front corner of the end wing to
the center of the glass stop
28 ~ 28-1/8
G Distance from the outside edge of the plex wing
to the center hold of the glass stop
5/8 ~ 11/16
