Hussmann DSF - End Wing Attachment; Plex Post Installation

15
Installation (Cont'd)

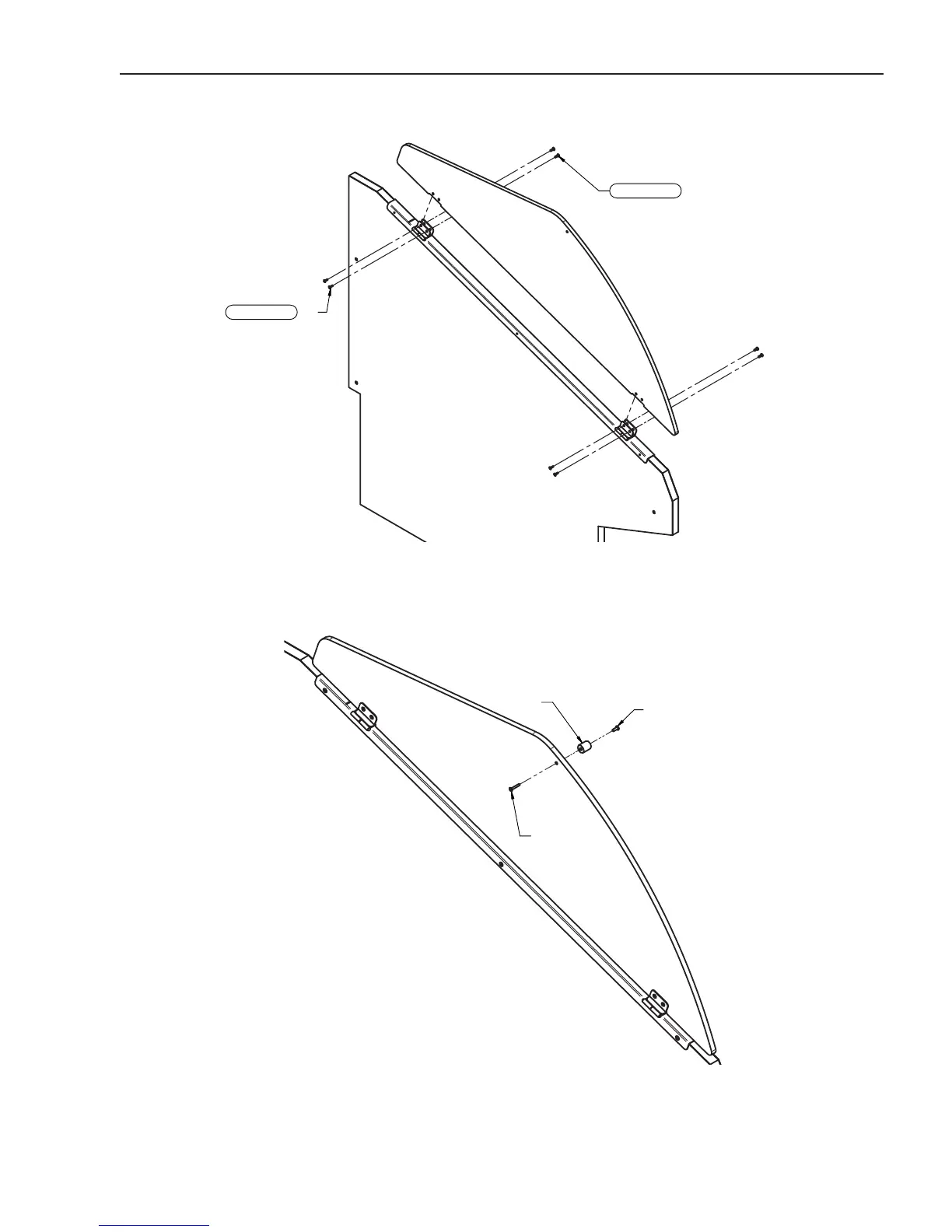

End Wing Attachment
(Left Wing Shown)
Outer side of
DSF Case
Inner side of
DSF Case
175-01-0369 x 4
300-03-0610 x 4
1) Place the plex wing into channels on the hinges.
2) Align all 4 holes on the wing with respective holes on hinges.
3) Securely fasten the binding posts. All binding posts are installed on the inner side.
Plex Post Installation
025880
175-01-0369
300-03-0620
Outer side of
DSF Case
Inner side of
DSF Case
Assemble Right Wing in a Mirrored Configuration
