Hussmann DSF - Page 43

43
HUSSMANN_GDF_1.1 SHEET SIZE D
MATERIAL - N/A
THIRD
ANGLE
PROJECTION
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES.
DRAWN BY -CRAIG BOOREY
APPROVED BY - CRAIG BOOREY
TOLERANCES ARE:
DECIMALS .XX
u.03, .XXX u.010
ANGLES
u 2v
DATE DRAWN - 4-5-16
ECN-CAP-0000240
REVIEWED BY -CRAIG BOOREY
REF -
3003378

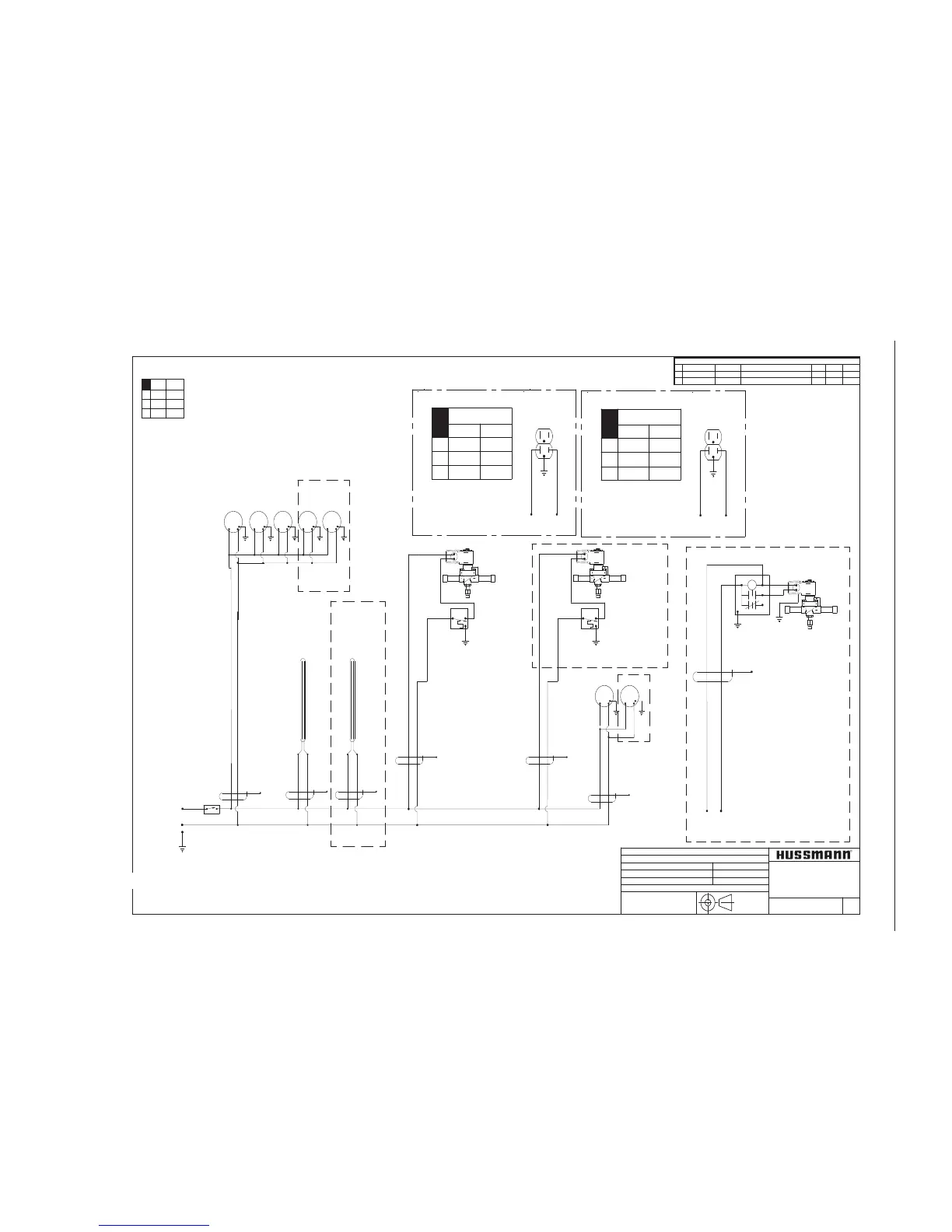

DIAGRAM-DSF-24-10I
-45O-10I-R
REV ECN DATE REVISION DESCRIPTION REV BY CHKD BY APPR BY
A ECN-CAP-0000240 2016/04/05 RELEASED TO PRODUCTION CB CB CB
REVISION HISTORY
NOTES:
CASE MUST BE GROUNDED
WHEN PASSING WIRES THROUGH METAL HOLES A GROMMET MUST BE USED
A
SHEET 1 OF 1
CIRCUIT #1
L1
LOADING
4.9
120V
EVAP FANS
(5) 125-01-0615A
0.62A @ 120VAC
BUNDLE
BROWN
HUMDITY FAN
(2) 125-01-2011-H
.16A @ 120VAC
BUNDLE
BROWN
BLACK # 14
WHITE # 14
BLACK # 14 WHITE # 14
M M
BLACK # 14
WHITE # 14
WARMER
125-01-0767
RAYCHEM
10BUT-CR-10W
30W .28A
@ 120VAC
BUNDLE
PURPLE
T
X
4
N
3
1
2
FLUSH SYSTEM
SOLENOID
225-01-1335
BUNDLE
LABELED
FLUSH
SYSTEM
BLACK # 14 WHITE # 14
TIME CLOCK
8045-00/20
125-01-0710
L1
N
CIRCUIT #1
TIPPETTE SWITCH
125-01-0311
L1
N
G
LOADING
120 V
L1
L2
L3
~
~
~
15.0
NOTE: CASE MUST BE
GROUNDED
CIRCUIT #2
~120 VAC - 1Ø - 50/60 Hz.
DUPLEX
(4) 125-01-3178
BLK # 14
WHT # 14
GRN # 14
LOADING
120 V
L1
L2
L3
~
~
~
15.0
NOTE: CASE MUST BE
GROUNDED
CIRCUIT #3
~120 VAC - 1Ø - 50/60 Hz.
DUPLEX
(4) 125-01-3178
BLK # 14
WHT # 14
GRN # 14
BUNDLE
BLACK &
WHITE
BLACK # 14
WHITE # 14
BLACK # 14 WHITE # 14
WARMER
125-01-0767
RAYCHEM
10BUT-CR-10W
100W 0.93A
@ 120VAC
BUNDLE
PURPLE
T-STAT
225-01-0707
SOLENOID
225-01-1332
.14A @ 120VAC
M M
M
M
M
FANS FOR WEDGE
HEATER FOR WEDGE
OPTIONAL
BUNDLE
BLACK &
WHITE
BLACK # 14 WHITE # 14
T-STAT
225-01-0707
SOLENOID
225-01-1332
.14A @ 120VAC
SOLENOID FOR WEDGE
FAN FOR WEDGE
Wiring Diagrams (Cont'd)
