2.1
START-UP
The V18 control console has been designed to simplify the operation of the saw so that the operator has the ability to stop
any function at any time, and to be able to control all the functions of the saw remotely.
We can not overstress the importance of familiarizing yourself with the controls of the V18 prior to starting the machine for
the rst time.
NOTE: WHEN STARTING THE V18 FOR THE FIRST TIME MAKE SURE THAT THE PRESSURE IS 650 ± 25 PSI
(900psi for extended head machines), AND THAT THE BLADE IS RUNNING IN A COUNTERCLOCKWISE DIRECTION
AS VIEWED FROM THE DOOR SIDE THE OF HEAD.
CONTROL CONSOLE
The operator console has the ability to articulate to suit the preference of the operator. It is arrayed with a complete set
of controls to operate both the hydraulic and electrical functions of the saw. All of the selector switches must be placed in
their neutral center position for the hydraulics to start. This is a safety feature which is designed to prevent any un-wanted
hydraulic actuation without the conscious intervention from the operator.
SECTION 2 - OPERATING INSTRUCTIONS

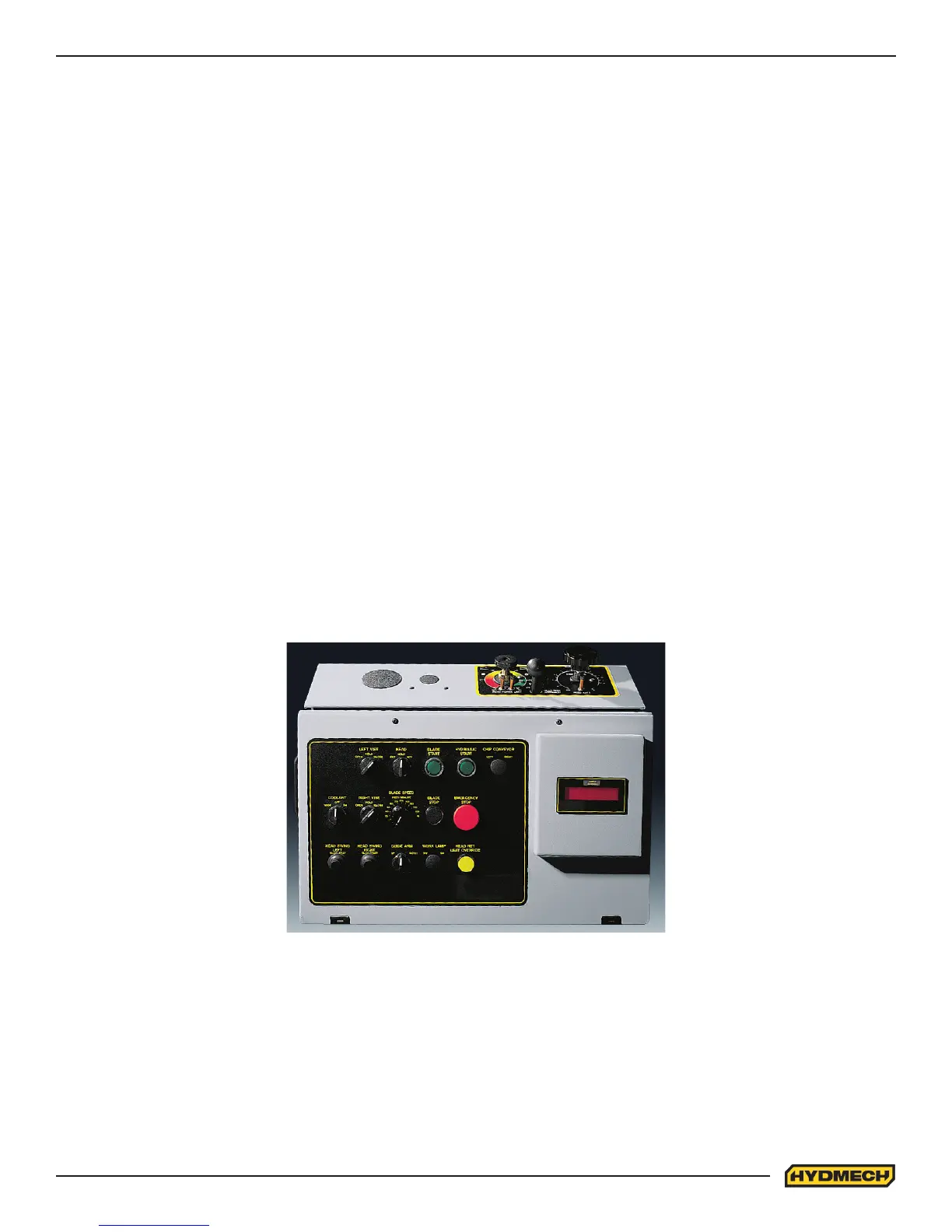

V18 Control Console
(Optional Equipment Shown)
To Next Page
