2.2
SAW CUTTING CONTROLS
This section has been prepared to give the operator the ability to set up the saw for most cutting situa tions. The saw is
equipped with variable blade speed control and hydraulic feed control, as well as an extensive door chart to guide the
operator to the correct setting of these controls.
HYDRAULIC FEED CONTROL
The hydraulic feed controls are located on top of the control console and consist of the Feed Force Setting knob, the Feed
Rate knob and the Head Fast Approach lever. These controls allow the operator to independently control both the Feed
Force and the Feed Rate; two essential settings which are required for an optional cut.
MANUAL OPERATION CONTROLS
The electrical switches and buttons on the control panel allow for full manual operation of the V18. The operation of each
is detailed on the following pages.

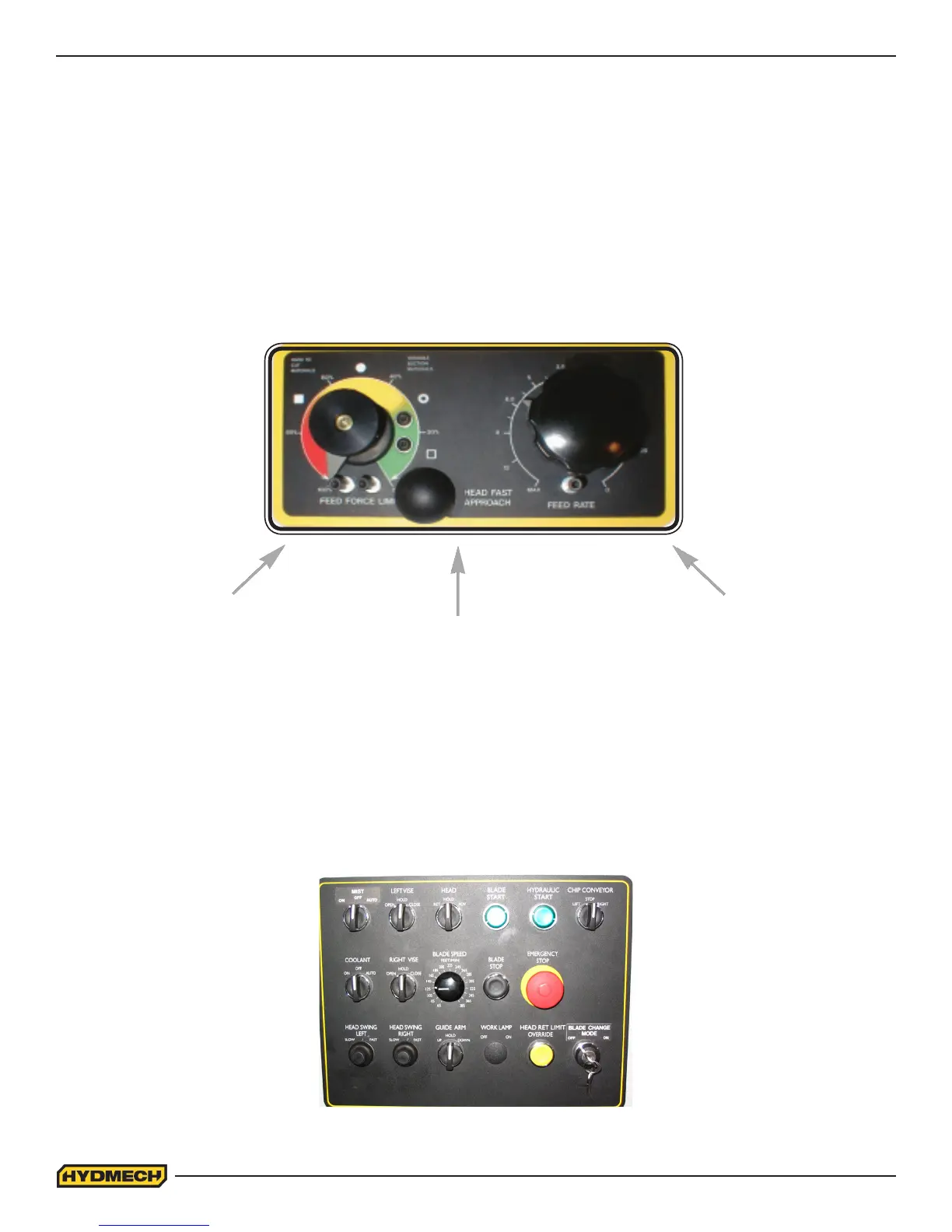

Manual operation controls.
Feed Force Knob
Used to set Feed Force
Limit (counterclockwise
rotation to increase and
clockwise rotation to de-
crease).
Fast Approach Lever
Depress for fast head
approach.
Feed Rate Knob
Used to control the speed
of head advancement
To Next Page
