Hyd-Mech V18 - Cylinder Assemblies; Gland Assemblies Part Numbers; Piston Assemblies Part Numbers

5.2

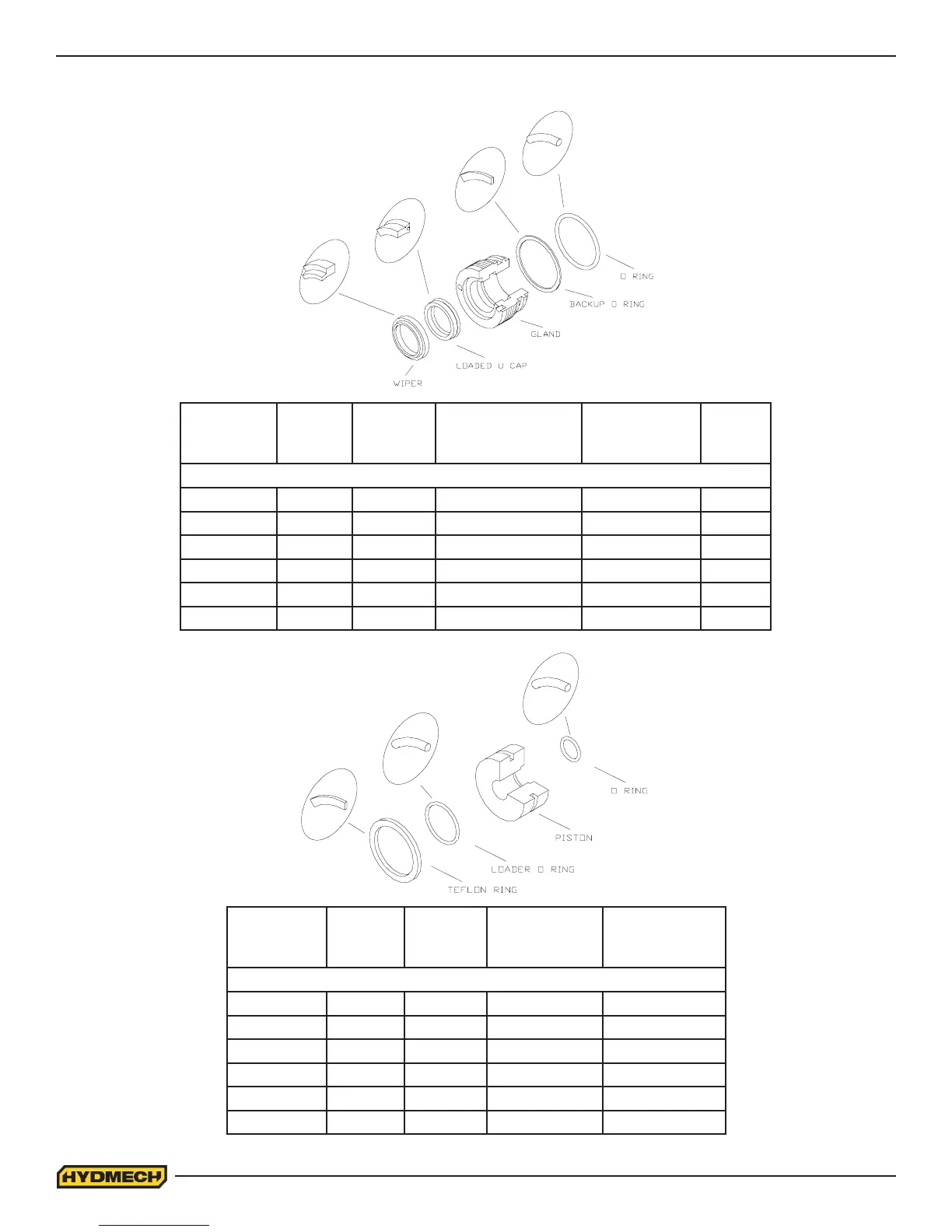

CYLINDER ASSEMBLIES
GLAND ASSEMBLIES
PISTON ASSEMBLIES
CYLINDER
DIAMETER
E
O RING
F
BACKUP
O RING
G
GLAND
H
LOADED
U CAP
I
WIPER
2.0” 362960 362785 CS20-GL-01A 362830 363330
2.5” 362970 362790 CS25-GL-01B 362815 363335
3.0” 362985 362795 CS30-GL-01A 362815 363335
3.5” 362995 362800 CS35-GL-01A 362835 363340
4.0” 363005 362805 CS40-GL-01A 362840 363345
5.0” 363015 362810 CS50-GL-01A 362840 363345
CYLINDER
DIAMETER
A
TEFLON
RING
B
LOADER
RING
C
PISTON
D
O-RING
2.0” 363035 362950 CS20-PS-01B 362905
2.5” 363040 362965 CS25-PS-01 362910
3.0” 363045 362980 CS30-PS-01 362910
3.5” 363050 362990 CS35-PS-01 362925
4.0” 363055 363000 CS40-PS-01 362940
5.0” 363060 363010 CS50-PS-01 362940
