HYDAC ELECTRONIC EDS 3000 - PIN Connection

22 EDS 3000 IO-Link
Status: 2022-07-14 HYDAC ELECTRONIC GMBH Part no.: 669897

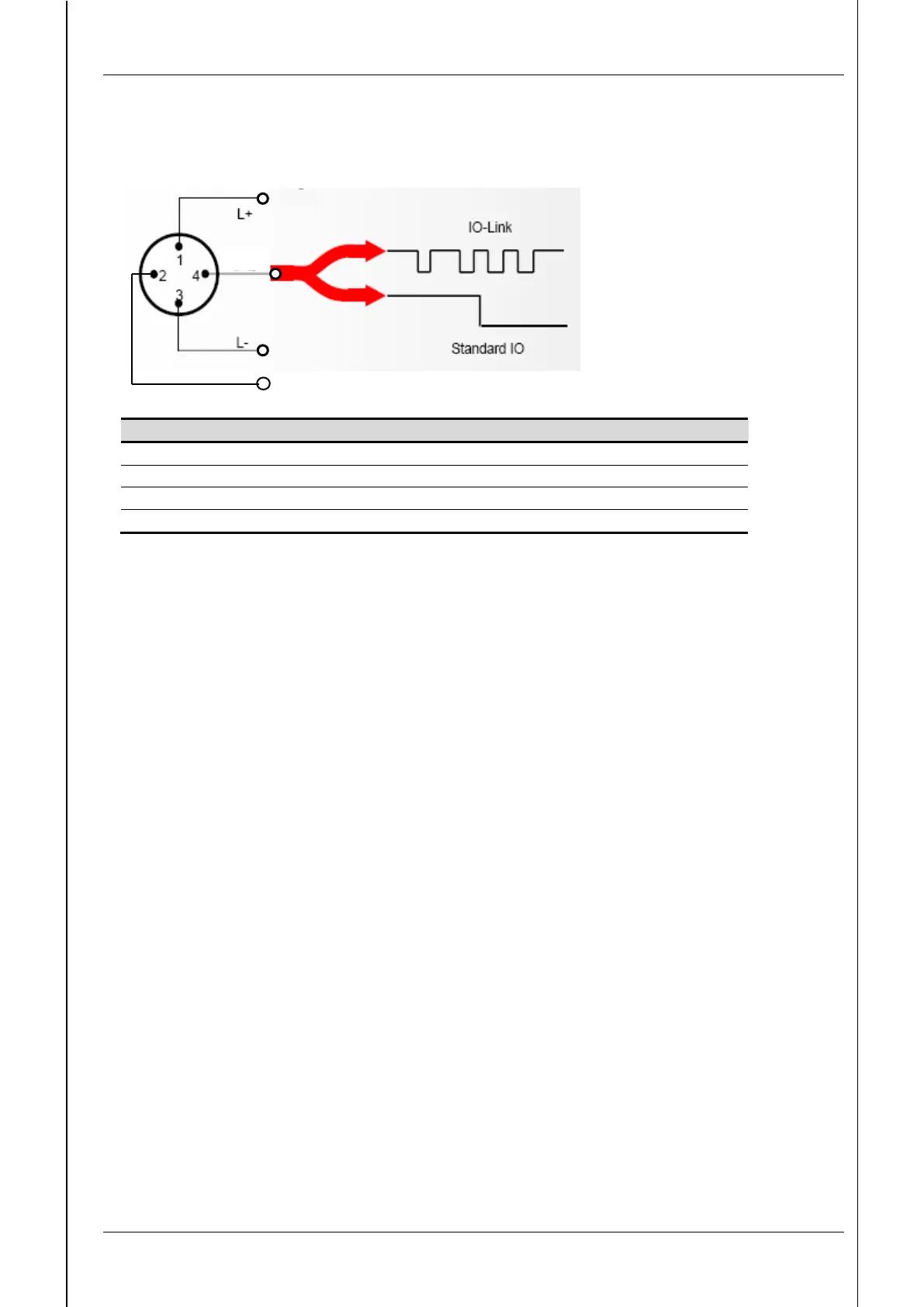

21 PIN connection
M12x1, 4 pole
Pin
Signal
Designation
1
L+
+U
B
2
Q2/QA
Switching output (SP2) / analogue output
3
L-
0 V
4
Q1/C
Switching output (SP1) / IO-Link Communication
Q2/QA
Q1/C
