HYDAC ELECTRONIC EDS 3000 - Parameterisation with ZBE P1-000; Reading the Digital Display

12 EDS 3000 IO-Link
Status: 2022-07-14 HYDAC ELECTRONIC GMBH Part no.: 669897

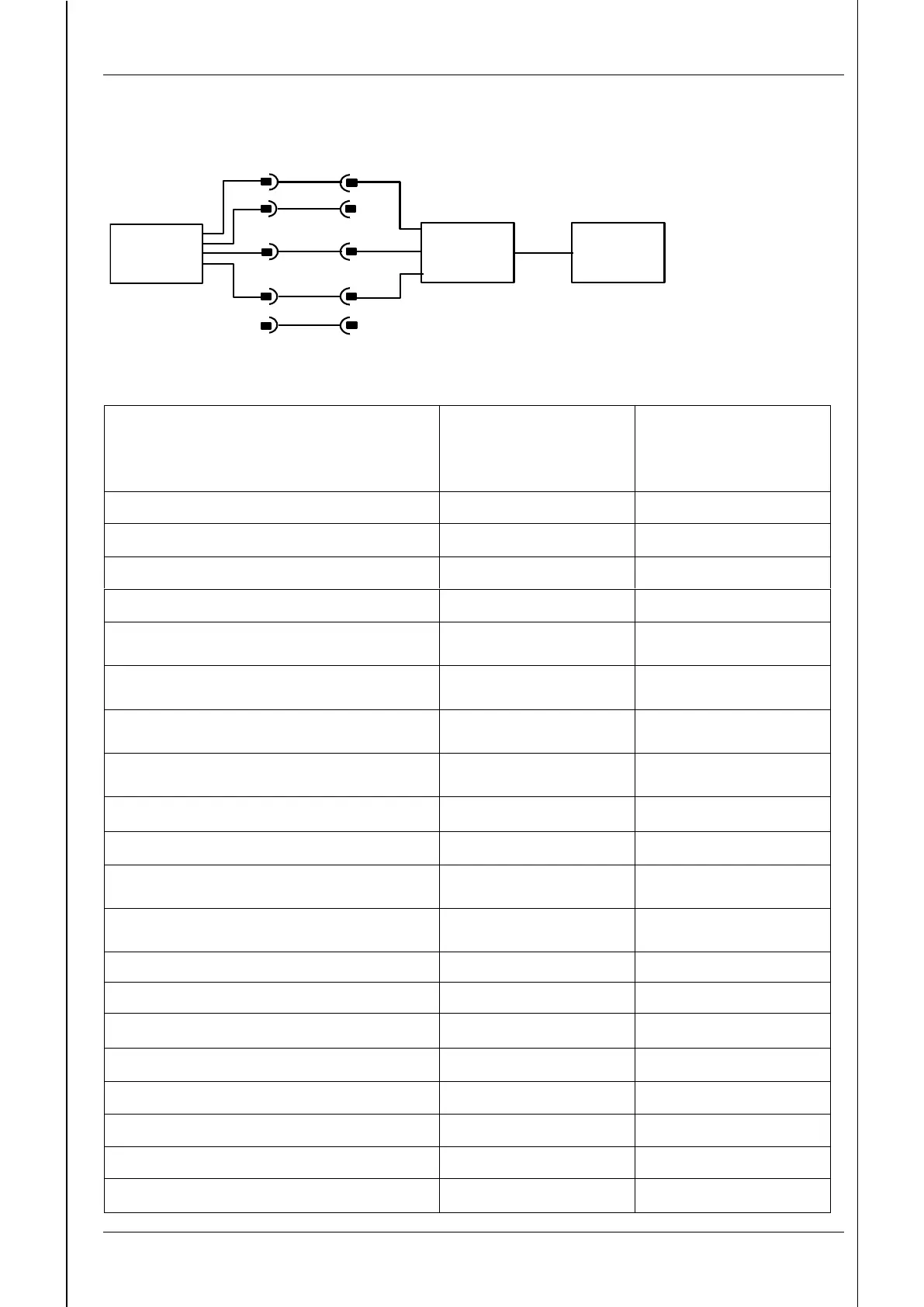

12.5 Parameterisation with ZBE P1-000
(Connection via standard cable)
Device
1
ZBE P1
2
3
4
5
1
2
3
4
5
L+
L-
USB
Q2 / QA
PC
Q1 / C
13 Reading the digital display
Designation
Representation
on
7-segment
display
ASCII
representation
Switch point, output 1
SP 1
SP1
Switch-back point, output 1
RP 1
RP1
Switch point, output 2
SP2
SP2
Switch-back point, output 2
RP2
RP2
Pressure window upper value
Output 1
FX 1
FH1
Pressure window lower value
Output 1
FL 1
FL1
Pressure window upper value
Output 2
FX2
FH2
Pressure window lower value
Output 2
FL2
FL2
Add-on functions
EF
EF
Reset
RES
RES
Switch delay time
Output 1
DS 1
dS1
Switch delay time
Output 2
DS2
dS2
Switch-back delay time, output 1
DR 1
dR1
Switch-back delay time, output 2
DR2
dR2
Output 1
OV 1
Ou1
Output 2
OV2
Ou2
Current output
,
I
Voltage output
V
U
N/O when window function is active
FNO
FNO
N/C when window function is active
FNC
FNC
