HYDAC ELECTRONIC EDS 3000 - Electrical Connection; Mechanical Connection; Zubehör

30 EDS 3000 IO-Link
Status: 2022-07-14 HYDAC ELECTRONIC GMBH Part no.: 669897
25 Zubehör

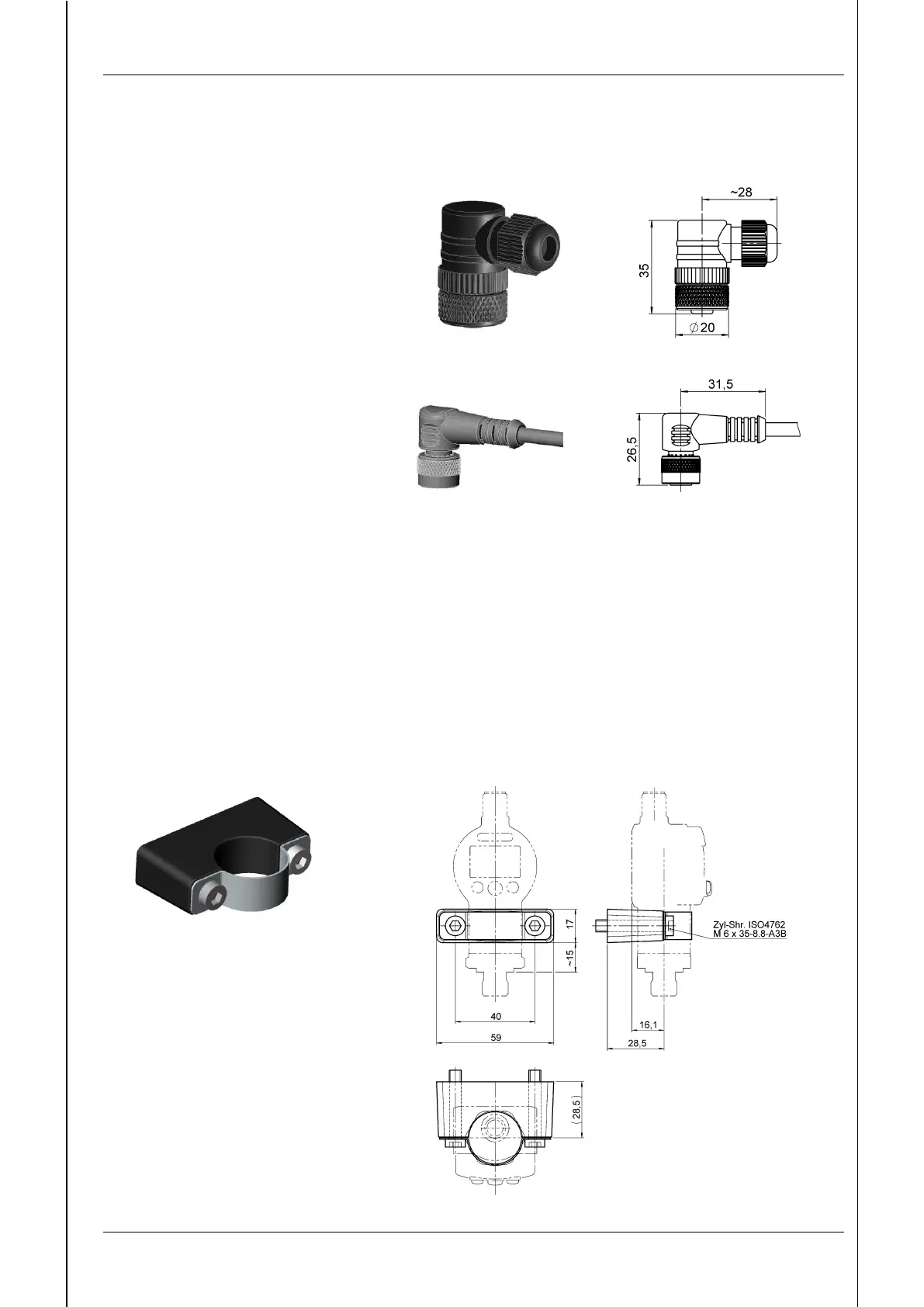

25.1 Electrical connection
ZBE 06 (4 pole)
Mating connector M12x1, right
angle
Cable diameter:
3.3 .. 6.6 mm
(0.13 .. 0.26 inch)
Part No.: 6006788
ZBE 06-02 (4 pole)
Mating connector M12x1, right-
angle
with 2 m (78.7 inch) cable,
Part No.: 6006790
ZBE 06-05 (4 pole)
Mating connector M12x1, right-
angle
with 5 m (197 inch) cable,
Part No.: 6006789
Colour code:
Pin 1: brown
Pin 2: white
Pin 3: blue
Pin 4: black
25.2 Mechanical connection
ZBM 3000
Clamp for wall-mounting, screw-type fitting
(Material of lower section: TPE Santoprene 10187; Material of top section:
Steel strip DIN 95381-1.4571)
Part no.: 3184630
