14 EDS 3000 IO-Link
Status: 2022-07-14 HYDAC ELECTRONIC GMBH Part no.: 669897
14 Output Signals
14.1 Switching outputs
The ENS 3000 IO-Link has 2 switching outputs whose switching behaviour (window
mode or two-point mode) is parameterisable.
Note:
If the sensor is operated at the Class-B port of an IO-Link master, pin 2 of the
sensor may not be connected to pin 2 of the master, as pin 2 of the master
serves as a current source for devices with increased power demand or for
actors.
In addition to the IO-Link Smart Sensor Profile Specification, a switch and switch-back
delay can be set in HYDAC IO-Link sensors.
Caution!
Exceeding or falling below the measuring range leads to a limitation to the
corresponding upper or lower limit of the measuring range.
14.1.1 Two-point mode - Switch point setting (SP)
One switch point and one switch-back point can be set for each switching output. The
particular output will switch when the pre-set switch point is reached and then switch
back when the level drops below the switch-back point.

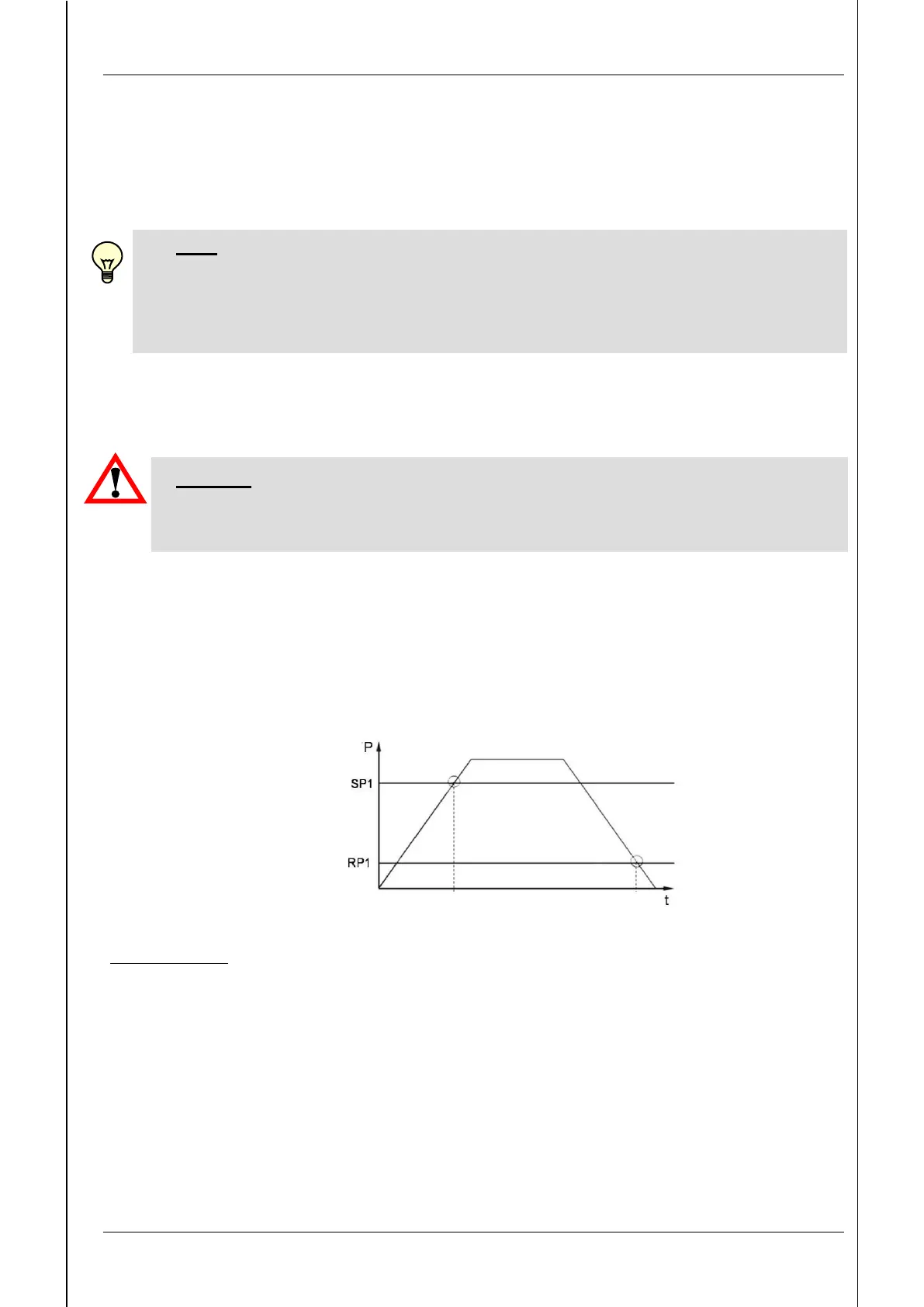

Example for switch point 1 (N/C and N/O function):
Abbreviations: "SP1", "SP2" = switch point 1 or 2
"RP1", "RP2" = switch-back point 1 or 2
