ContaminationSensor CS1000 CS1220 VIMS Features
HYDAC Filter Systems GmbH
en
Page 17 / 36
CS1000 CAT-VIMS3478916 en 2009-04-15.doc 2009-04-15

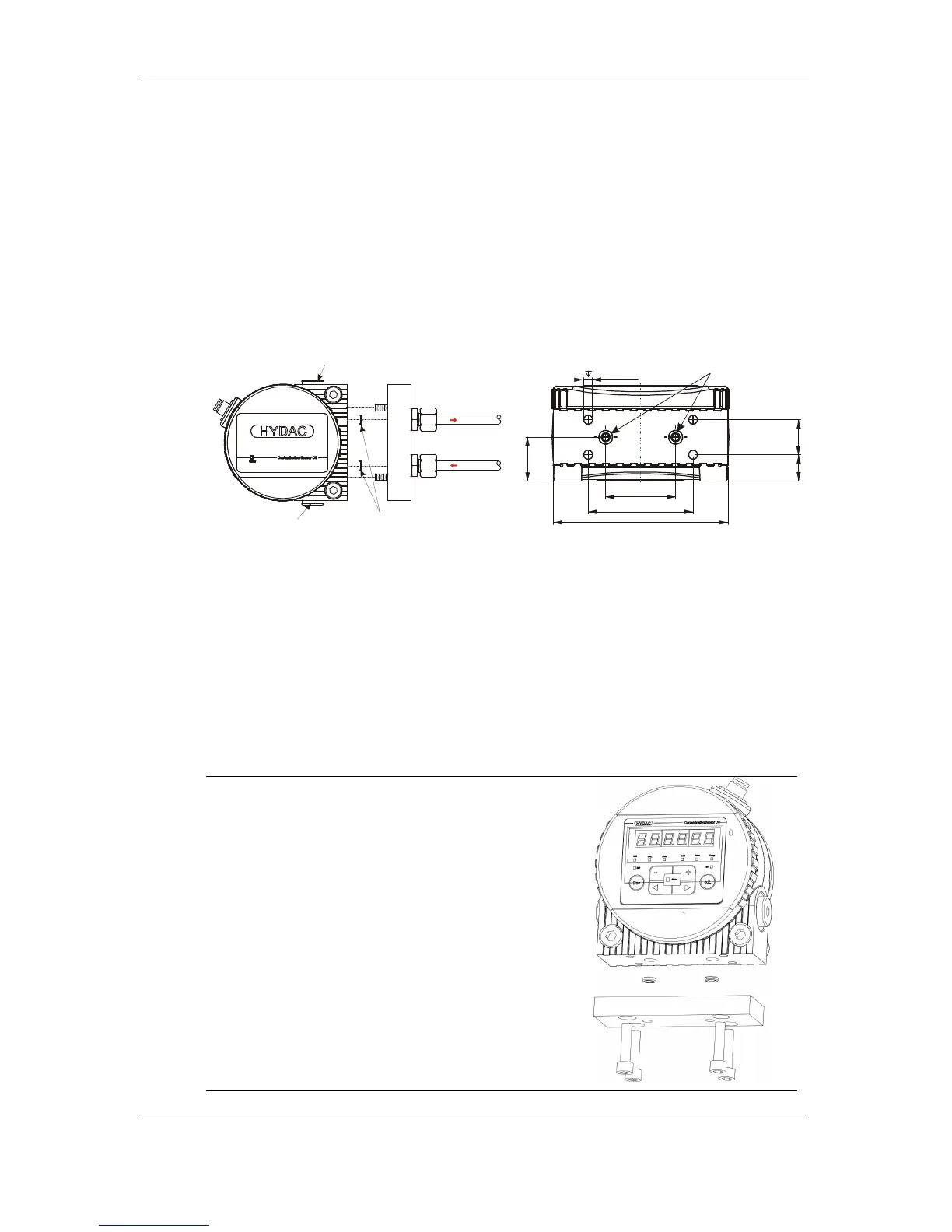

Hydraulic connection types
The direction of flow through the CS has to be from bottom to top. Use one port,
D <-> C as the INLET and the other port as the OUTLET. The direction of the flow
depends on the mounting situation.
Flange connection type (Type CS1xxx-x-x-x-x-1/-xxx)
Hydraulic connection is done via ports C and D. Two O-rings are used to form a seal
between the CS and a flange, connecting plate or manifold mount. Four M6 threads
are prepared for fixing the CS1000. Ports A and B are sealed off with screw plugs
[1]. Sealing with the manifold block or mounting plate is done via two O-rings [2]
(4.48 x 1.78 FPM, see Chapter "Spare Parts + Accessories").
[1]
The direction of flow has to be from
bottom (C) to top (D).
View from below.
All dimensions in mm.
Fastening / mounting the CS1000
When attaching the CS make sure that the direction of flow is from bottom to top.
Use the one (lower) port as the INLET and the other (upper) port as the OUTLET.
When selecting the installation site, take ambient factors like the temperature, dust,
water, etc. into account.
The CS is designed for IP67 according to DIN 40050 / EN 60529 / IEC 529 / VDE
0470.
Connecting plate or valve manifold mounting:
using 4 cylindrical screws with an M6
hexagonal socket according to ISO4762.
