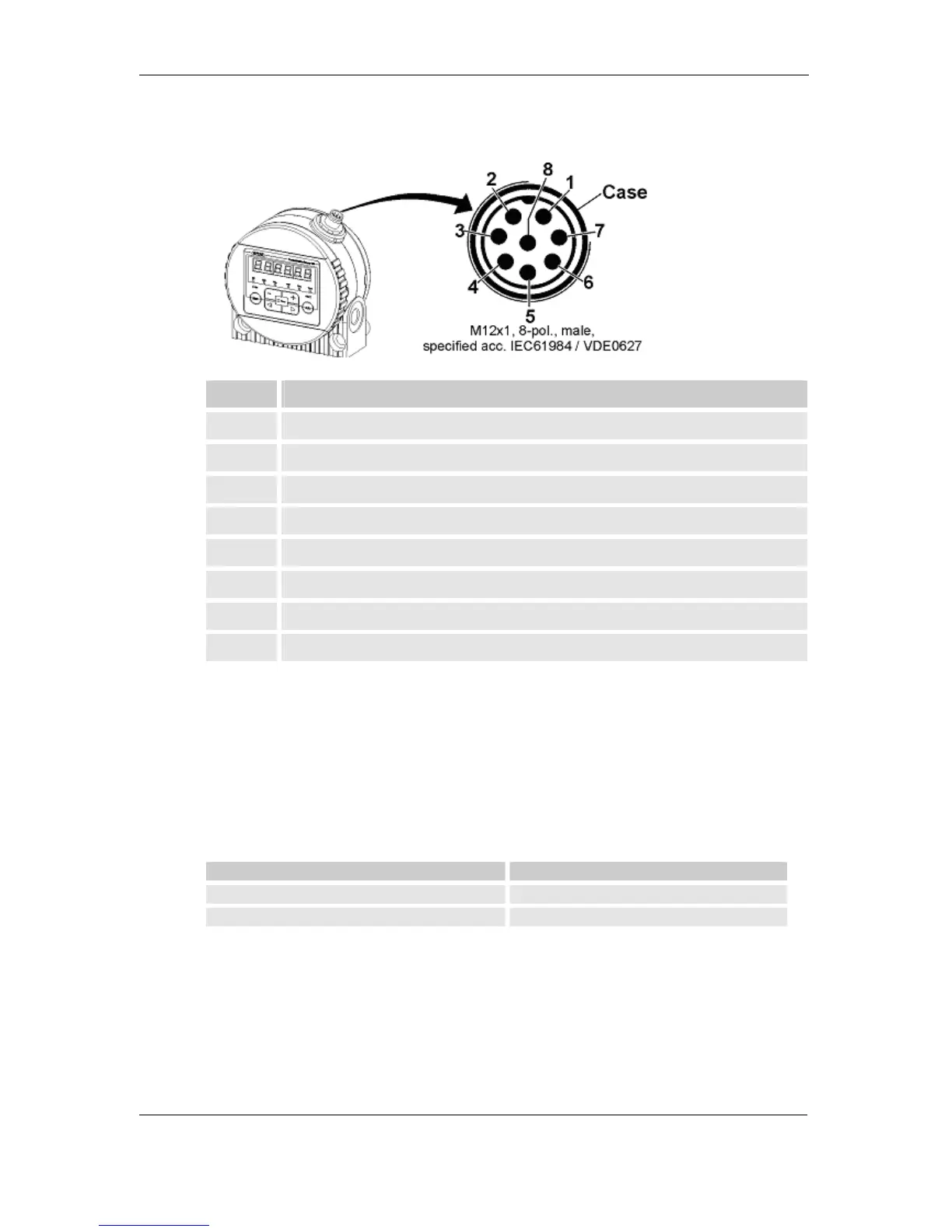

Electrical connection of the CS1000
Pin assignment
Pin Assignment
1 Supply voltage 9 – 36 V DC
2 Analog output + ISO < 4µm
3 GND for supply voltage
4 GND for analog outputs
5
HSI (HYDAC Sensor Interface)
6 Analog output + ISO < 6µm
7 Analog output + ISO < 14µm
8 Analog output + status
The analog output is an active source 0 - 5 V DC.
There is contact between the plug housing and the CS housing.
The analog output feature an open connector out that is able to sink the 1 mAmp
drive current from the ECM and will not interfere with the 22k pull up resistors.
Situation Signal level for ECM
Cable shortcut 0V
Cable break 5V
