Connection cable - Assignment / Color coding

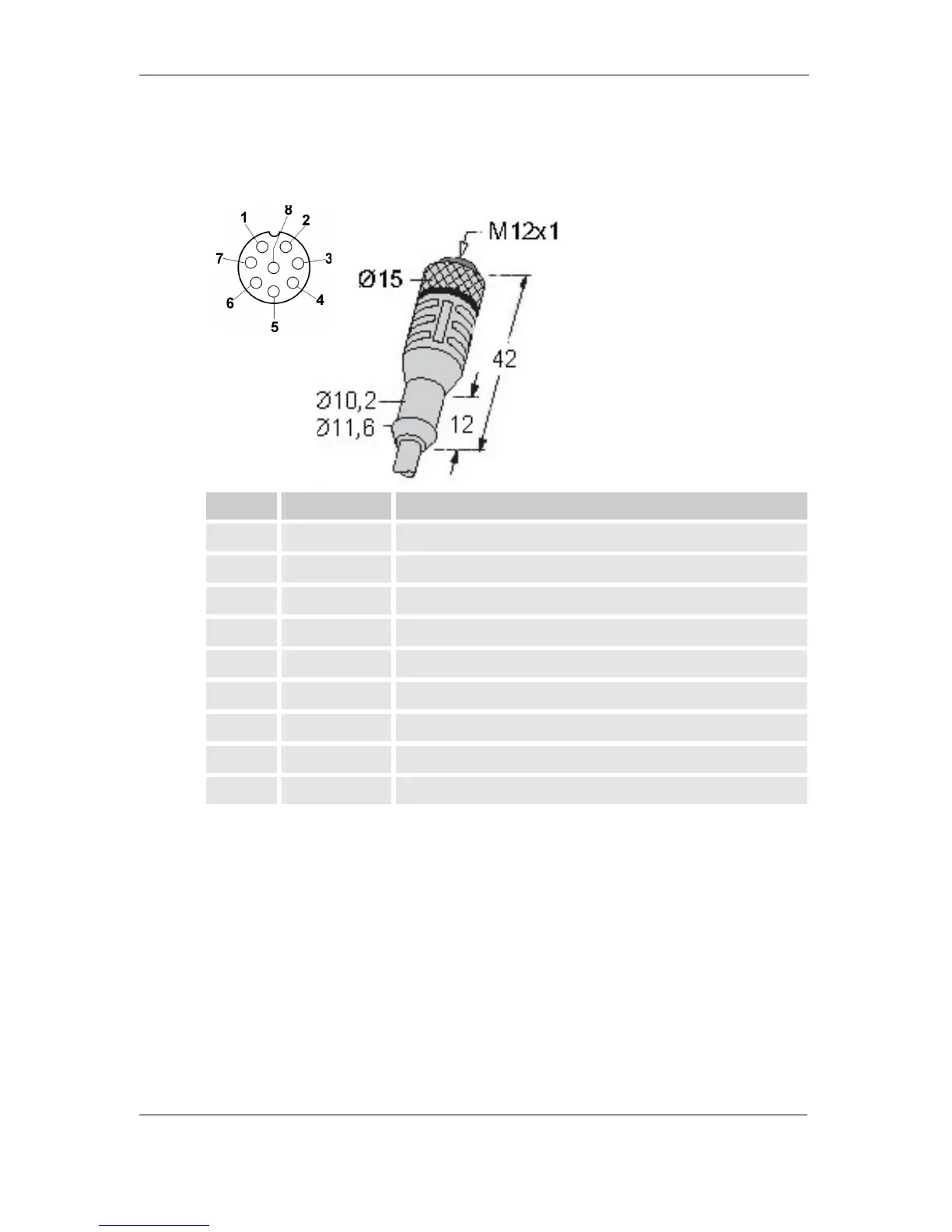

Our accessories list includes connection cables of various lengths with one
connection plug (8-pole, M12x1, according to DIN VDE 0627) and an open end.
HYDAC accessory cable color coding is listed in the table below.
Pin Color Connection to
1 White Supply voltage 9 – 36 V DC
2 Brown Analog output + ISO < 4µm
3 Green GND for supply voltage
4 Yellow GND for analog outputs
5 Gray
HSI (HYDAC Sensor Interface)
6 Pink Analog output + ISO < 6µm
7 Blue Analog output + ISO < 14µm
8 Red Analog output + status
Case - Screen
