Selecting the measurement point
Proceed carefully when selecting a suitable measuring point in order to obtain
cleanliness values that are continuous and coherent in real time.
A
B
2
A
B
1
3
A
2
1
B

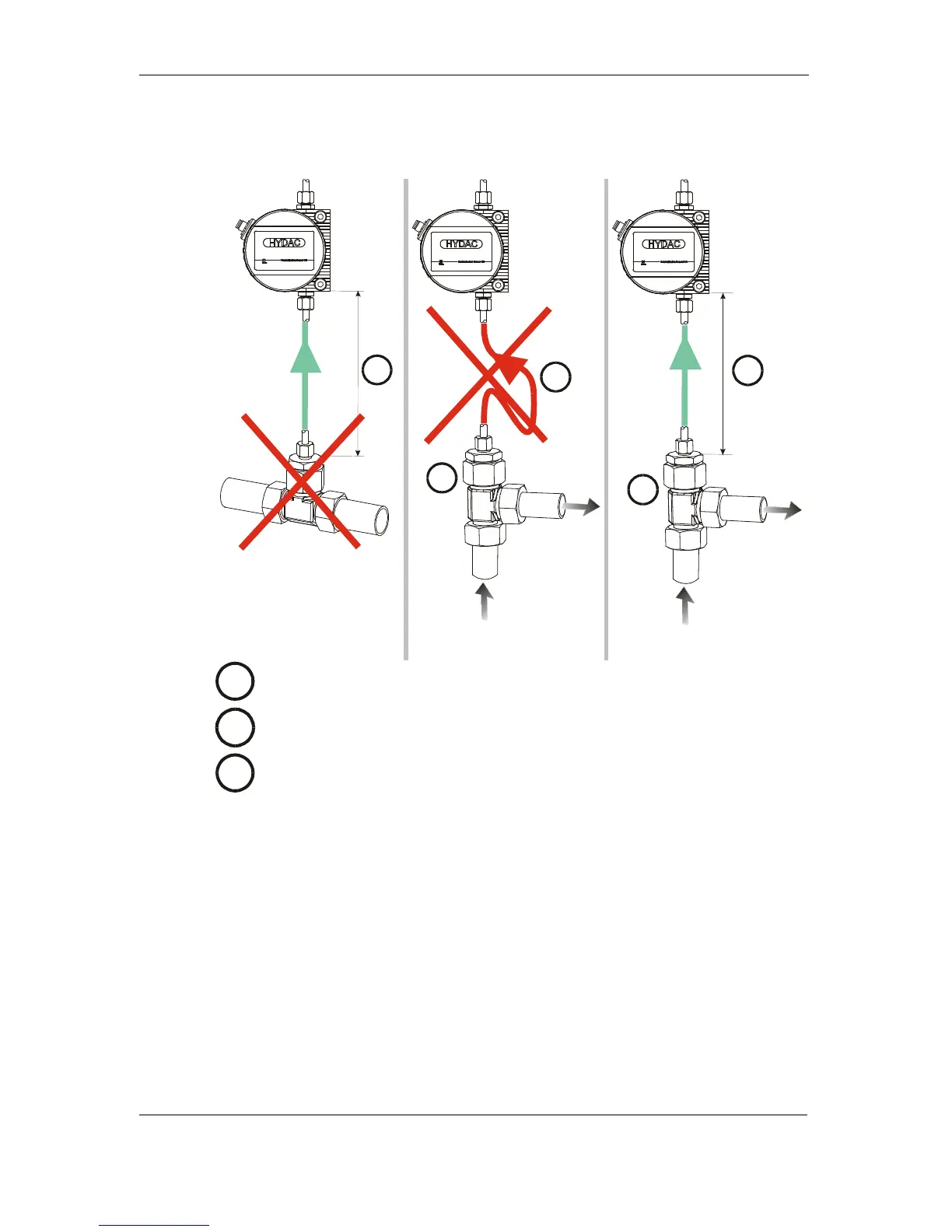

INCORRECT INCORRECT OK
1
The test point has to be selected so that the measured volume is taken
from a turbulent flow area, e.g. a pipe bend.
2
The CS has to be installed in the vicinity of the test point in order to obtain
precision-timed results.
3
While installing the measurement line, avoid creating a "siphon" trap for
sedimentation (particle deposits in the line).
