Hydac ContaminationSensor CS1220 VIMS User Manual

ContaminationSensor CS1000 Status messages
HYDAC Filter Systems GmbH
en
Page 27 / 36
CS1000 CAT-VIMS3478916 en 2009-04-15.doc 2009-04-15
Status messages

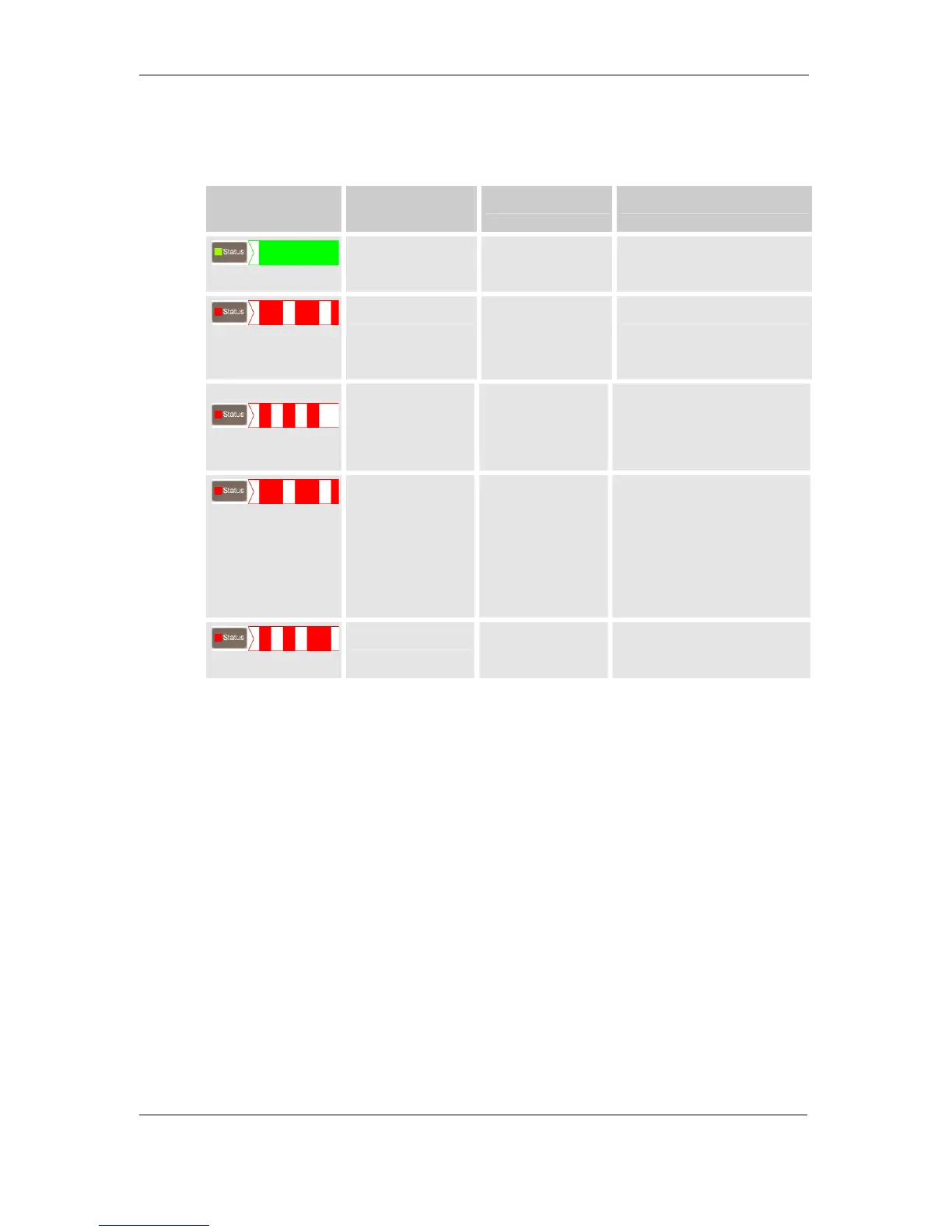

Status LED / display
LED Blink code
Singal output
PIN 8
Status To do
1.25V
CS o.k. ---
2.00V The sensor is
below its
measurement
range ISO 9/8/7
---
1.75V
Flow insufficient
Check that the flow is
between 30 - 300 ml/min.
Increase inlet pressure or
reduce outlet pressure.
2.25V
No measured
value
Check flow
When the oil cleanliness is
below the measurement
limit (ISO 9/8/7), it can
take a few measuring
cycles until measured
values are outputed
1.50V
Device error
Reset (re-supply voltage)
or contact HYDAC
