22

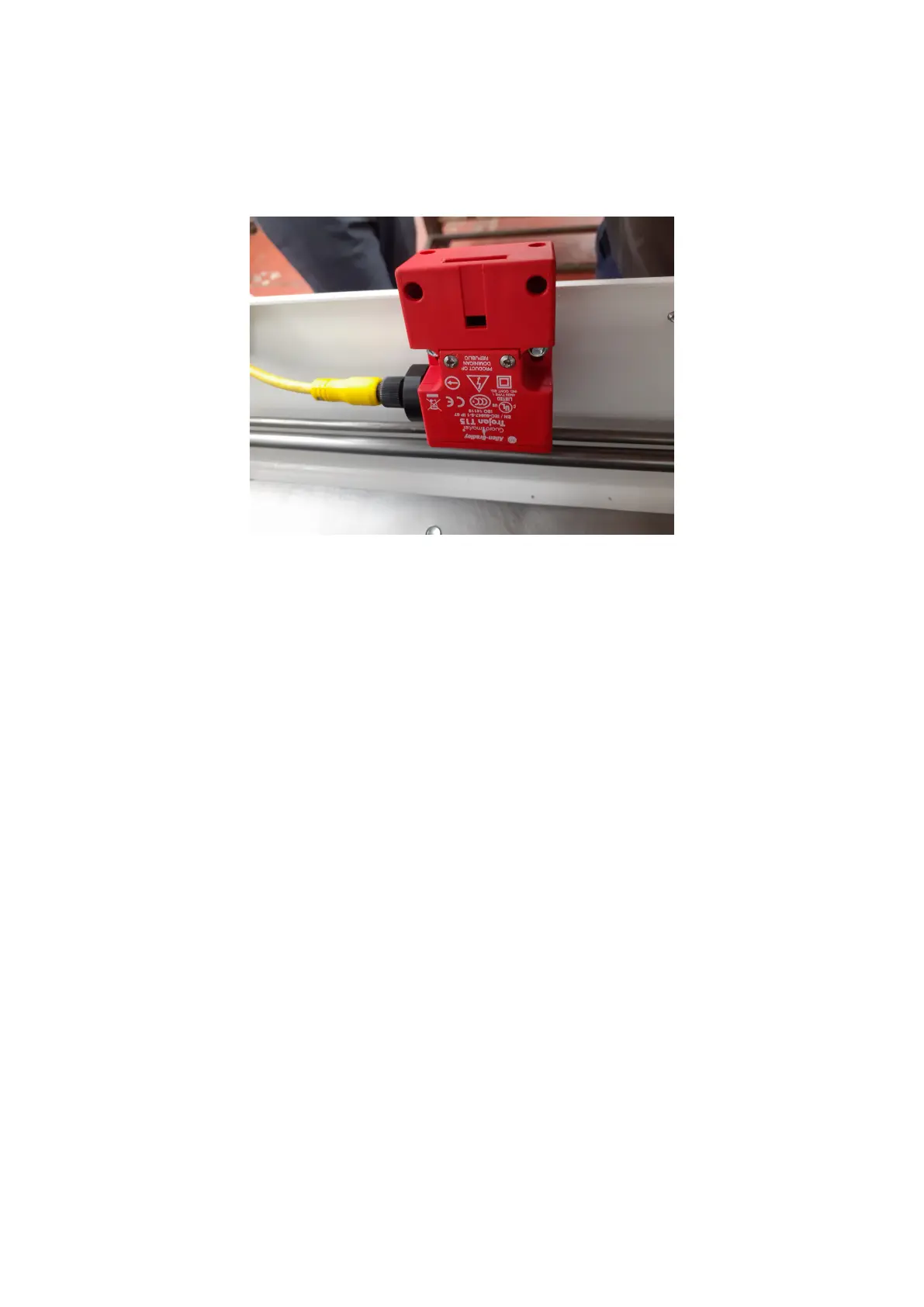

5.4 LOCATION OF GUARD SWITCH
Figure 23
This switch comes in two parts, (switch and actuator) and they are separately
mounted, the switch is fixed to the front apron of the Barfeed and the actuator is fixed
to the guard hood.
When the hood is closed the actuator locates in the switch and this will allow
electrical operations in the Barfeed to be carried out.
When the hood is open the actuator is removed from the switch and electrical
operations to the Barfeed are disabled.
**YOU ARE IN BREACH OF THE SAFETY LEGISLATIONS IF ANY SAFETY
DEVICE IS NOT SECURED OR IS MANUALLY OVER RIDDEN WHILST
ELECTICAL AND MECHANICAL OPERATIONS ARE BEING CARRIED OUT**
If there becomes an inherent problem with this component then contact us quoting
the part n
o
.
