7.4 LOCATION OF AIR PRESSURE REGULATOR

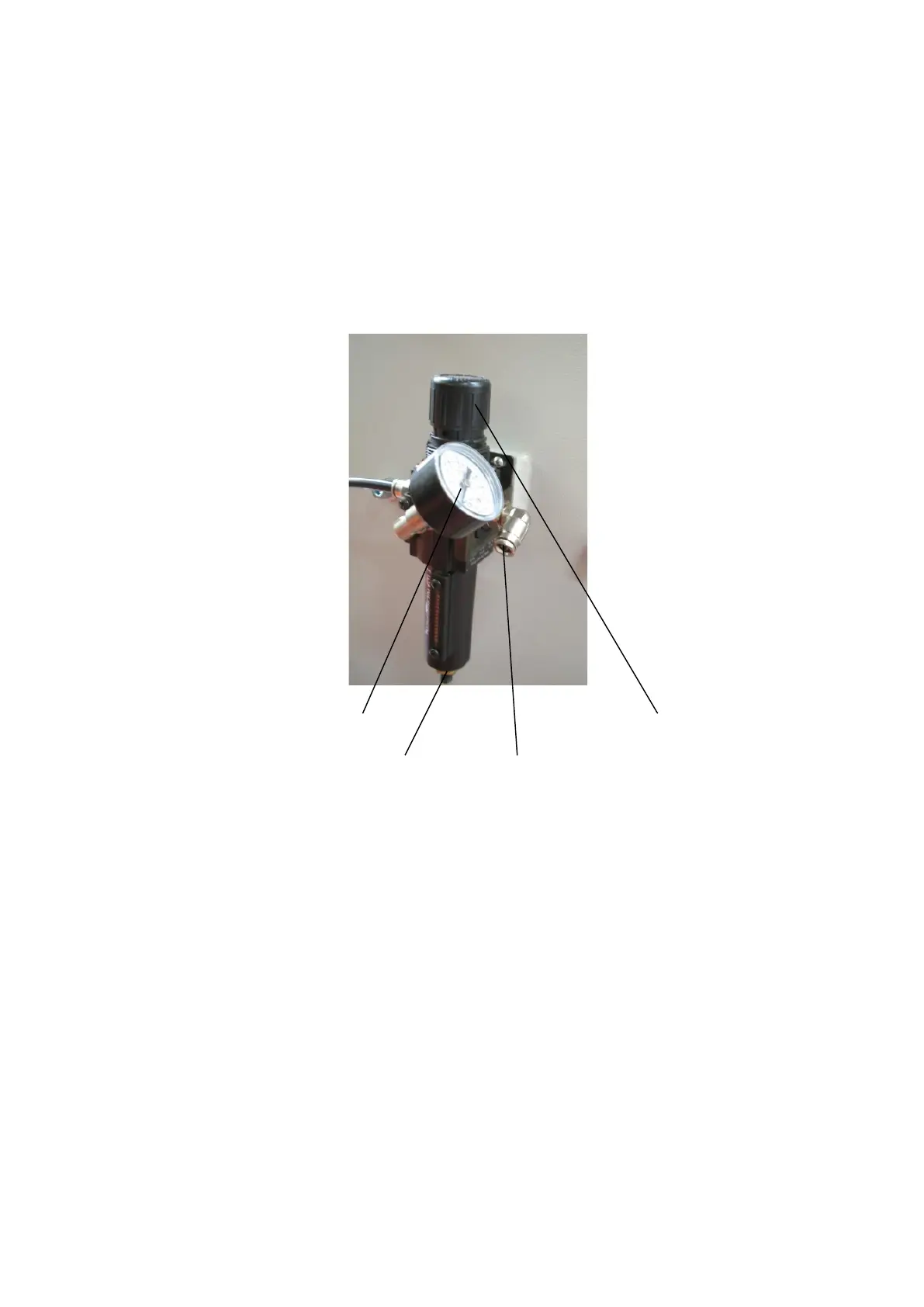

Figure 39
Pressure Gauge Air Pressure Adjuster
Air Bleeder Main Air Pressure Inlet
This Regulator is located at the Left-hand side of the stand viewed from the front of
Barfeed.
This regulator monitors the air supply that’s fed to the Barfeed, the regulator will filter
out any contamination or fluids that are entered into the air system and then
collectively hold to the bottom of the filter so then the Air Bleeder will frequently
discharge to atmosphere.
The Air Pressure Adjustment will adjust the air pressure to the Barfeed and can be
monitored by the Gauge.
The adjusted cap will need to be pulled up to unlock for adjustment, turning clockwise
will increase the air pressure and counter-clockwise to decrease the pressure.
The Pressure MUST be over 50psi (4 bar) to operate the Barfeed and is advised that
pressure is obtainable to operate at 80psi (6 bar) to coup with air fluctuation.
