4.6. CHANGING OR REMOVING THE PUSH ROD
The mechanical Pusher latch is designed so that when the push rod is in line with the
spindle the Push rod is latched to the main carriage therefore allowing insertion of
material to be fed through the collet section.
When the Insert Pusher is in line with the spindle the push rod will be detached from
the carriage therefore allowing insertion of material to be loaded into the spindle
section.
To change the push rod the slide must be in the specific position and the rear and
front latch are to be arranged as illustrated in figure 15, this can only be achieved
when the Barfeed is switched off via the isolator.

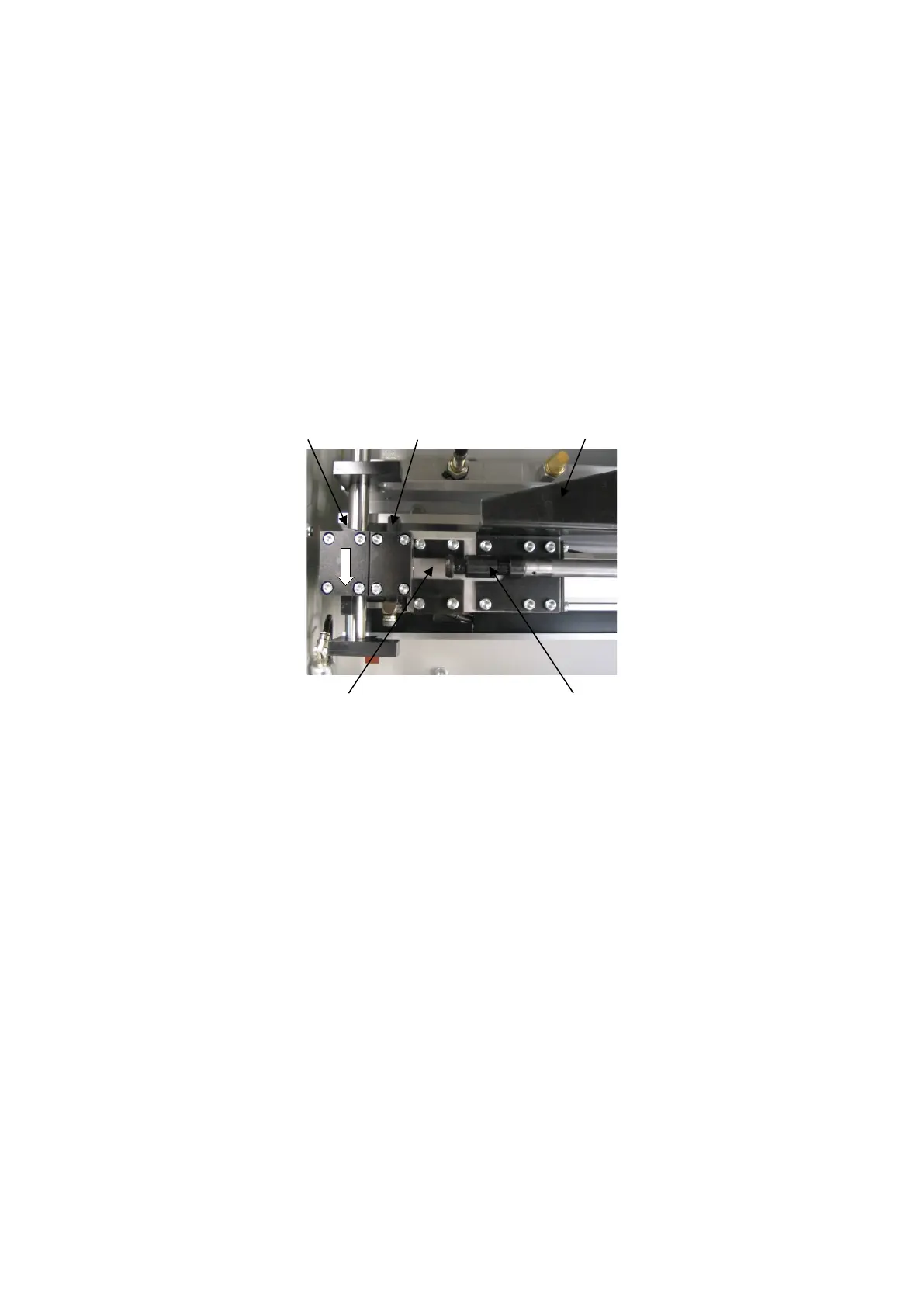

Rear Latch Front Latch Insert Pusher
Figure 15
Main Carriage Push Rod
