Hydrafeed Multifeed 65 - Cross Slide Sensors

21
5.2 LOCATION OF CROSS SLIDE SENSORS

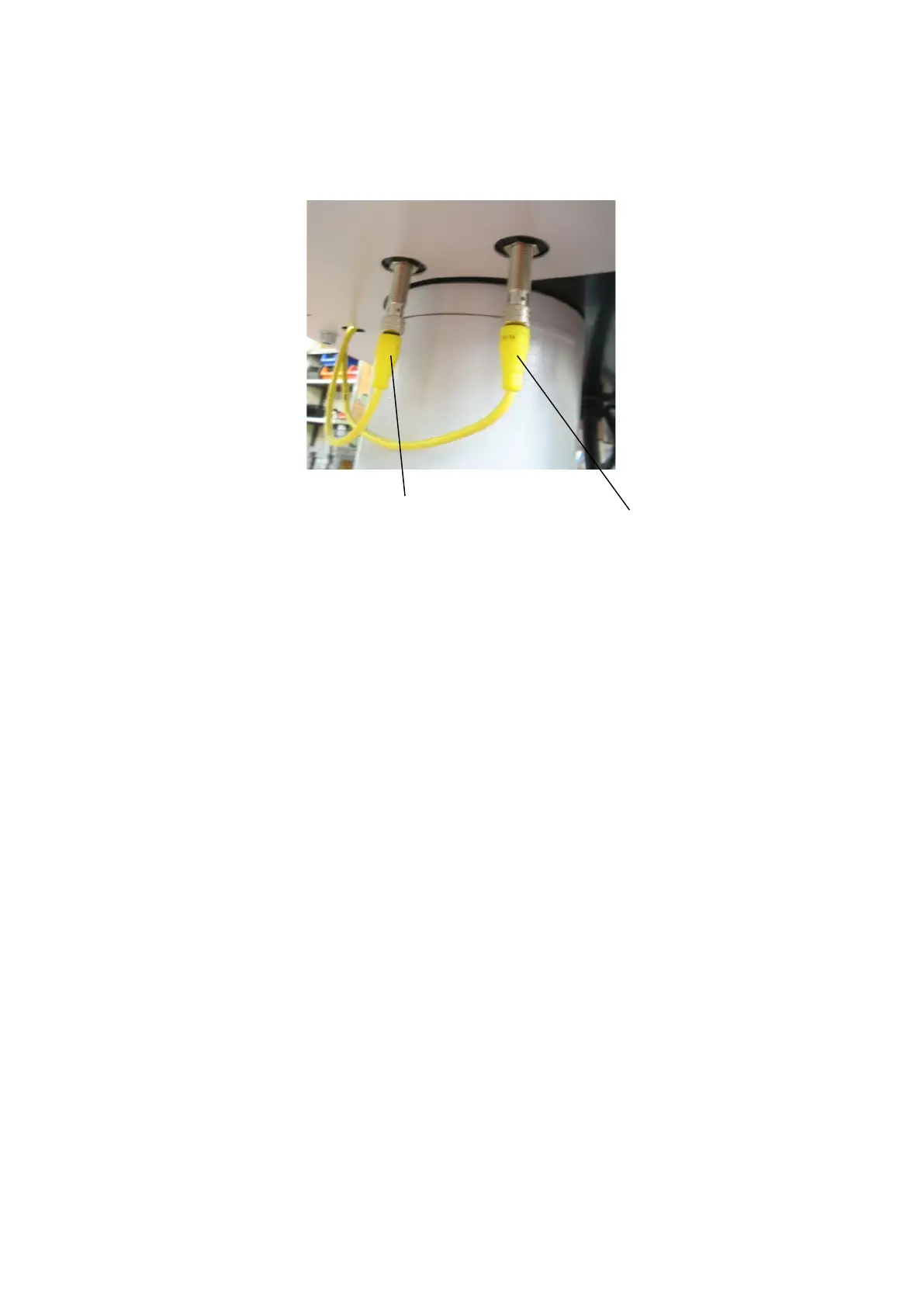

Figure 21
Cross Slide Out Sensor Cross Slide In Sensor
(X15 input) (X14 input)
Cross Slide Out Sensor: this sensor is only activated when the Insert Pusher is
aligned with the spindle centre line.
Cross Slide In Sensor: this sensor is only activated when the Main Pusher is aligned
with the spindle centre line.
