26

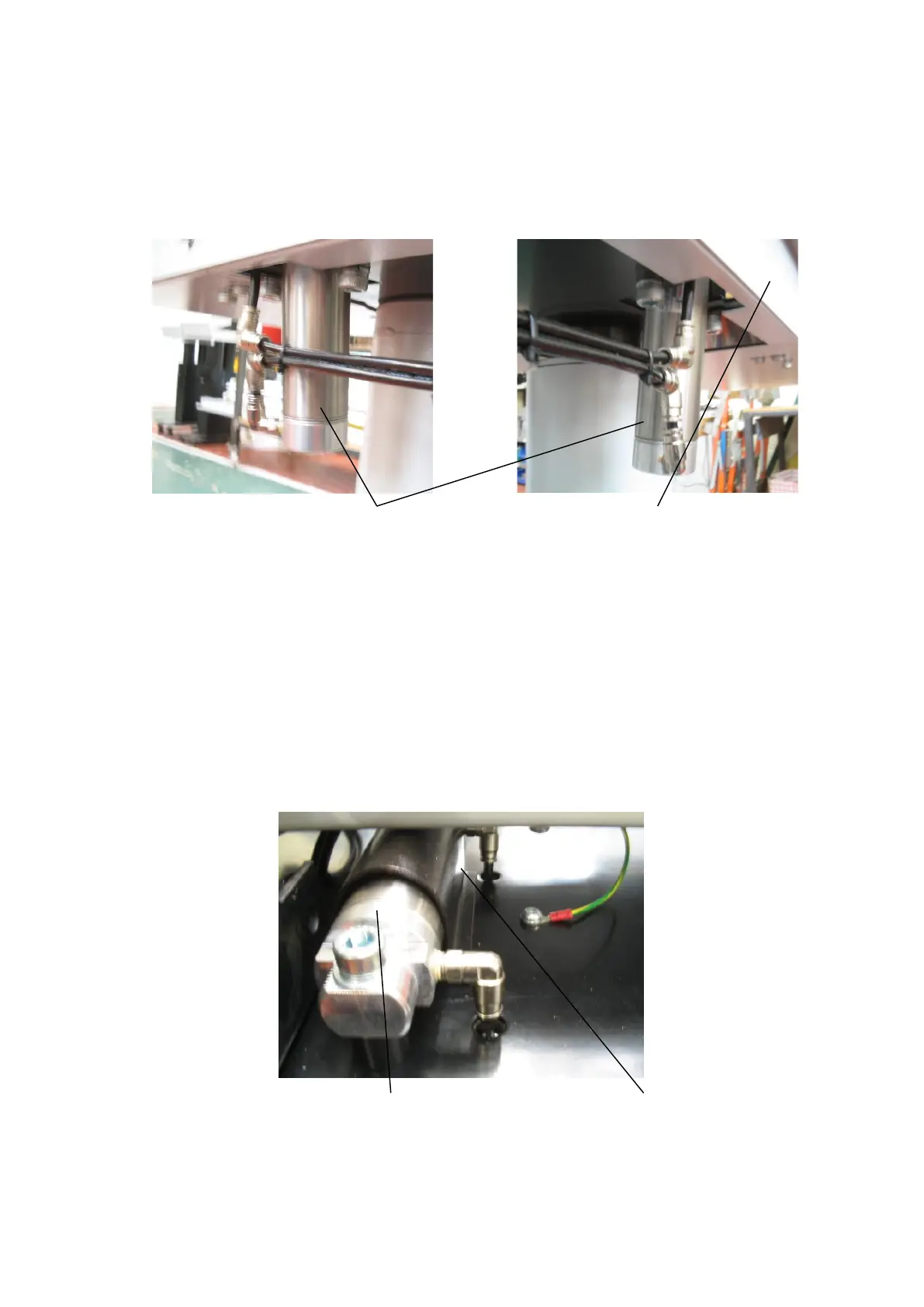

6.3 LOCATION OF LOADER CYLINDERS
Figure 29 Figure 30
Loader Cylinders Rear of Barfeed (below Magazine)
Part n
o
; HYDRAFEED
These Cylinders are located at the rear of the Barfeed below the Magazine, they are
capable of lifting 80mm diameter x 1500mm in length solid brass.
The valve that is located inside the stand (shown on page 24) at the rear can adjust
the speed at which the bar is loaded.
6.4 LOCATION OF CROSS SLIDE CYLINDER
Figure 31
Cross Slide Cylinder Protected cover
To Next Page
