25
Sensor 3
Last Component (E.O.B): This sensor indicates when the last component has been
fed out.
To determine the position of this sensor, the length of component is to be measured
or placed between these two sensors below, where the Ejected sensor is fixed (as
explain below) and the E.O.B sensor is adjusted.

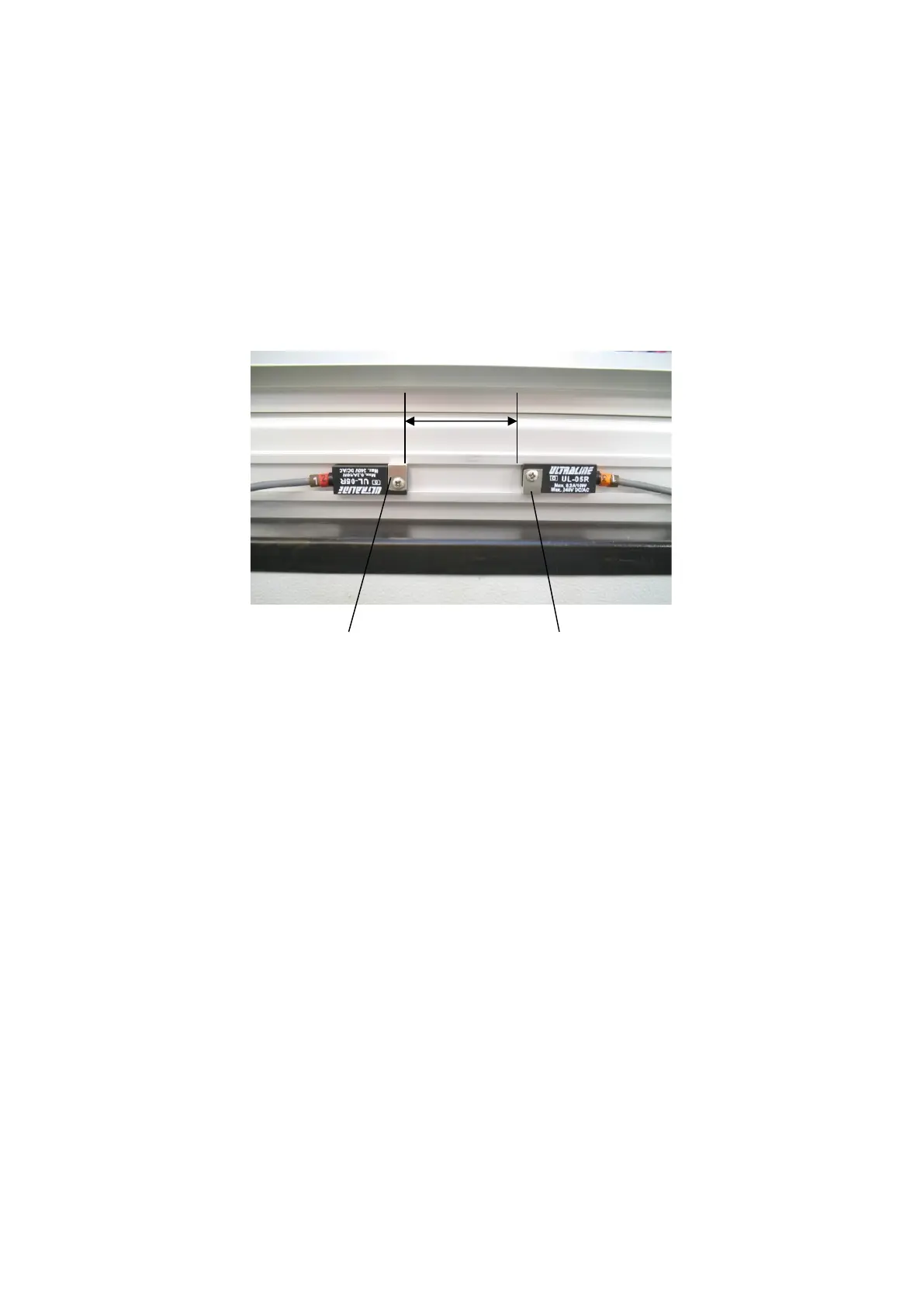

Figure 26
E.O.B sensor Eject sensor
Sensor 4
Eject Remnant Sensor: This sensor is set to position on installation and should never
be moved unless there are specific reasons for doing so.
This sensor is set to position where the push rod is approximately 5mm proud of the
collet/chuck face. The Main push rod will only push as far forward to this position in
manual and auto cycle.
Sensor 5
Pusher Fully Forward: this sensor is set directly below the Pusher carriage when its
at full stroke position then checked on installation and MUST not be moved after.
There are occasions when the Insert pusher fully forward sensor is the Main pusher
eject sensor, this is due to spindle lengths, collet thickness and chuck jaws, and so
the Main pusher may need to travel the full length of the cylinder.
Component Length
