27
Cross Slide cylinder is located on the base plate below the extruded slide
The valve that is located inside the stand (shown below) at the rear can adjust the
speed at which the Slide traverses.

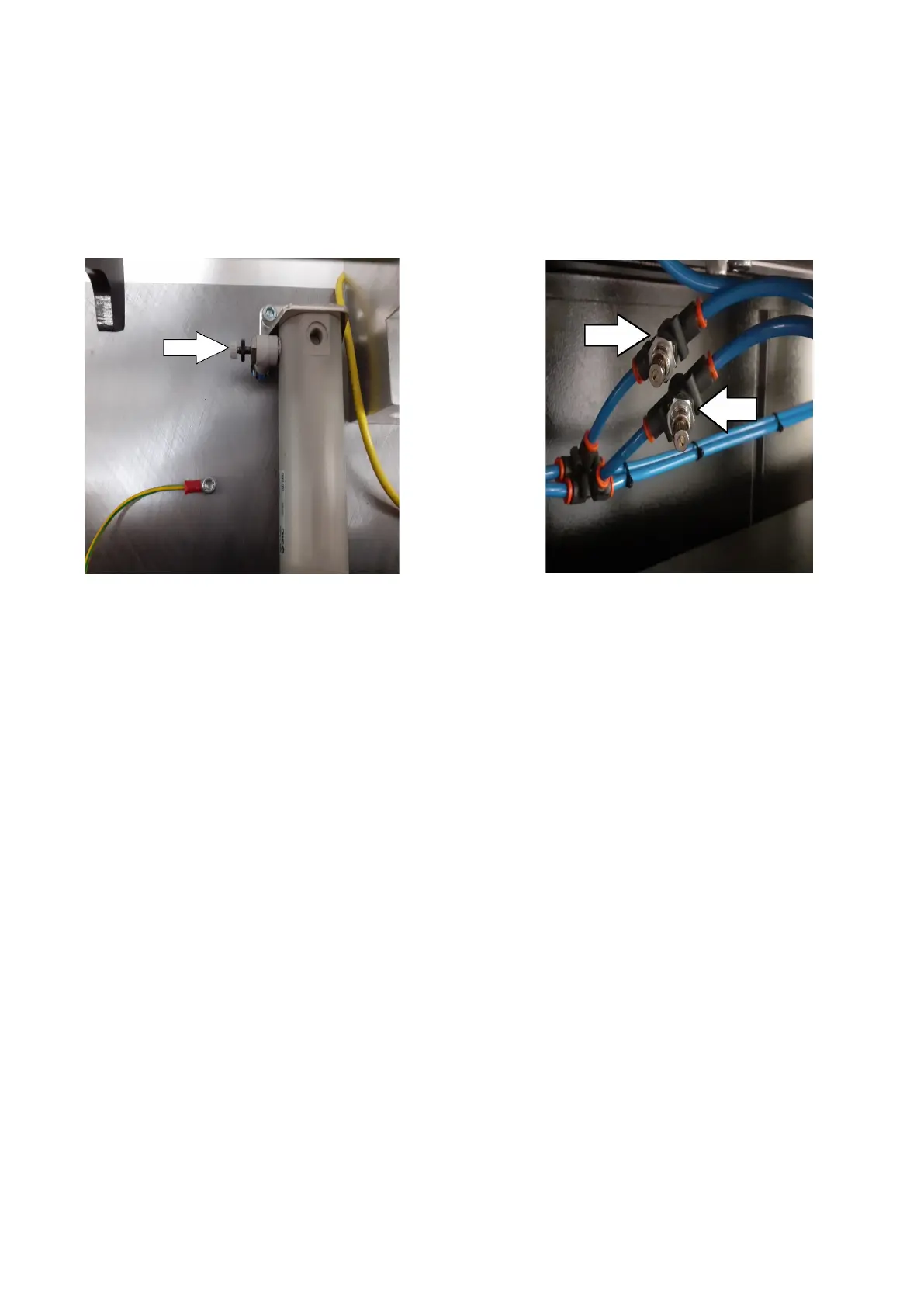

7.1 LOCATION OF CROSS SLIDE AND CAM ADJUSTMENT VALVES
Figure 35
CROSS SLIDE VALVE
Turning valves clockwise decreases the velocity of operation.
Turning valves counter-clockwise increases the velocity of operation.
CAM VALVE
There are two valves for the cams one to increase/ decrease the flow for the cam to
go up. One to increase/ decrease the flow for the cam to go down.
